MNA810S - MOBILE NETWORKS AND ARCHITECTURES - 1ST OPP - JUNE 2023 |
|
|

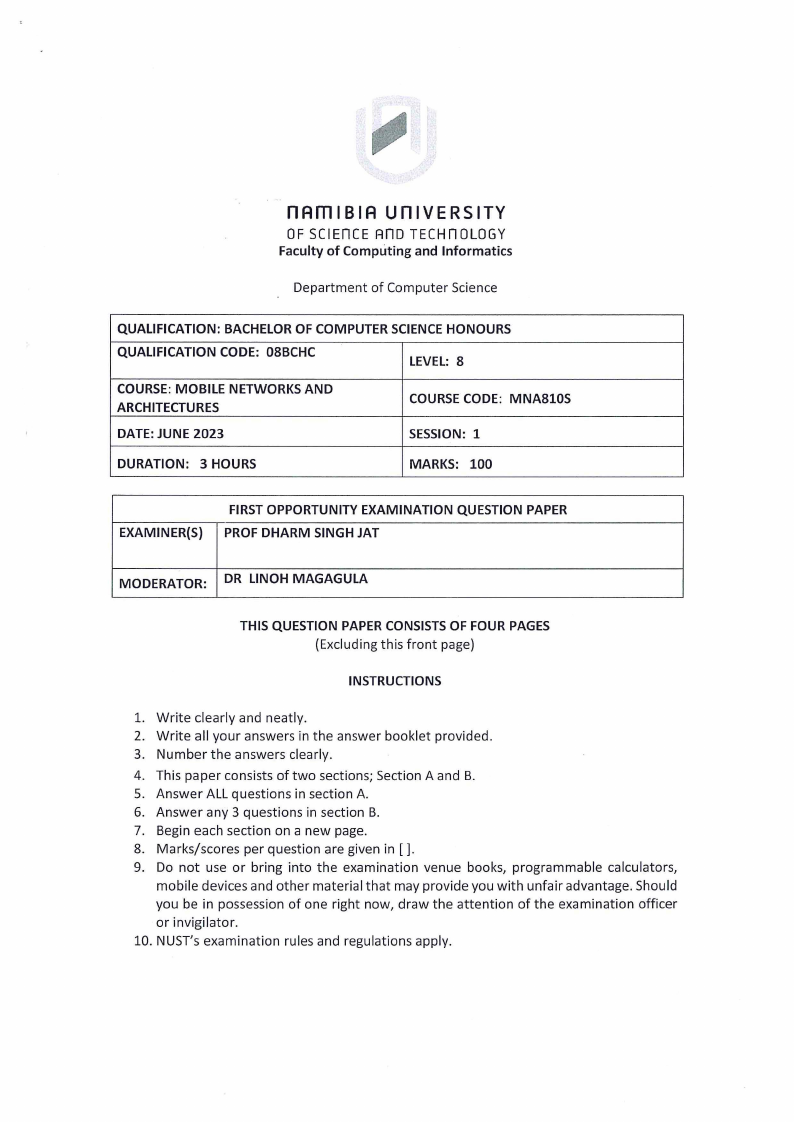

1 Page 1 |
▲back to top |
nAmlBIA unlVERSITY
0 F SCIEn CE Ano TECHn OLOGY
Faculty of Computing and Informatics
Department of Computer Science
QUALIFICATION: BACHELOR OF COMPUTER SCIENCE HONOURS
QUALIFICATION CODE: 08BCHC
LEVEL: 8
COURSE: MOBILE NETWORKS AND
ARCHITECTURES
DATE: JUNE 2023
COURSE CODE: MNA810S
SESSION: 1
DURATION: 3 HOURS
MARKS: 100
EXAMINER($)
FIRST OPPORTUNITY EXAMINATION QUESTION PAPER
PROF DHARM SINGH JAT
MODERATOR: DR LINOH MAGAGULA
THIS QUESTION PAPER CONSISTS OF FOUR PAGES
(Excluding this front page)
INSTRUCTIONS
1. Write clearly and neatly.
2. Write all your answers in the answer booklet provided.
3. Number the answers clearly.
4. This paper consists of two sections; Section A and B.
5. Answer ALL questions in section A.
6. Answer any 3 questions in section B.
7. Begin each section on a new page.
8. Marks/scores per question are given in [ ].
9. Do not use or bring into the examination venue books, programmable calculators,
mobile devices and other material that may provide you with unfair advantage. Should
you be in possession of one right now, draw the attention of the examination officer
or invigilator.
10. NUST's examination rules and regulations apply.
|
|

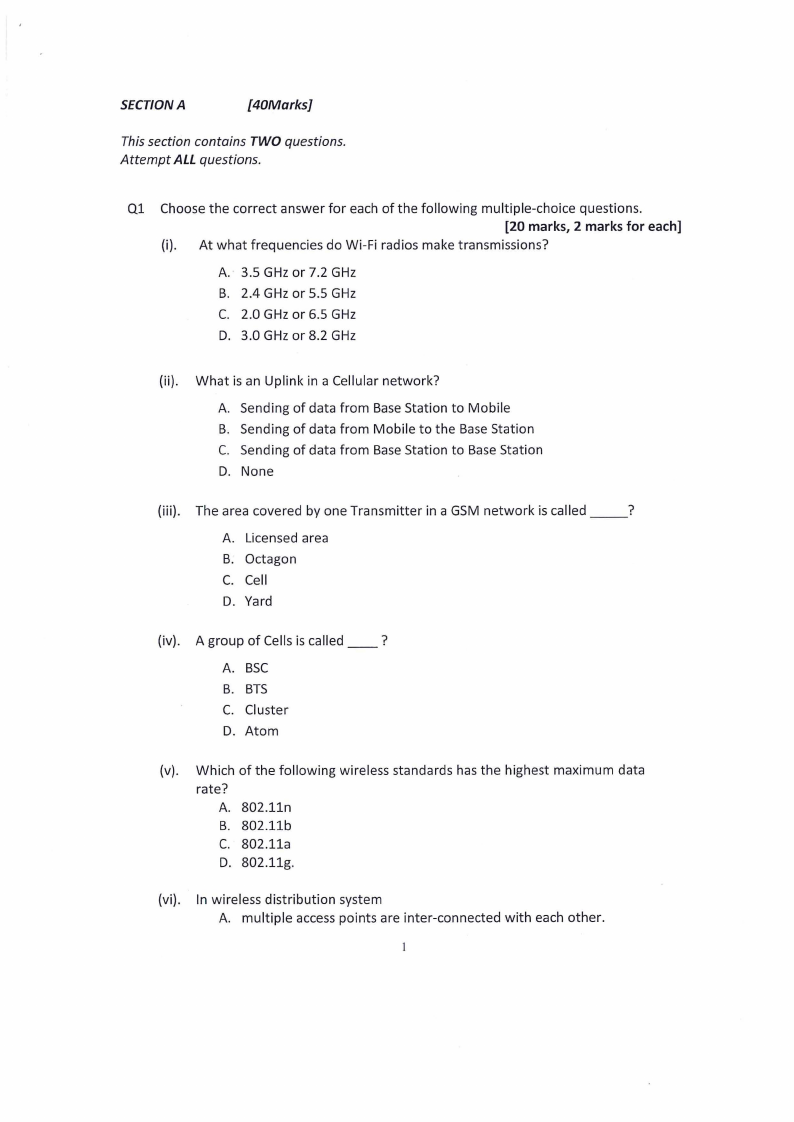

2 Page 2 |
▲back to top |
SECT/ONA
[40Marks]
This section contains TWO questions.
Attempt All questions.
Ql Choose the correct answer for each of the following multiple-choice questions.
[20 marks, 2 marks for each]
(i). At what frequencies do Wi-Fi radios make transmissions?
A.· 3.5GHzor7.2GHz
B. 2.4 GHz or 5.5 GHz
C. 2.0 GHz or 6.5 GHz
D. 3.0 GHz or 8.2 GHz
(ii). What is an Uplink in a Cellular network?
A. Sending of data from Base Station to Mobile
B. Sending of data from Mobile to the Base Station
C. Sending of data from Base Station to Base Station
D. None
(iii). The area covered by one Transmitter in a GSM network is called __ ?
A. Licensed area
B. Octagon
C. Cell
D. Yard
(iv). A group of Cells is called __ ?
A. BSC
B. BTS
C. Cluster
D. Atom
(v). Which of the following wireless standards has the highest maximum data
rate?
A. 802.lln
B. 802.llb
C. 802.lla
D. 802.llg.
(vi). In wireless distribution system
A. multiple access points are inter-connected with each other.
|
|

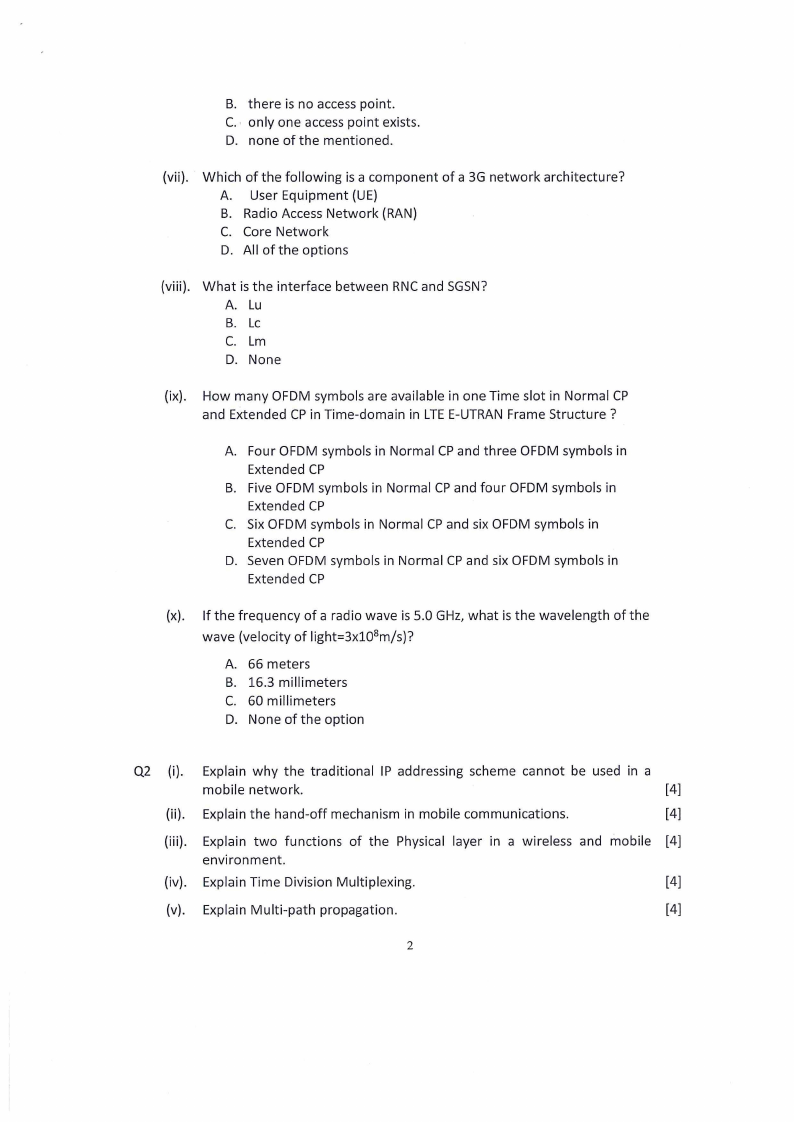

3 Page 3 |
▲back to top |
B. there is no access point.
C. · only one access point exists.
D. none of the mentioned.
{vii). Which of the following is a component of a 3G network architecture?
A. User Equipment {UE)
B. Radio Access Network (RAN)
C. Core Network
D. All of the options
{viii).
What is the interface between RNCand SGSN?
A. Lu
B. Le
C. Lm
D. None
{ix). How many OFDM symbols are available in one Time slot in Normal CP
and Extended CP in Time-domain in LTEE-UTRAN Frame Structure?
A. Four OFDM symbols in Normal CP and three OFDM symbols in
Extended CP
B. Five OFDM symbols in Normal CP and four OFDM symbols in
Extended CP
C. Six OFDM symbols in Normal CP and six OFDM symbols in
Extended CP
D. Seven OFDM symbols in Normal CP and six OFDM symbols in
Extended CP
{x). If the frequency of a radio wave is 5.0 GHz, what is the wavelength of the
wave (velocity of light=3x10 8m/s)?
A. 66 meters
B. 16.3 millimeters
C. 60 millimeters
D. None of the option
Q2 (i).
{ii).
Explain why the traditional IP addressing scheme cannot be used in a
mobile network.
[4)
Explain the hand-off mechanism in mobile communications.
[4)
{iii). Explain two functions of the Physical layer in a wireless and mobile [4]
environment.
{iv). Explain Time Division Multiplexing.
[4]
{v). Explain Multi-path propagation.
[4]
2
|
|

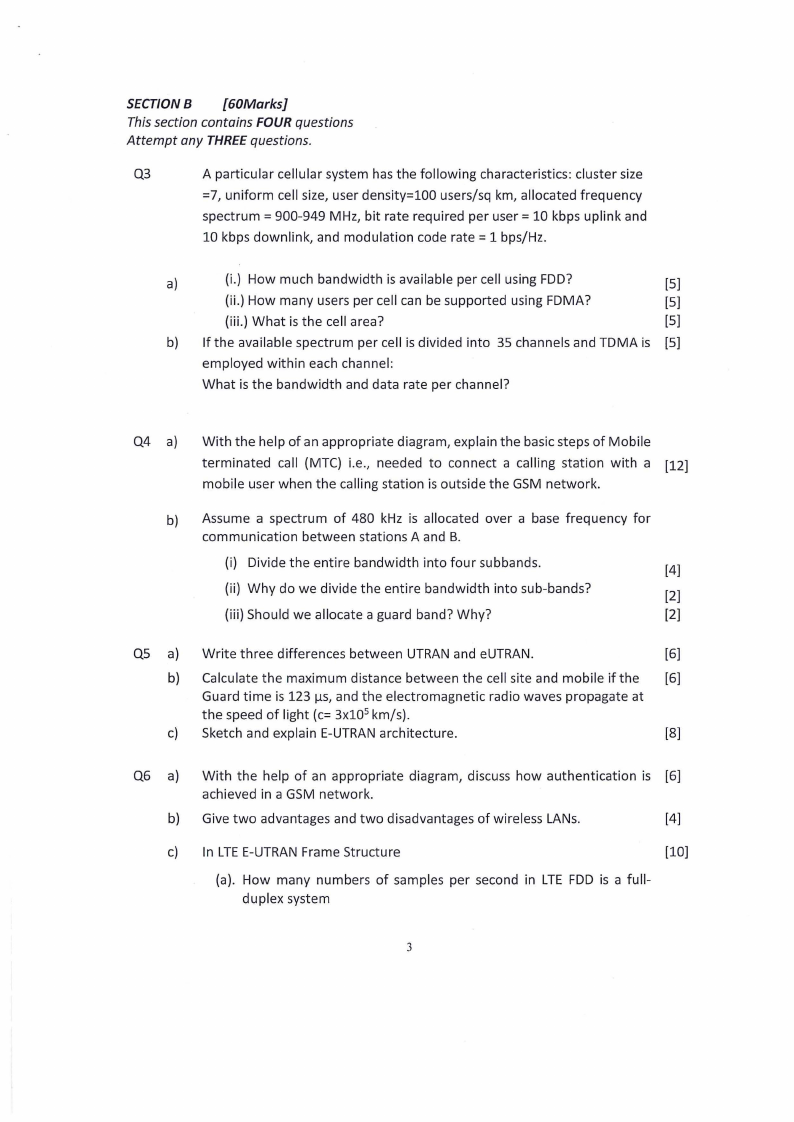

4 Page 4 |
▲back to top |
SECTIONB [60Marks]
Thissection contains FOUR questions
Attempt any THREEquestions.
Q3
A particular cellular system has the following characteristics: cluster size
=7, uniform cell size, user density=lOO users/sq km, allocated frequency
spectrum= 900-949 MHz, bit rate required per user= 10 kbps uplink and
10 kbps downlink, and modulation code rate= 1 bps/Hz.
a)
(i.) How much bandwidth is available per cell using FDD?
[S]
(ii.) How many users per cell can be supported using FDMA?
[S]
(iii.) What is the cell area?
[S]
b) If the available spectrum per cell is divided into 35 channels and TOMA is [5]
employed within each channel:
What is the bandwidth and data rate per channel?
Q4 a)
With the help of an appropriate diagram, explain the basic steps of Mobile
terminated call (MTC) i.e., needed to connect a calling station with a [12]
mobile user when the calling station is outside the GSM network.
b) Assume a spectrum of 480 kHz is allocated over a base frequency for
communication between stations A and B.
(i) Divide the entire bandwidth into four subbands.
[4)
(ii) Why do we divide the entire bandwidth into sub-bands?
[2)
(iii) Should we allocate a guard band? Why?
[2)
QS a) Write three differences between UTRAN and eUTRAN.
[6)
b) Calculate the maximum distance between the cell site and mobile if the [6)
Guard time is 123 µs, and the electromagnetic radio waves propagate at
the speed of light (c= 3x105 km/s).
c) Sketch and explain E-UTRANarchitecture.
[8)
Q6 a)
b)
With the help of an appropriate diagram, discuss how authentication is [6)
achieved in a GSM network.
Give two advantages and two disadvantages of wireless LANs.
[4]
c) In LTEE-UTRANFrame Structure
[10)
(a). How many numbers of samples per second in LTE FDD is a full-
duplex system
3
|
|
5 Page 5 |
▲back to top |
(b). How many Sub-frame are present in a single Frame-Structure, and
what is the size of each Sub-Frame in time-domain?
(c). How many Time-Slot are present in Sub-Frame?
(d). What is Cyclic Prefix(CP) in Frame-Structure?
(e). How many OFDM symbols are availab.le in 1 Time slot in Normal CP
and Extended CP? In Time-domain?
GOOD LUCK!
4
