MMO702S - MATHEMATICAL MODELLING 2 - 2ND OPP - JANUARY 2024 |
|
|
1 Page 1 |
▲back to top |

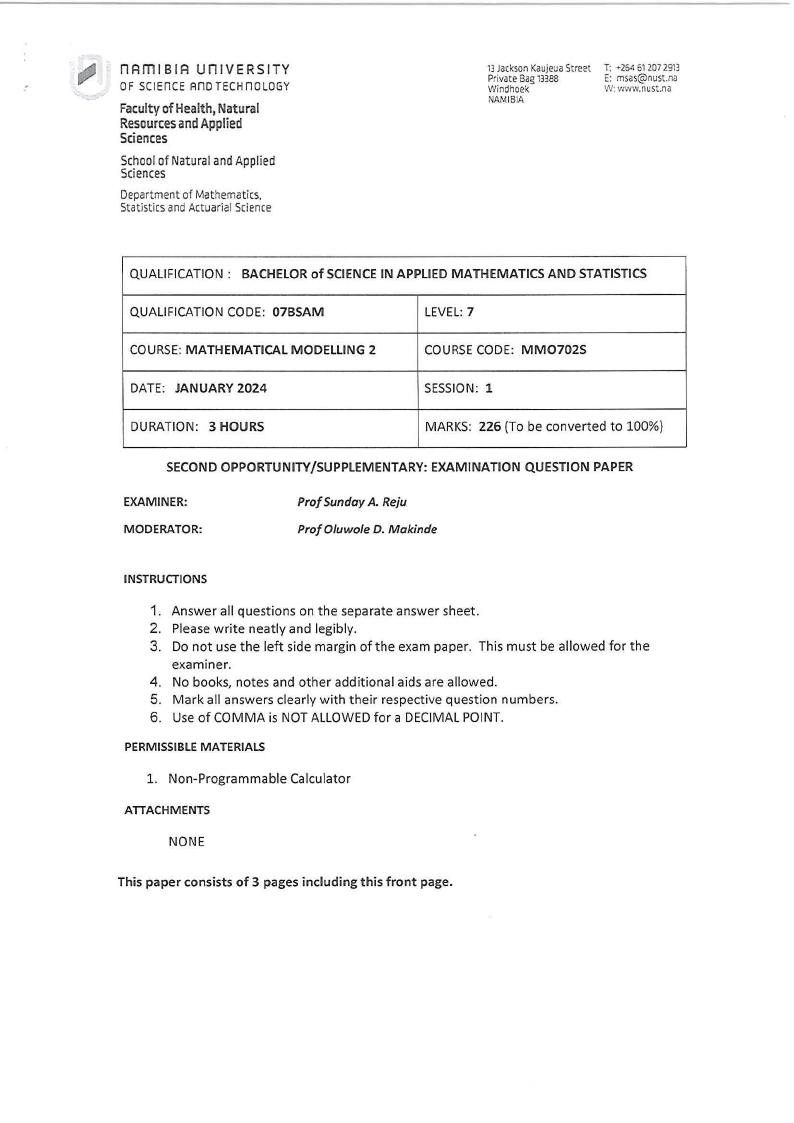

nAmlBIA UnlVERSITY
_,
OF SCIEnCEAnDTECHnOLOGY
Facultyof Health,Natural
ResourceasndApplied
Sciences
Schoolof NaturalandApplied
Sciences
Departmentof Mathematics,
Statisticsand ActuarialScience
13Jackson KaujeuaStreet
Private Bag13388
Windhoei<
NAMIBIA
T: •264 612072913
E: msas@nust.na
W: www.nus:.na
QUALIFICATION : BACHELOR of SCIENCE IN APPLIED MATHEMATICS AND STATISTICS
QUALIFICATIONCODE: 07BSAM
LEVEL:7
COURSE:MATHEMATICAL MODELLING 2
COURSECODE: MMO702S
DATE: JANUARY 2024
SESSION: 1
DURATION: 3 HOURS
MARKS: 226 (To be converted to 100%)
SECOND OPPORTUNITY/SUPPLEMENTARY: EXAMINATION QUESTION PAPER
EXAMINER:
MODERATOR:
Prof Sunday A. Reju
Prof Oluwole D. Makinde
INSTRUCTIONS
1. Answer all questions on the separate answer sheet.
2. Please write neatly and legibly.
3. Do not use the left side margin of the exam paper. This must be allowed for the
examiner.
4. No books, notes and other additional aids are allowed.
5. Mark all answers clearly with their respective question numbers.
6. Use of COMMA is NOT ALLOWED for a DECIMAL POINT.
PERMISSIBLE MATERIALS
1. Non-Programmable Calculator
ATTACHMENTS
NONE
This paper consists of 3 pages including this front page.
|
|
2 Page 2 |
▲back to top |

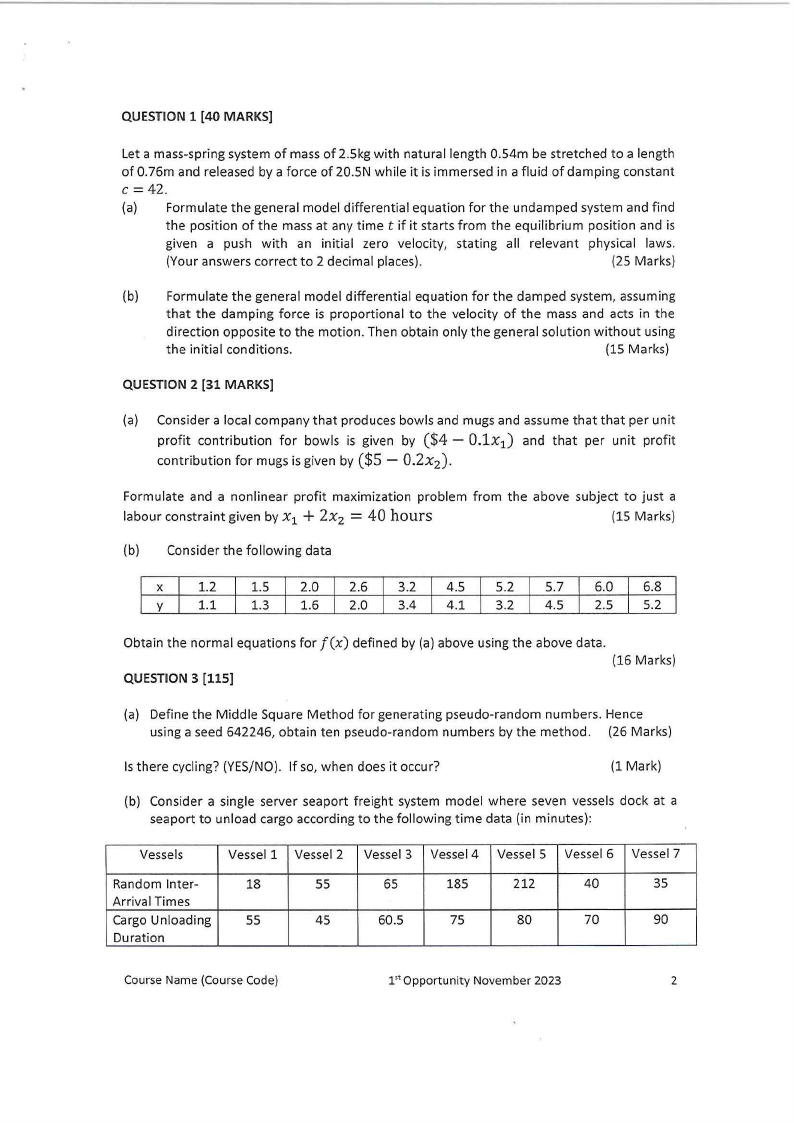

QUESTION 1 (40 MARKS]
Let a mass-spring system of mass of 2.5kg with natural length 0.54m be stretched to a length
of 0.76m and released by a force of 20.5N while it is immersed in a fluid of damping constant
= C 42.
(a) Formulate the general model differential equation for the undamped system and find
the position of the mass at any time t if it starts from the equilibrium position and is
given a push with an initial zero velocity, stating all relevant physical laws.
(Your answers correct to 2 decimal places).
(25 Marks)
(b) Formulate the general model differential equation for the damped system, assuming
that the damping force is proportional to the velocity of the mass and acts in the
direction opposite to the motion. Then obtain only the general solution without using
the initial conditions.
(15 Marks)
QUESTION 2 (31 MARKS]
(a) Consider a local company that produces bowls and mugs and assume that that per unit
profit contribution for bowls is given by ($4 - 0.1x 1) and that per unit profit
contribution for mugs is given by ($5 - 0.2x 2 ).
Formulate and a nonlinear profit maximization problem from the above subject to just a
+ = labour constraint given by x 1 2x 2 40 hours
(15 Marks)
(b) Consider the following data
X
1.2
1.5
2.0
2.6
3.2
4.5
5.2
5.7
6.0
6.8
y
1.1
1.3
1.6
2.0
3.4 4.1
3.2
4.5
2.5 5.2
Obtain the normal equations for f(x) defined by (a) above using the above data.
(16 Marks)
QUESTION 3 (115)
(a) Define the Middle Square Method for generating pseudo-random numbers. Hence
using a seed 642246, obtain ten pseudo-random numbers by the method. (26 Marks)
Is there cycling? (YES/NO). If so, when does it occur?
(1 Mark)
(b) Consider a single server seaport freight system model where seven vessels dock at a
seaport to unload cargo according to the following time data (in minutes):
Vessels
Vessel 1 Vessel 2 Vessel 3 Vessel 4 Vessel 5 Vessel 6 Vessel 7
Random Inter-
18
55
65
185
212
40
35
Arrival Times
Cargo Unloading
55
45
60.5
75
80
70
90
Duration
Course Name (Course Code)
1" Opportunity November 2023
2
|
|
3 Page 3 |
▲back to top |

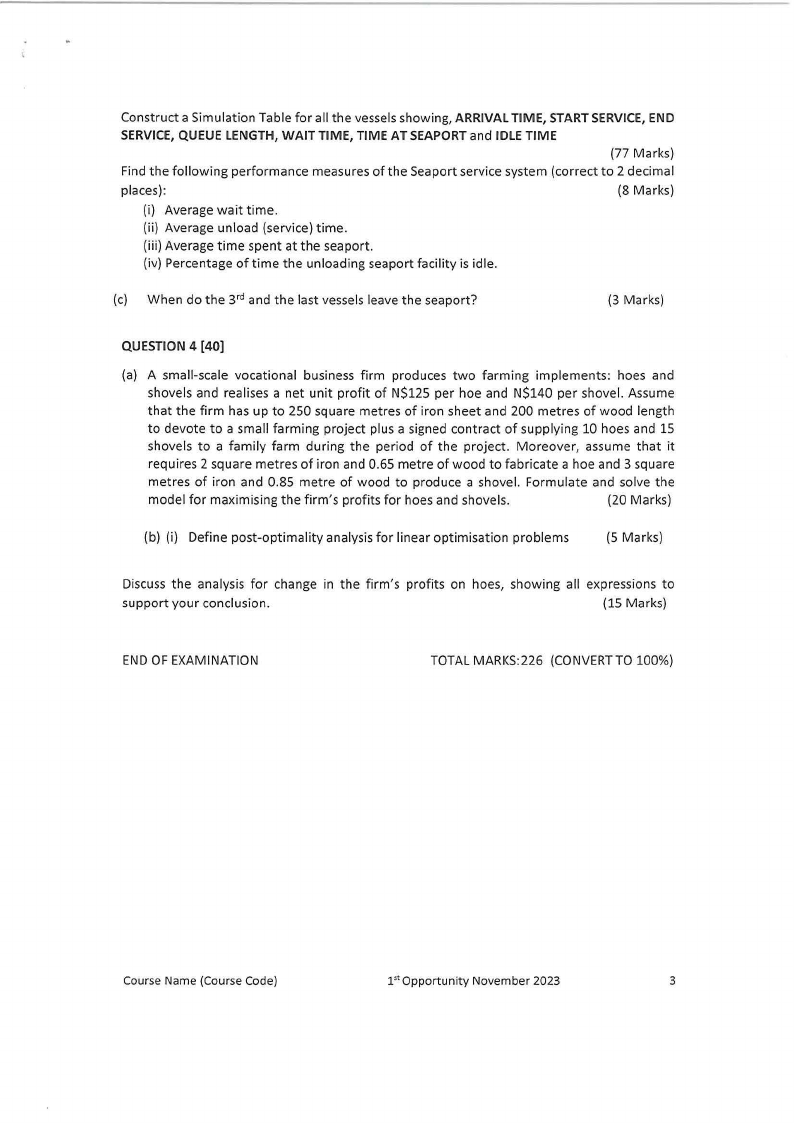

Construct a Simulation Table for all the vessels showing, ARRIVAL TIME, START SERVICE, END
SERVICE, QUEUE LENGTH, WAIT TIME, TIME AT SEAPORT and IDLE TIME
(77 Marks)
Find the following performance measures of the Seaport service system (correct to 2 decimal
places):
(8 Marks)
(i) Average wait time.
(ii) Average unload (service) time.
(iii) Average time spent at the seaport.
(iv) Percentage of time the unloading seaport facility is idle.
(c) When do the 3rd and the last vessels leave the seaport?
(3 Marks)
QUESTION 4 [40]
(a) A small-scale vocational business firm produces two farming implements: hoes and
shovels and realises a net unit profit of N$125 per hoe and N$140 per shovel. Assume
that the firm has up to 250 square metres of iron sheet and 200 metres of wood length
to devote to a small farming project plus a signed contract of supplying 10 hoes and 15
shovels to a family farm during the period of the project. Moreover, assume that it
requires 2 square metres of iron and 0.65 metre of wood to fabricate a hoe and 3 square
metres of iron and 0.85 metre of wood to produce a shovel. Formulate and solve the
model for maximising the firm's profits for hoes and shovels.
(20 Marks)
(b) (i) Define post-optimality analysis for linear optimisation problems
(5 Marks)
Discuss the analysis for change in the firm's profits on hoes, showing all expressions to
support your conclusion.
(15 Marks)
END OF EXAMINATION
TOTAL MARKS:226 (CONVERTTO 100%)
CourseName (CourseCode)
l't Opportunity November 2023
3
