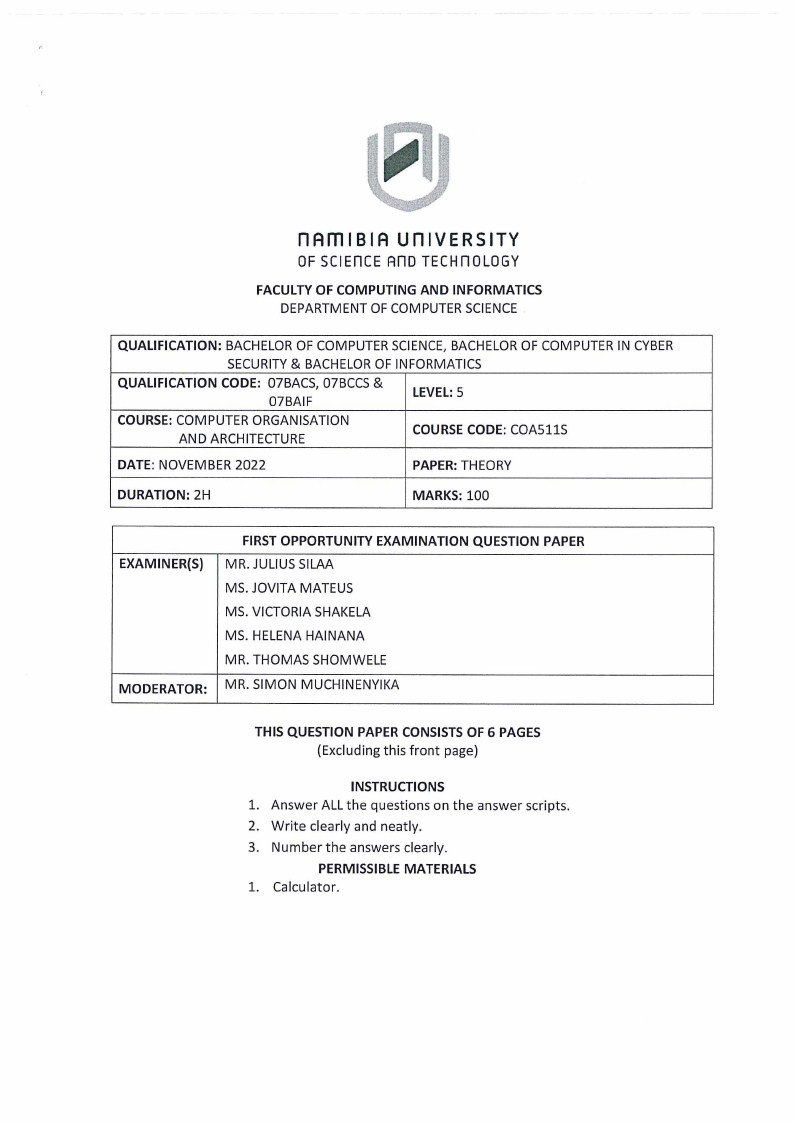

nAmlBIA UnlVERSITY
OF SCIEnCE Ano TECHnOLOGY
FACULTY OF COMPUTING AND INFORMATICS
DEPARTMENT OF COMPUTER SCIENCE
QUALIFICATION: BACHELOR OF COMPUTER SCIENCE, BACHELOR OF COMPUTER IN CYBER
SECURITY & BACHELOR OF INFORMATICS
QUALIFICATION CODE: 07BACS, 07BCCS &
07BAIF
LEVEL: 5
COURSE: COMPUTER ORGANISATION
AND ARCHITECTURE
COURSE CODE: COA511S
DATE: NOVEMBER 2022
PAPER: THEORY
DURATION: 2H
MARKS: 100
EXAMINER(S)
MODERATOR:
FIRST OPPORTUNITY EXAMINATION QUESTION PAPER
MR. JULIUS SILAA
MS. JOVITA MATEUS
MS. VICTORIA SHAKELA
MS. HELENA HAINANA
MR. THOMAS SHOMWELE
MR. SIMON MUCHINENYIKA
THIS QUESTION PAPER CONSISTS OF 6 PAGES
(Excluding this front page)
INSTRUCTIONS
1. Answer ALL the questions on the answer scripts.
2. Write clearly and neatly.
3. Number the answers clearly.
PERMISSIBLE MATERIALS
1. Calculator.
|
|

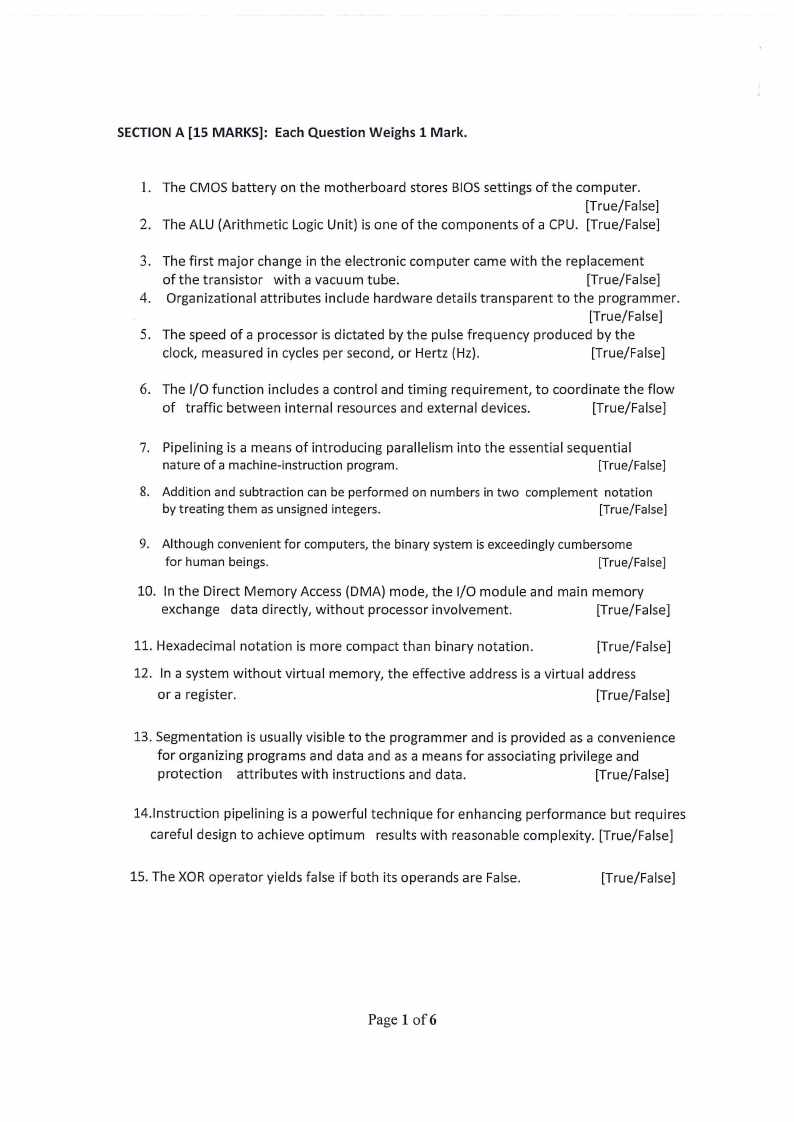

2 Page 2 |
▲back to top |
SECTION A [15 MARKS]: Each Question Weighs 1 Mark.
1. The CMOS battery on the motherboard stores BIOSsettings of the computer.
[True/False]
2. The ALU (Arithmetic Logic Unit) is one of the components of a CPU. [True/False]
3. The first major change in the electronic computer came with the replacement
of the transistor with a vacuum tube.
[True/False]
4. Organizational attributes include hardware details transparent to the programmer.
[True/False]
5. The speed of a processor is dictated by the pulse frequency produced by the
clock, measured in cycles per second, or Hertz (Hz).
[True/False]
6. The 1/0 function includes a control and timing requirement, to coordinate the flow
of traffic between internal resources and external devices.
[True/False]
7. Pipelining is a means of introducing parallelism into the essential sequential
nature of a machine-instruction program.
[True/False]
8. Addition and subtraction can be performed on numbers in two complement notation
by treating them as unsigned integers.
[True/False]
9. Although convenient for computers, the binary system is exceedinglycumbersome
for human beings.
[True/False]
10. In the Direct Memory Access (OMA) mode, the 1/0 module and main memory
exchange data directly, without processor involvement.
[True/False]
11. Hexadecimal notation is more compact than binary notation.
[True/False]
12. In a system without virtual memory, the effective address is a virtual address
or a register.
[True/False]
13. Segmentation is usually visible to the programmer and is provided as a convenience
for organizing programs and data and as a means for associating privilege and
protection attributes with instructions and data.
[True/False]
14.lnstruction pipelining is a powerful technique for enhancing performance but requires
careful design to achieve optimum results with reasonable complexity. [True/False]
15. The XOR operator yields false if both its operands are False.
[True/False]
Page 1 of 6
|
|

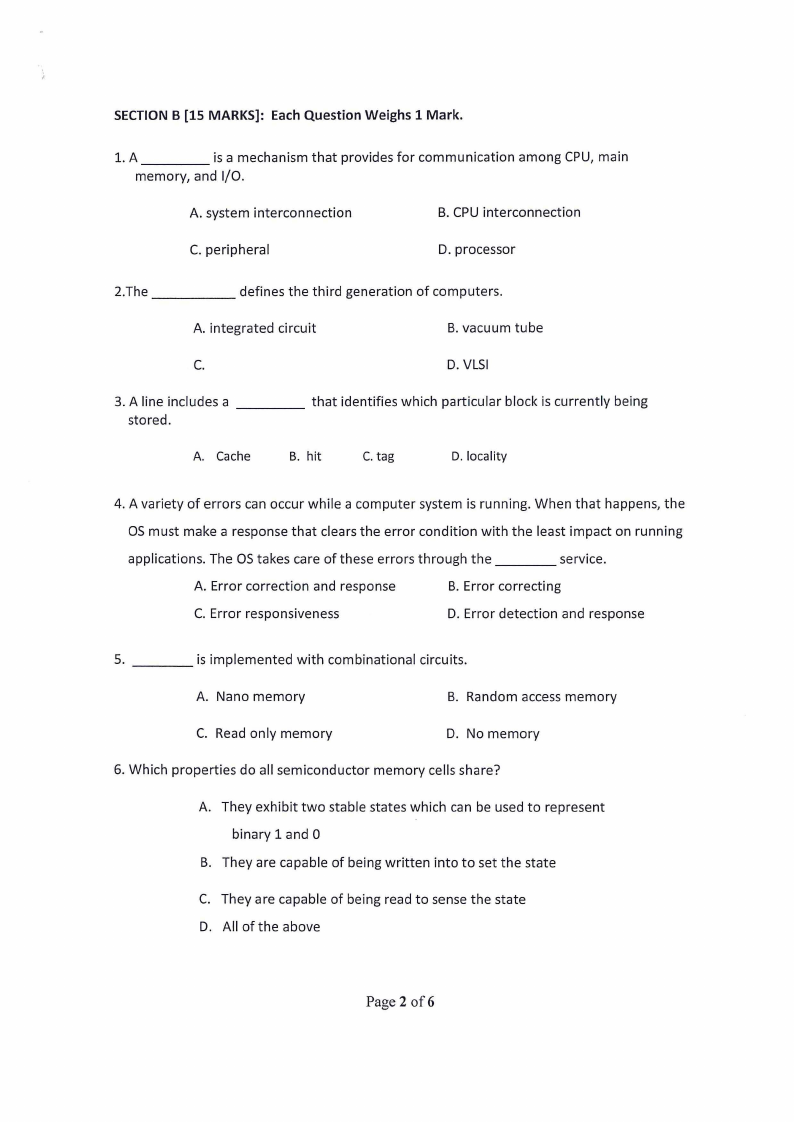

3 Page 3 |
▲back to top |
SECTION B [15 MARKS]: Each Question Weighs 1 Mark.
1. A ____
is a mechanism that provides for communication among CPU, main
memory, and 1/0.
A. system interconnection
B. CPU interconnection
C. peripheral
D. processor
2.The _____
defines the third generation of computers.
A. integrated circuit
B. vacuum tube
C.
D. VLSI
3. A line includes a ____
stored.
that identifies which particular block is currently being
A. Cache
B. hit
C. tag
D. locality
4. A variety of errors can occur while a computer system is running. When that happens, the
OS must make a response that clears the error condition with the least impact on running
applications. The OStakes care of these errors through the ____
service.
A. Error correction and response
B. Error correcting
C. Error responsiveness
D. Error detection and response
5. ____
is implemented with combinational circuits.
A. Nano memory
B. Random access memory
C. Read only memory
D. No memory
6. Which properties do all semiconductor memory cells share?
A. They exhibit two stable states which can be used to represent
binary 1 and 0
B. They are capable of being written into to set the state
C. They are capable of being read to sense the state
D. All of the above
Page 2 of 6
|
|

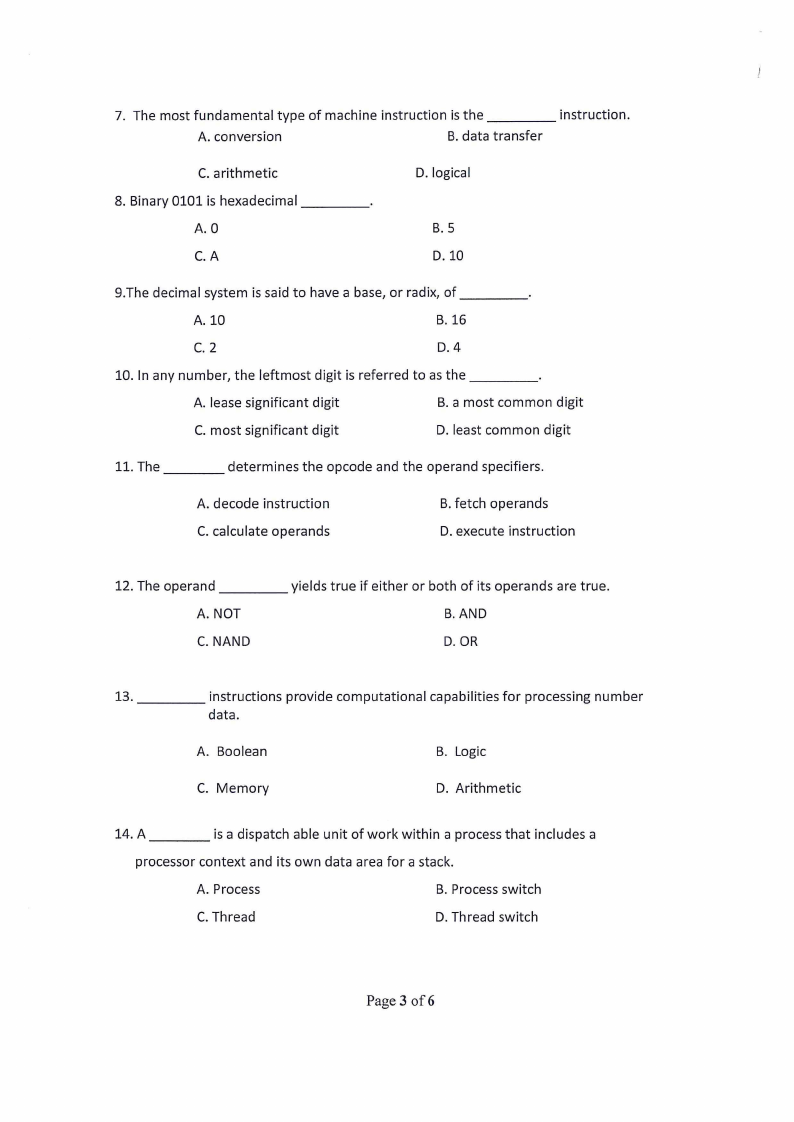

4 Page 4 |
▲back to top |
7. The most fundamental type of machine instruction is the ____
instruction.
A. conversion
B. data transfer
C. arithmetic
8. Binary 0101 is hexadecimal ___ _
A. 0
C.A
D. logical
B.S
D.10
9.The decimal system is said to have a base, or radix, of ___ _
A.10
B. 16
C. 2
D.4
10. In any number, the leftmost digit is referred to as the ___ _
A. lease significant digit
B. a most common digit
C. most significant digit
D. least common digit
11. The ____
determines the opcode and the operand specifiers.
A. decode instruction
C. calculate operands
B. fetch operands
D. execute instruction
12. The operand ____
A. NOT
C. NAND
yields true if either or both of its operands are true.
B. AND
D. OR
13. ____
instructions provide computational capabilities for processing number
data.
A. Boolean
B. Logic
C. Memory
D. Arithmetic
14. A ____
is a dispatch able unit of work within a process that includes a
processor context and its own data area for a stack.
A. Process
B. Process switch
C. Thread
D. Thread switch
Page 3 of 6
|
|

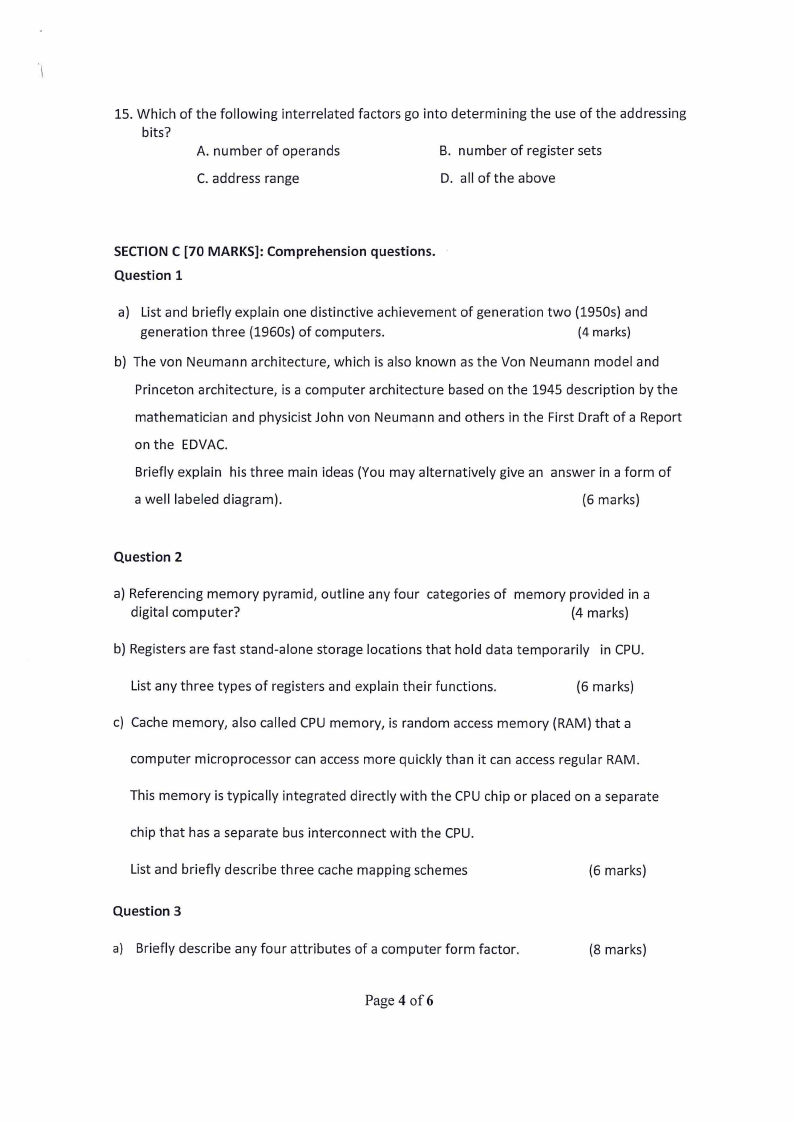

5 Page 5 |
▲back to top |
15. Which of the following interrelated factors go into determining the use of the addressing
bits?
A. number of operands
B. number of register sets
C. address range
D. all of the above
SECTION C [70 MARKS]: Comprehension questions.
Question 1
a) List and briefly explain one distinctive achievement of generation two (1950s) and
generation three (1960s) of computers.
(4 marks)
b) The van Neumann architecture, which is also known as the Von Neumann model and
Princeton architecture, is a computer architecture based on the 1945 description by the
mathematician and physicist John van Neumann and others in the First Draft of a Report
on the EDVAC.
Briefly explain his three main ideas (You may alternatively give an answer in a form of
a well labeled diagram).
(6 marks)
Question 2
a) Referencing memory pyramid, outline any four categories of memory provided in a
digital computer?
(4 marks)
b) Registers are fast stand-alone storage locations that hold data temporarily in CPU.
List any three types of registers and explain their functions.
(6 marks)
c) Cache memory, also called CPU memory, is random access memory (RAM) that a
computer microprocessor can access more quickly than it can access regular RAM.
This memory is typically integrated directly with the CPU chip or placed on a separate
chip that has a separate bus interconnect with the CPU.
List and briefly describe three cache mapping schemes
(6 marks)
Question 3
a) Briefly describe any four attributes of a computer form factor.
(8 marks)
Page 4 of 6
|
|

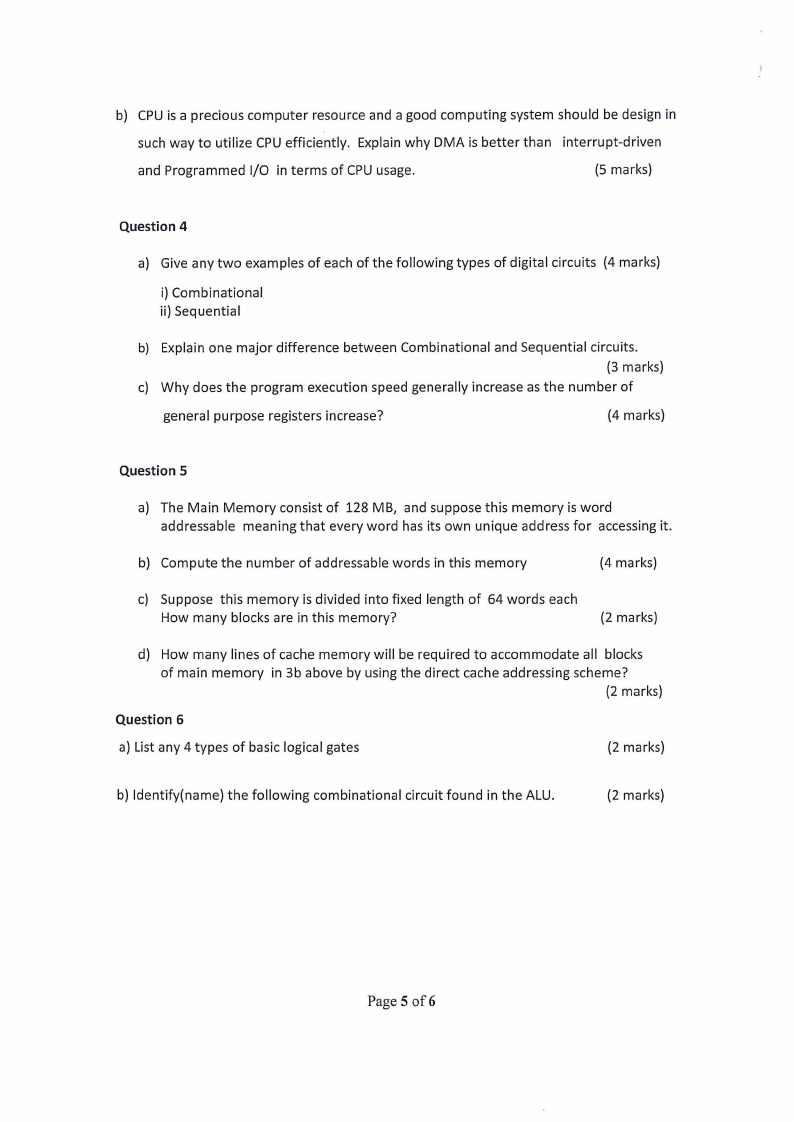

6 Page 6 |
▲back to top |
b) CPU is a precious computer resource and a good computing system should be design in
such way to utilize CPU efficiently. Explain why DMA is better than interrupt-driven
and Programmed 1/0 in terms of CPU usage.
(5 marks)
Question 4
a) Give any two examples of each of the following types of digital circuits (4 marks)
i) Combinational
ii) Sequential
b) Explain one major difference between Combinational and Sequential circuits.
(3 marks)
c) Why does the program execution speed generally increase as the number of
general purpose registers increase?
(4 marks)
Question 5
a) The Main Memory consist of 128 MB, and suppose this memory is word
addressable meaning that every word has its own unique address for accessing it.
b) Compute the number of addressable words in this memory
(4 marks)
c) Suppose this memory is divided into fixed length of 64 words each
How many blocks are in this memory?
(2 marks)
d) How many lines of cache memory will be required to accommodate all blocks
of main memory in 3b above by using the direct cache addressing scheme?
(2 marks)
Question 6
a) List any 4 types of basic logical gates
(2 marks)
b) ldentify(name) the following combinational circuit found in the ALU.
(2 marks)
Page 5 of 6
|
|

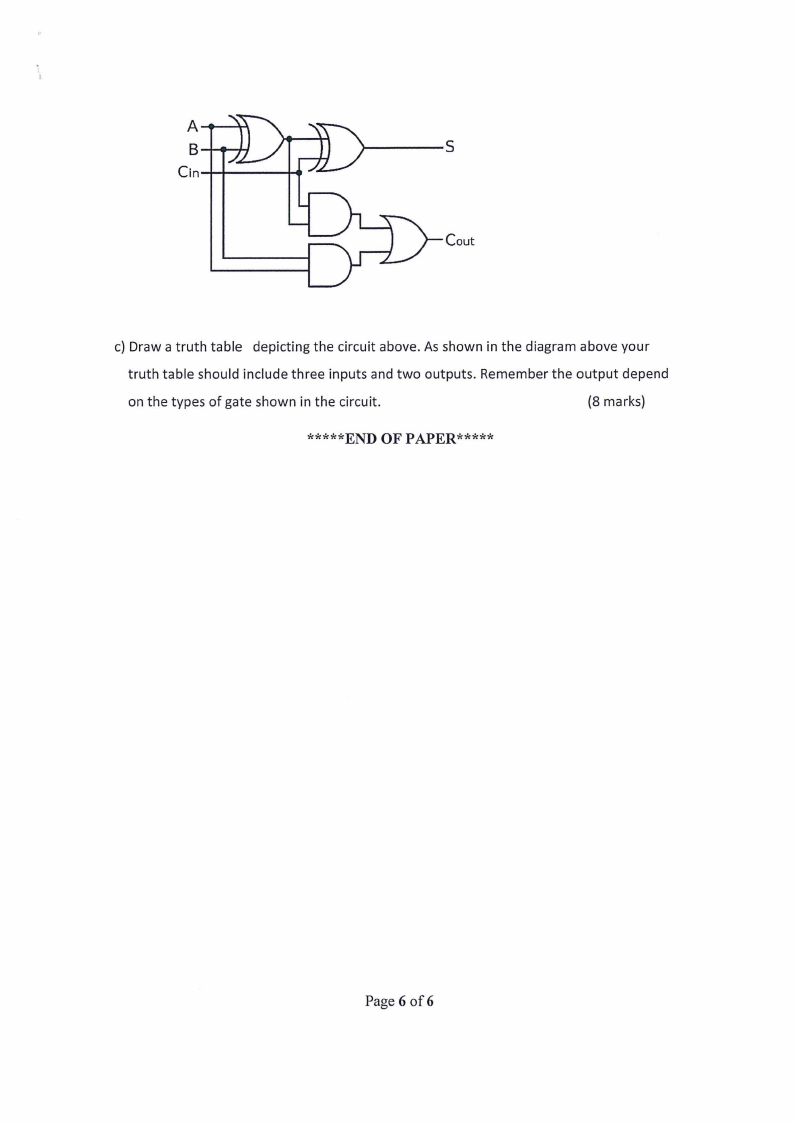

7 Page 7 |
▲back to top |
A---
B-....--
Cin-+--t----~
Cout
c) Draw a truth table depicting the circuit above. As shown in the diagram above your
truth table should include three inputs and two outputs. Remember the output depend
on the types of gate shown in the circuit.
(8 marks)
*****END OF PAPER*****
Page 6 of 6
|
|
