RMC711S - Rock Mechanics 314 - 2nd Opp - June 2022 |
|
|
1 Page 1 |
▲back to top |

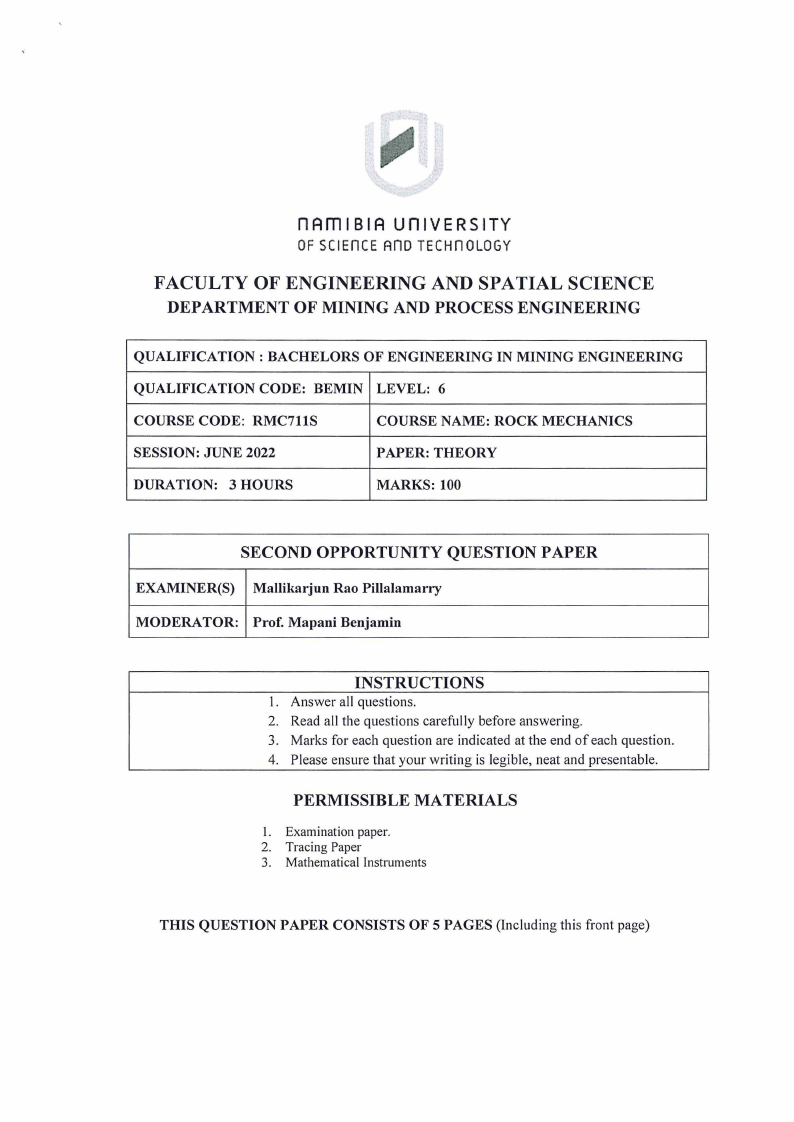

nAmlBIA unlVERSITY
OF SCIEnCE Ano TECHnOLOGY
FACULTY OF ENGINEERING AND SPATIAL SCIENCE
DEPARTMENT OF MINING AND PROCESS ENGINEERING
QUALIFICATION: BACHELORS OF ENGINEERING IN MINING ENGINEERING
QUALIFICATION CODE: BEMIN LEVEL: 6
COURSE CODE: RMC711S
COURSE NAME: ROCK MECHANICS
SESSION: JUNE 2022
PAPER: THEORY
DURATION: 3 HOURS
MARKS: 100
SECOND OPPORTUNITY QUESTION PAPER
EXAMINER(S) Mallikarjun Rao Pillalamarry
MOD ERA TOR: Prof. Mapani Benjamin
INSTRUCTIONS
l. Answer all questions.
2. Read all the questions carefully before answering.
3. Marks for each question are indicated at the end of each question.
4. Please ensure that your writing is legible, neat and presentable.
PERMISSIBLE MATERIALS
I. Examination paper.
2. Tracing Paper
3. Mathematical Instruments
THIS QUESTION PAPER CONSISTS OF 5 PAGES (Including this front page)
|
|
2 Page 2 |
▲back to top |
|
|
3 Page 3 |
▲back to top |

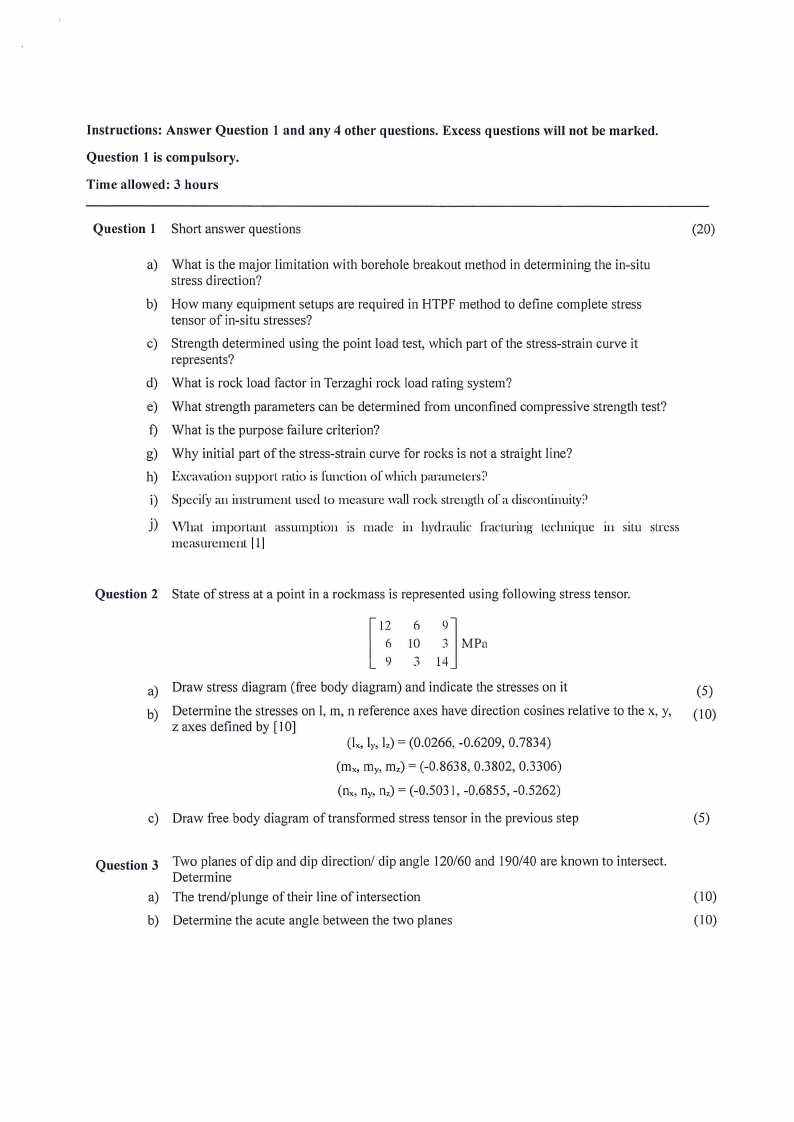

Instructions: Answer Question 1 and any 4 other questions. Excess questions will not be marked.
Question 1 is compulsory.
Time allowed: 3 hours
Question 1 Short answer questions
(20)
a) What is the major limitation with borehole breakout method in determining the in-situ
stress direction?
b) How many equipment setups are required in HTPF method to define complete stress
tensor of in-situ stresses?
c) Strength determined using the point load test, which part of the stress-strain curve it
represents?
d) What is rock load factor in Terzaghi rock load rating system?
e) What strength parameters can be determined from unconfined compressive strength test?
f) What is the purpose failure criterion?
g) Why initial part of the stress-strain curve for rocks is not a straight line?
h) Excavation support ratio is limction or which p;muneters?
i) Spccil)' an instrument used to measure wall rock strength or a discontinuity?
j) \\i\\fhat import;mt assumption is made in hydraulic fracturing technique m situ stress
measurement 111
Question 2 State of stress at a point in a rockmass is represented using following stress tensor.
12 6
6 lO
[9 3
a) Draw stress diagram (free body diagram) and indicate the stresses on it
(5)
b) Determine the stresses on I, m, n reference axes have direction cosines relative to the x, y, (10)
z axes defined by [ 10]
(Ix,ly, lz) = (0.0266, -0.6209, 0.7834)
(mx, my, mz) = (-0.8638, 0.3802, 0.3306)
(nx, 11yn, 2) = (-0.5031, -0.6855, -0.5262)
c) Draw free body diagram of transformed stress tensor in the previous step
(5)
Question 3 Two planes of dip and dip direction/ dip angle 120/60 and 190/40 are known to intersect.
Determine
a) The trend/plunge of their line of intersection
(10)
b) Determine the acute angle between the two planes
( 10)
|
|
4 Page 4 |
▲back to top |
|
|
5 Page 5 |
▲back to top |

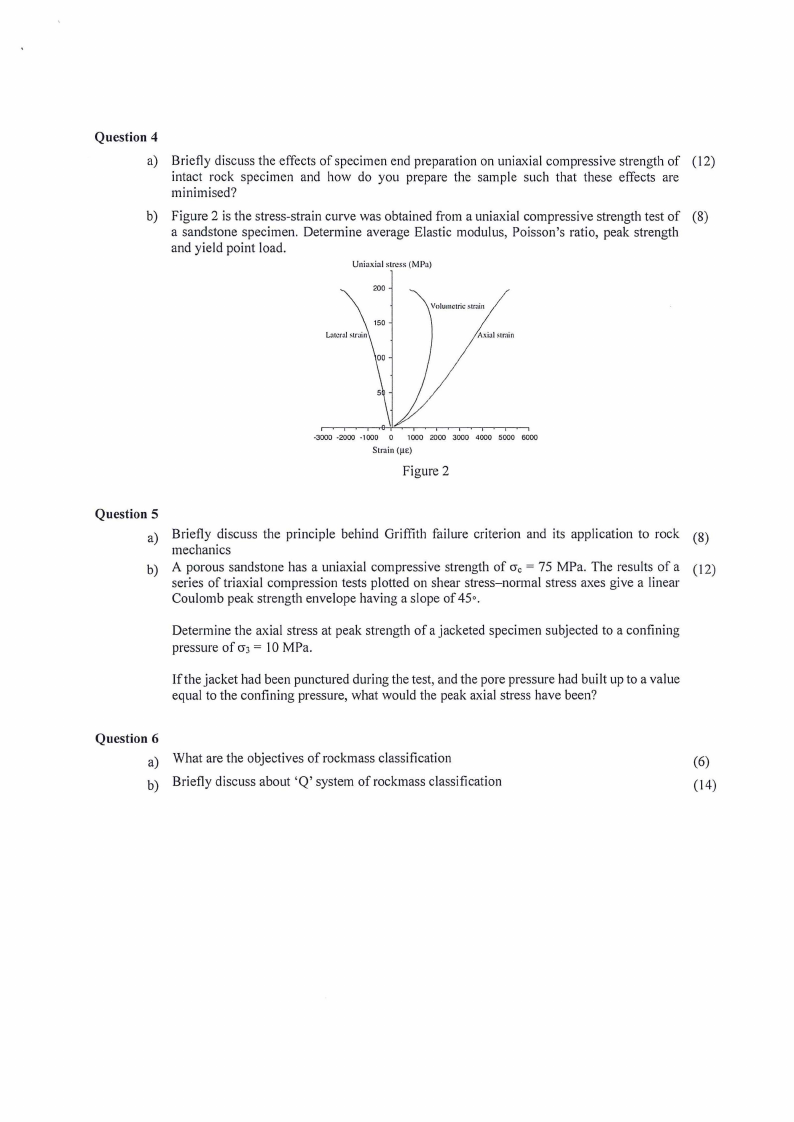

Question 4
a) Briefly discuss the effects of specimen end preparation on uniaxial compressive strength of ( 12)
intact rock specimen and how do you prepare the sample such that these effects are
minimised?
b) Figure 2 is the stress-strain curve was obtained from a uniaxial compressive strength test of (8)
a sandstone specimen. Determine average Elastic modulus, Poisson's ratio, peak strength
and yield point load.
Uniaxial stress (MPa)
200
Volumetric strain
Axial ~trnin
-3000 -2000 ·1000 0 1000 2000 3000 4000 5000 6000
Strain(µ£)
Figure 2
Question 5
a) Briefly discuss the principle behind Griffith failure criterion and its application to rock (8)
mechanics
b) A porous sandstone has a uniaxial compressive strength ofcrc = 75 MPa. The results ofa (12)
series of triaxial compression tests plotted on shear stress-normal stress axes give a linear
Coulomb peak strength envelope having a slope of 45°.
Determine the axial stress at peak strength of a jacketed specimen subjected to a confining
pressure of = CT3 IO MPa.
If the jacket had been punctured during the test, and the pore pressure had built up to a value
equal to the confining pressure, what would the peak axial stress have been?
Question 6
a) What are the objectives of rockmass classification
(6)
b) Briefly discuss about 'Q' system of rockmass classification
(14)
|
|
6 Page 6 |
▲back to top |
|
|
7 Page 7 |
▲back to top |

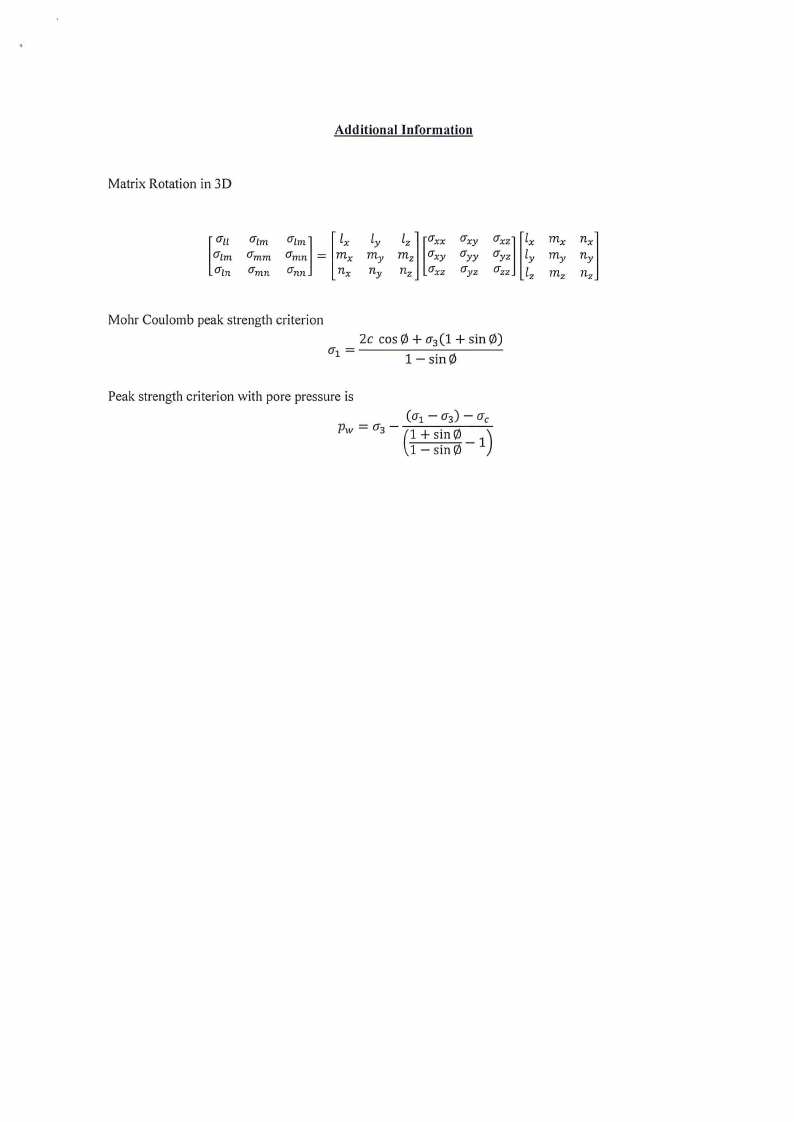

Matrix Rotation in 3D
Additional Information
Mohr Coulomb peak strength criterion
= 2c
0"1
cos
(i')+ 0"3 (1
1-sin(i')
+ sin
0)
Peak strength criterion with pore pressure is
|
|
8 Page 8 |
▲back to top |
|
|
9 Page 9 |
▲back to top |
I.

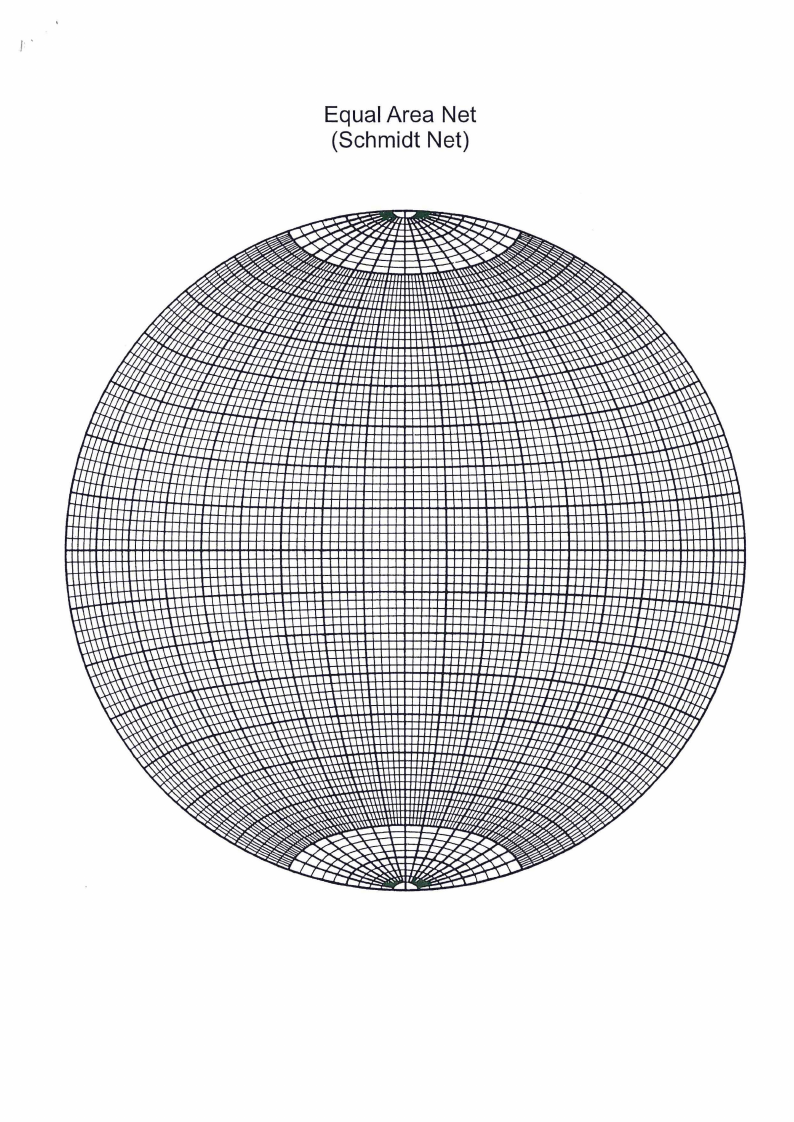

Equal Area Net
(Schmidt Net)
|
|
