GNP502S - GENERAL PHYSICS 1B -1ST OPP - NOV 2022 |
|
|

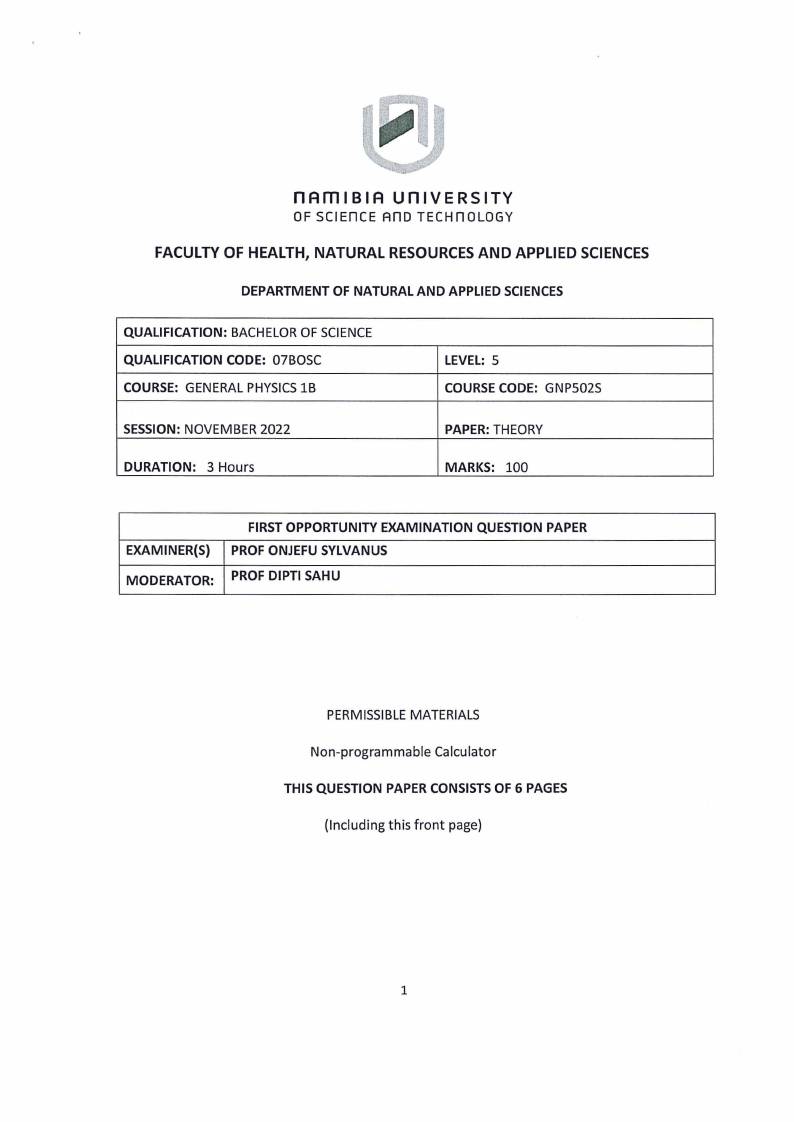

1 Page 1 |
▲back to top |
nAmlBIA UnlVERSITY
OF SCIEnCE Ano TECH n 0L0GY
FACULTYOF HEALTH,NATURALRESOURCESAND APPLIEDSCIENCES
DEPARTMENT OF NATURAL AND APPLIED SCIENCES
QUALIFICATION: BACHELOR OF SCIENCE
QUALIFICATION CODE: 07BOSC
COURSE: GENERAL PHYSICS1B
LEVEL: 5
COURSE CODE: GNP502S
SESSION: NOVEMBER 2022
DURATION: 3 Hours
PAPER: THEORY
MARKS: 100
EXAMINER(S)
MODERATOR:
FIRST OPPORTUNITY EXAMINATION QUESTION PAPER
PROF ONJEFU SYLVANUS
PROF DIPTI SAHU
PERMISSIBLE MATERIALS
Non-programmable Calculator
THIS QUESTION PAPER CONSISTS OF 6 PAGES
(Including this front page)
1
|
|

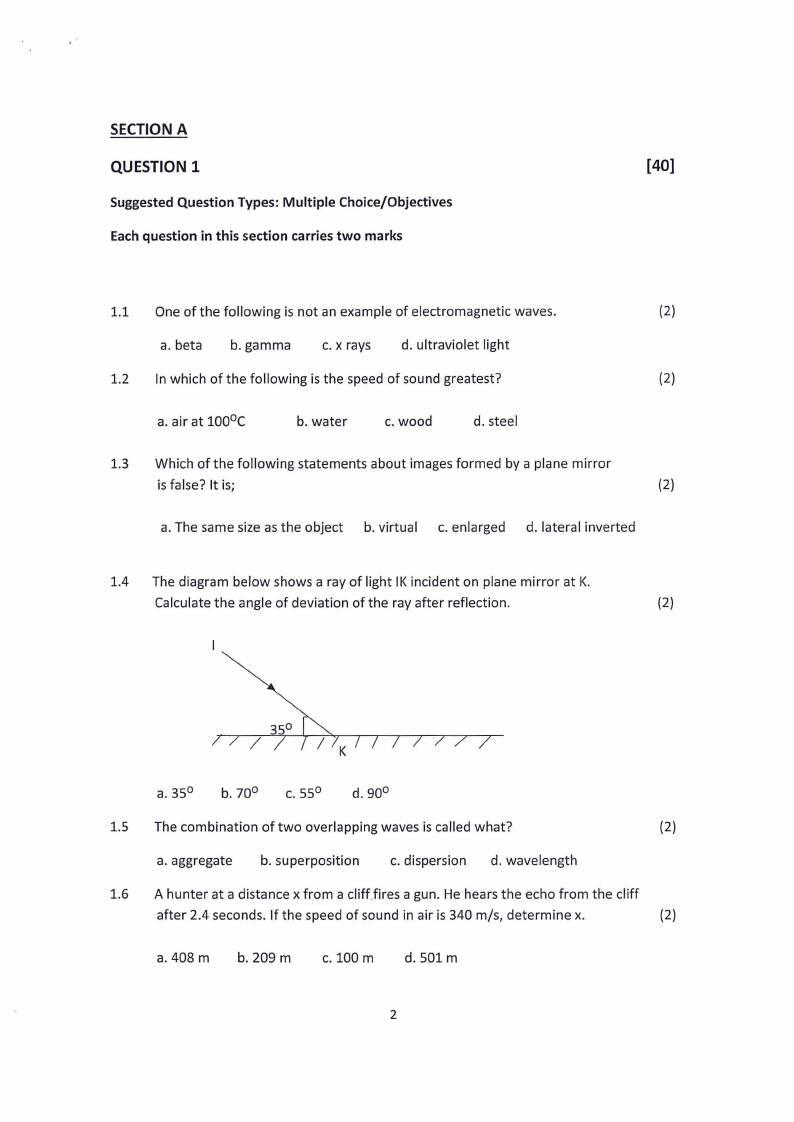

2 Page 2 |
▲back to top |
SECTIONA
QUESTION 1
Suggested Question Types: Multiple Choice/Objectives
Each question in this section carries two marks
[40]
1.1 One of the following is not an example of electromagnetic waves.
(2)
a. beta b. gamma c. x rays d. ultraviolet light
1.2 In which of the following is the speed of sound greatest?
(2)
a. air at 100°c
b. water
c. wood
d. steel
1.3 Which of the following statements about images formed by a plane mirror
is false? It is;
(2)
a. The same size as the object b. virtual c. enlarged d. lateral inverted
1.4 The diagram below shows a ray of light IK incident on plane mirror at K.
Calculate the angle of deviation of the ray after reflection.
(2)
/
K
a.35° b. 70° c.55° d.90°
1.5 The combination of two overlapping waves is called what?
(2)
a. aggregate b. superposition
c. dispersion d. wavelength
1.6 A hunter at a distance x from a cliff fires a gun. He hears the echo from the cliff
after 2.4 seconds. If the speed of sound in air is 340 m/s, determine x.
(2)
a. 408 m b. 209 m C. 100 m d. 501 m
2
|
|

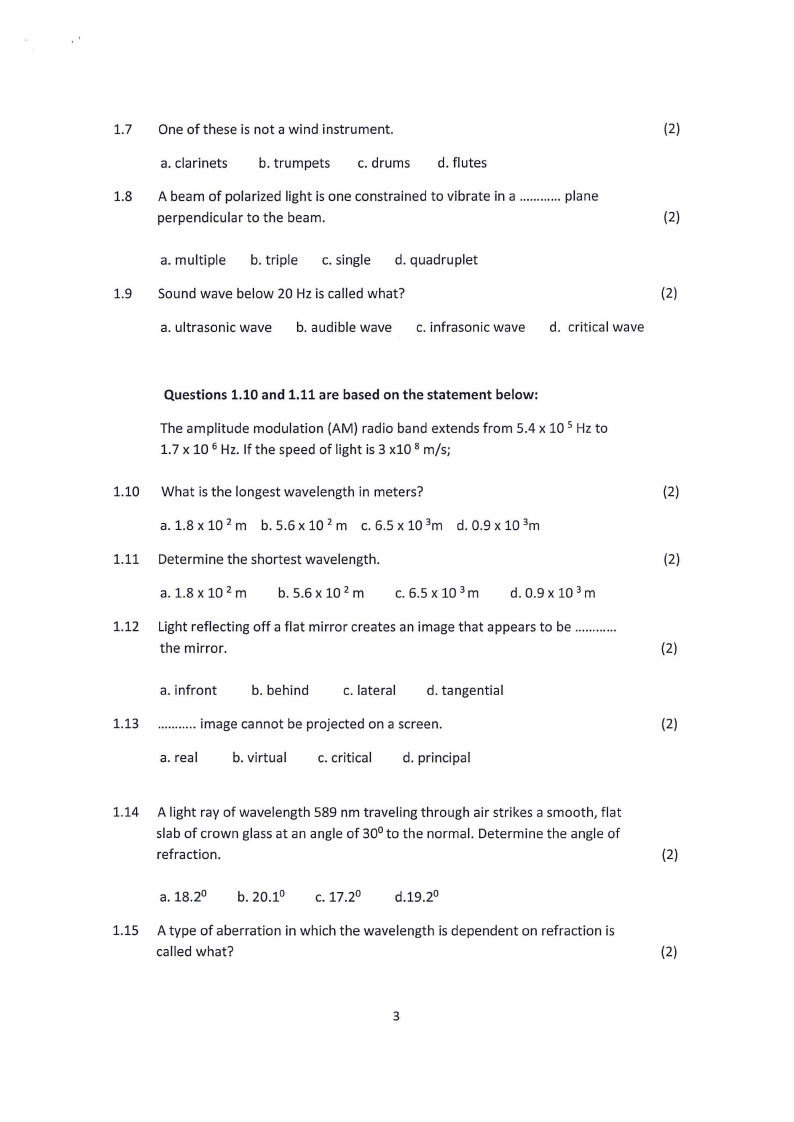

3 Page 3 |
▲back to top |
1.7 One of these is not a wind instrument.
(2)
a. clarinets
b. trumpets
c. drums d. flutes
1.8 A beam of polarized light is one constrained to vibrate in a ............plane
perpendicular to the beam.
(2)
a. multiple b. triple c. single d. quadruplet
1.9 Sound wave below 20 Hz is called what?
{2)
a. ultrasonic wave b. audible wave c. infrasonic wave d. critical wave
Questions 1.10 and 1.11 are based on the statement below:
The amplitude modulation {AM)radio band extends from 5.4 x 10 5 Hz to
1.7 x 10 6 Hz. If the speed of light is 3 x10 8 m/s;
1.10 What is the longest wavelength in meters?
(2)
a. 1.8 x 10 2 m b. 5.6 x 10 2 m c. 6.5 x 10 3m d. 0.9 x 10 3m
1.11 Determine the shortest wavelength.
(2)
a. 1.8 x 10 2 m
b. 5.6 x 10 2 m
C. 6.5 X 10 3 m
d. 0.9 x 10 3 m
1.12 Light reflecting off a flat mirror creates an image that appears to be ...........
the mirror.
(2)
a. infront
b. behind
c. lateral d. tangential
1.13 ........... image cannot be projected on a screen.
(2)
a. real
b. virtual
c. critical
d. principal
1.14 A light ray of wavelength 589 nm traveling through air strikes a smooth, flat
slab of crown glass at an angle of 30° to the normal. Determine the angle of
refraction.
{2)
a. 18.2° b. 20.1° C. 17.2°
d.19.2°
1.15 A type of aberration in which the wavelength is dependent on refraction is
called what?
(2)
3
|
|

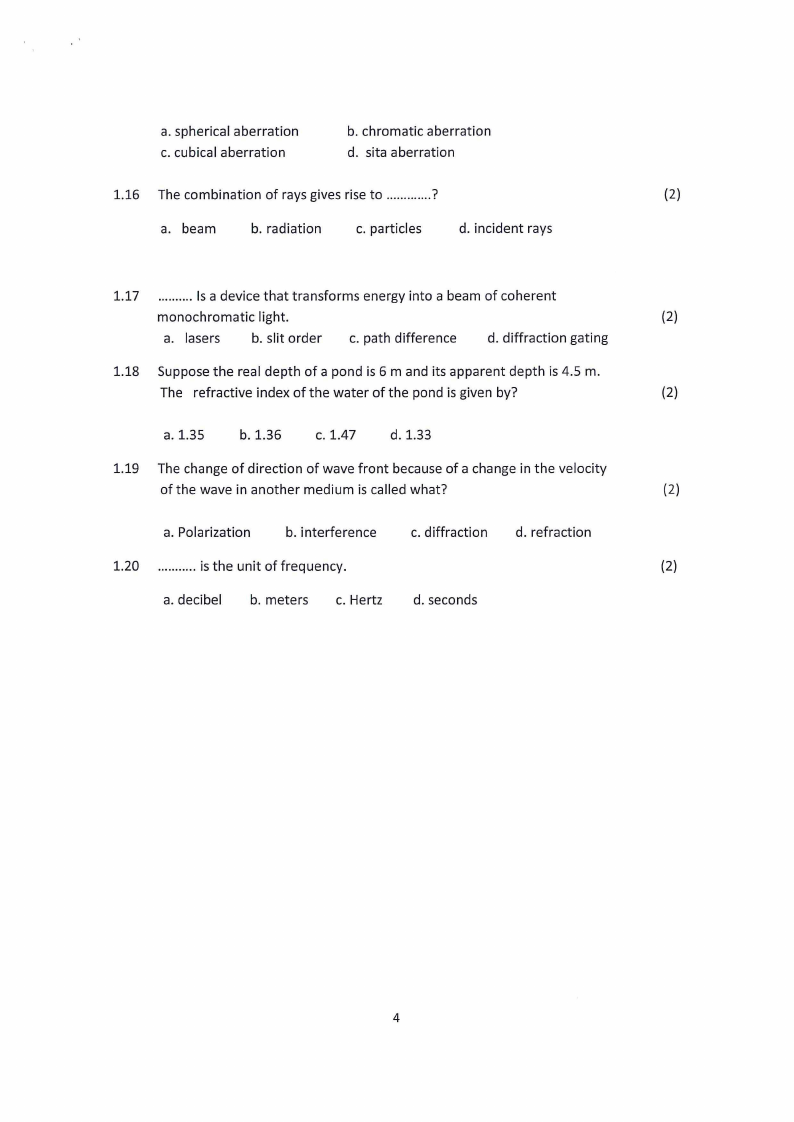

4 Page 4 |
▲back to top |
a. spherical aberration
c. cubical aberration
b. chromatic aberration
d. sita aberration
1.16 The combination of rays gives rise to .............?
(2)
a. beam
b. radiation
c. particles
d. incident rays
1.17 .......... Is a device that transforms energy into a beam of coherent
monochromatic light.
(2)
a. lasers
b. slit order c. path difference
d. diffraction gating
1.18 Suppose the real depth of a pond is 6 m and its apparent depth is 4.5 m.
The refractive index of the water of the pond is given by?
(2)
a. 1.35
b. 1.36
C. 1.47
d. 1.33
1.19 The change of direction of wave front because of a change in the velocity
of the wave in another medium is called what?
(2)
a. Polarization
b. interference
c. diffraction
d. refraction
1.20 ........... is the unit of frequency.
(2)
a. decibel b. meters c. Hertz d. seconds
4
|
|

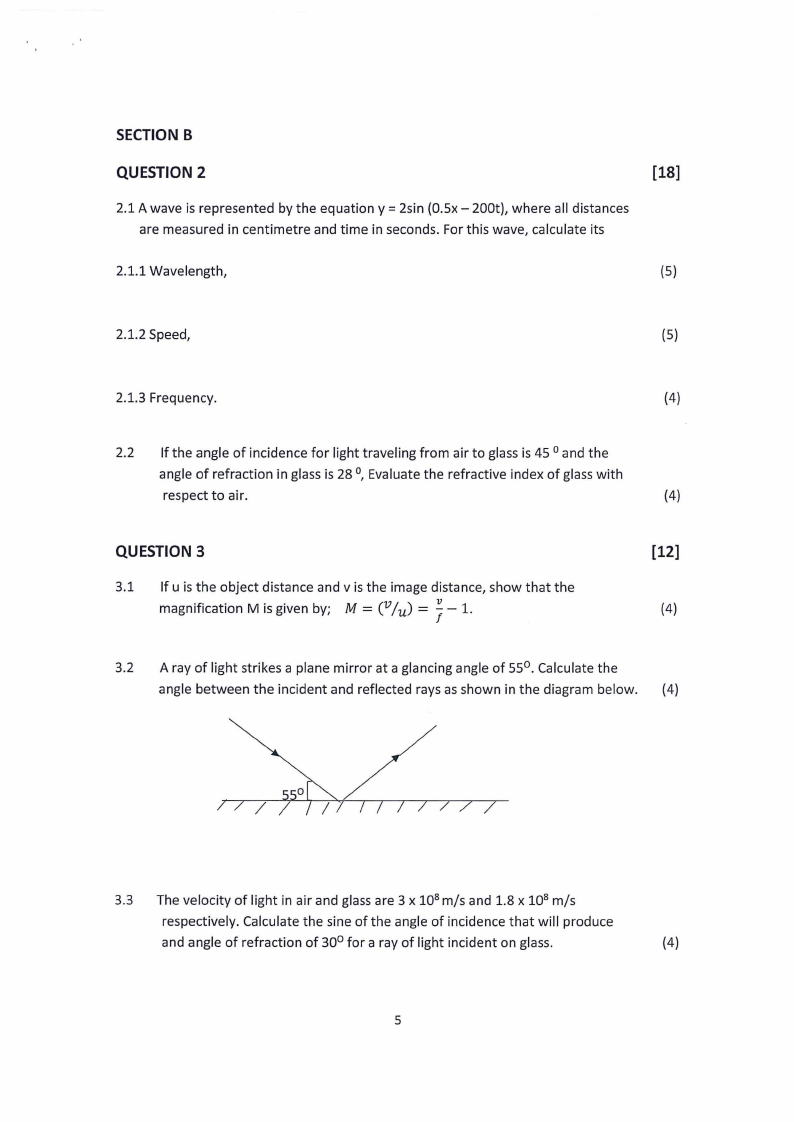

5 Page 5 |
▲back to top |
SECTIONB
QUESTION2
[18]
2.1 A wave is represented by the equation y = 2sin (0.5x - 200t), where all distances
are measured in centimetre and time in seconds. For this wave, calculate its
2.1.1 Wavelength,
(5)
2.1.2 Speed,
(5)
2.1.3 Frequency.
(4)
° 2.2 If the angle of incidence for light traveling from air to glass is 45 and the
°, angle of refraction in glass is 28 Evaluate the refractive index of glass with
respect to air.
(4)
QUESTION3
3.1
y- If u is the object distance and vis the image distance, show that the
magnification M is given by; M = (V/ u) =
1.
[12]
(4)
3.2 A ray of light strikes a plane mirror at a glancing angle of 55°. Calculate the
angle between the incident and reflected rays as shown in the diagram below. (4)
/
3.3 The velocity of light in air and glass are 3 x 108 m/s and 1.8 x 108 m/s
respectively. Calculate the sine of the angle of incidence that will produce
and angle of refraction of 30° for a ray of light incident on glass.
(4)
5
|
|

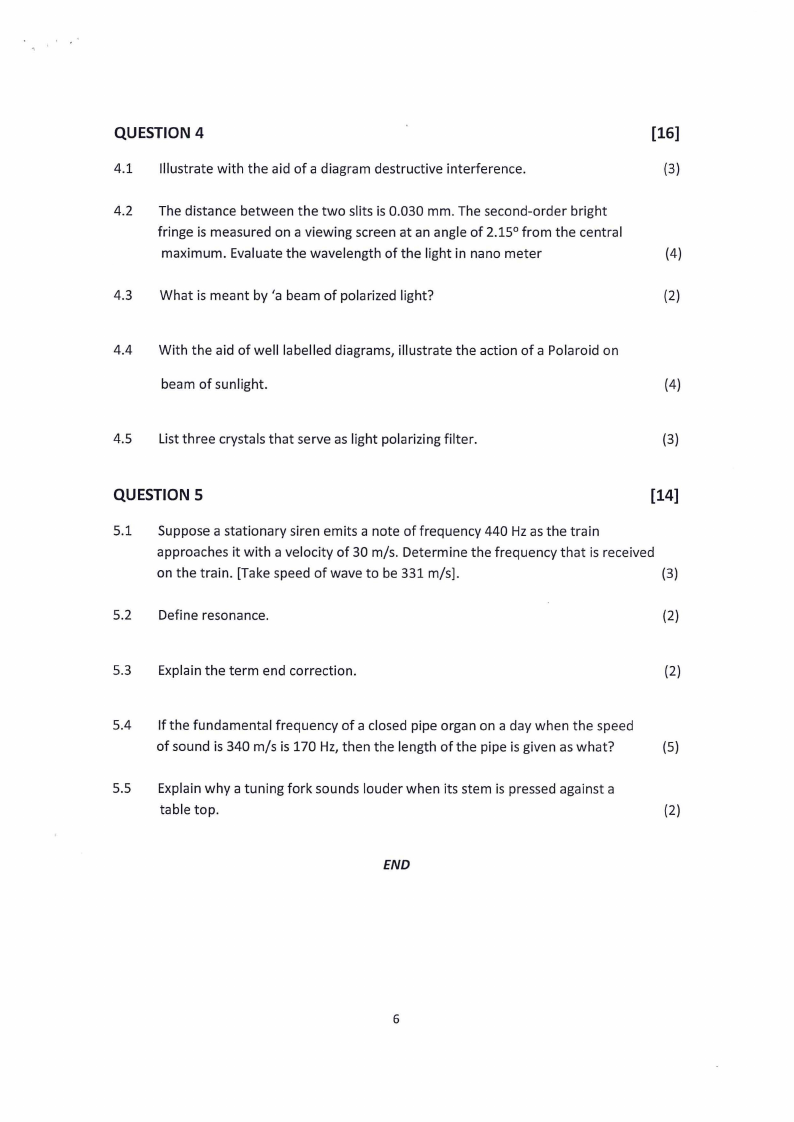

6 Page 6 |
▲back to top |
QUESTION 4
4.1 Illustrate with the aid of a diagram destructive interference.
[16]
(3)
4.2 The distance between the two slits is 0.030 mm. The second-order bright
fringe is measured on a viewing screen at an angle of 2.15° from the central
maximum. Evaluate the wavelength of the light in nano meter
(4)
4.3 What is meant by 'a beam of polarized light?
(2)
4.4 With the aid of well labelled diagrams, illustrate the action of a Polaroid on
beam of sunlight.
(4)
4.5 List three crystals that serve as light polarizing filter.
(3)
QUESTION 5
[14]
5.1 Suppose a stationary siren emits a note of frequency 440 Hz as the train
approaches it with a velocity of 30 m/s. Determine the frequency that is received
on the train. [Take speed of wave to be 331 m/s].
(3)
5.2 Define resonance.
(2)
5.3 Explain the term end correction.
(2)
5.4 If the fundamental frequency of a closed pipe organ on a day when the speed
of sound is 340 m/s is 170 Hz, then the length of the pipe is given as what?
(5)
5.5 Explain why a tuning fork sounds louder when its stem is pressed against a
table top.
(2)
END
6
