COA511S - COMPUTER ORGANISATION AND ARCHITECTURE - 1ST OPP - NOV 2023 |
|
|

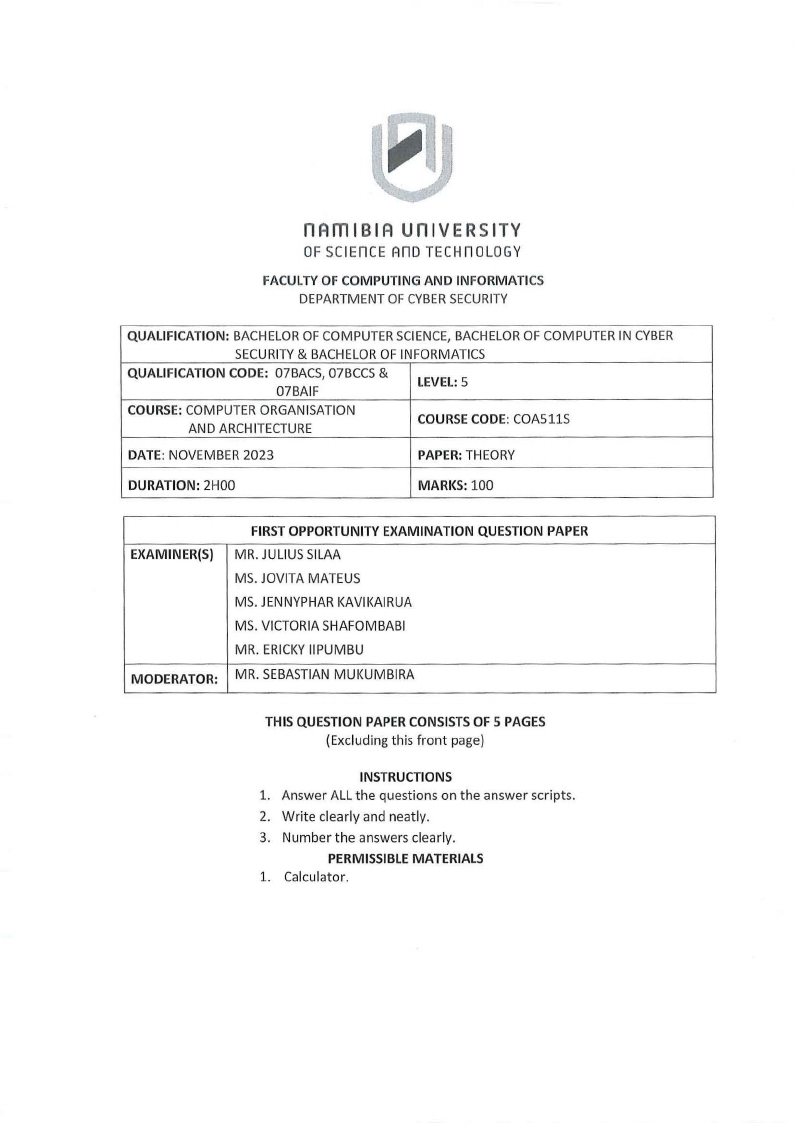

1 Page 1 |
▲back to top |
nAm I BI A un IVERSITY
OFSCIEnCEAno TECHnOLOGY
FACULTYOF COMPUTING AND INFORMATICS
DEPARTMENTOF CYBERSECURITY
QUALIFICATION:BACHELOROF COMPUTERSCIENCE,BACHELOROF COMPUTERIN CYBER
SECURITY& BACHELOROF INFORMATICS
QUALIFICATIONCODE: 07BACS,07BCCS&
07BAIF
LEVEL:5
COURSE:COMPUTERORGANISATION
AND ARCHITECTURE
COURSECODE:COASllS
DATE: NOVEMBER 2023
PAPER:THEORY
DURATION: 2H00
MARKS: 100
FIRSTOPPORTUNITYEXAMINATION QUESTIONPAPER
EXAMINER(S) MR. JULIUSSILAA
MS. JOVITA MATEUS
MS. JENNYPHARKAVIKAIRUA
MS. VICTORIASHAFOMBABI
MR. ERICKYIIPUMBU
MODERATOR: MR. SEBASTIANMUKUMBIRA
THIS QUESTIONPAPERCONSISTSOF 5 PAGES
(Excluding this front page)
INSTRUCTIONS
1. Answer ALL the questions on the answer scripts.
2. Write clearly and neatly.
3. Number the answers clearly.
PERMISSIBLEMATERIALS
1. Calculator.
|
|

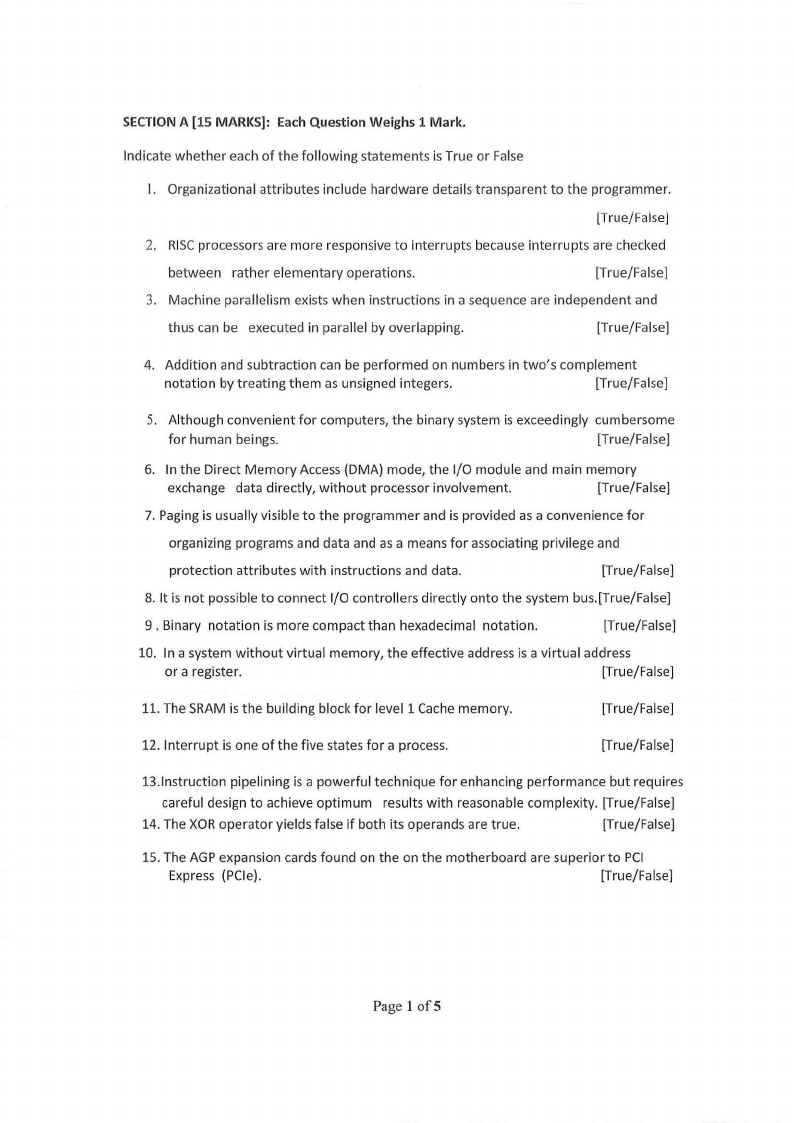

2 Page 2 |
▲back to top |
SECTION A [15 MARKS]: Each Question Weighs 1 Marl<.
Indicate whether each of the following statements is True or False
I. Organizational attributes include hardware details transparent to the programmer.
[True/False]
2. RISCprocessors are more responsive to interrupts because interrupts are checked
between rather elementary operations.
[True/False]
3. Machine parallelism exists when instructions in a sequence are independent and
thus can be executed in parallel by overlapping.
[True/False]
4. Addition and subtraction can be performed on numbers in two's complement
notation by treating them as unsigned integers.
[True/False]
5. Although convenient for computers, the binary system is exceedingly cumbersome
for human beings.
[True/False]
6. In the Direct Memory Access (DMA) mode, the 1/0 module and main memory
exchange data directly, without processor involvement.
[True/False]
7. Paging is usually visible to the programmer and is provided as a convenience for
organizing programs and data and as a means for associating privilege and
protection attributes with instructions and data.
[True/False]
8. It is not possible to connect 1/0 controllers directly onto the system bus.[True/False]
9 . Binary notation is more compact than hexadecimal notation.
[True/False]
10. In a system without virtual memory, the effective address is a virtual address
or a register.
[True/False]
11. The SRAM is the building block for level 1 Cache memory.
[True/False]
12. Interrupt is one of the five states for a process.
[True/False]
13.lnstruction pipelining is a powerful technique for enhancing performance but requires
careful design to achieve optimum results with reasonable complexity. [True/False]
14. The XORoperator yields false if both its operands are true.
[True/False]
15. The AGP expansion cards found on the on the motherboard are superior to PCI
Express (PCle).
[True/False]
Page 1 of 5
|
|

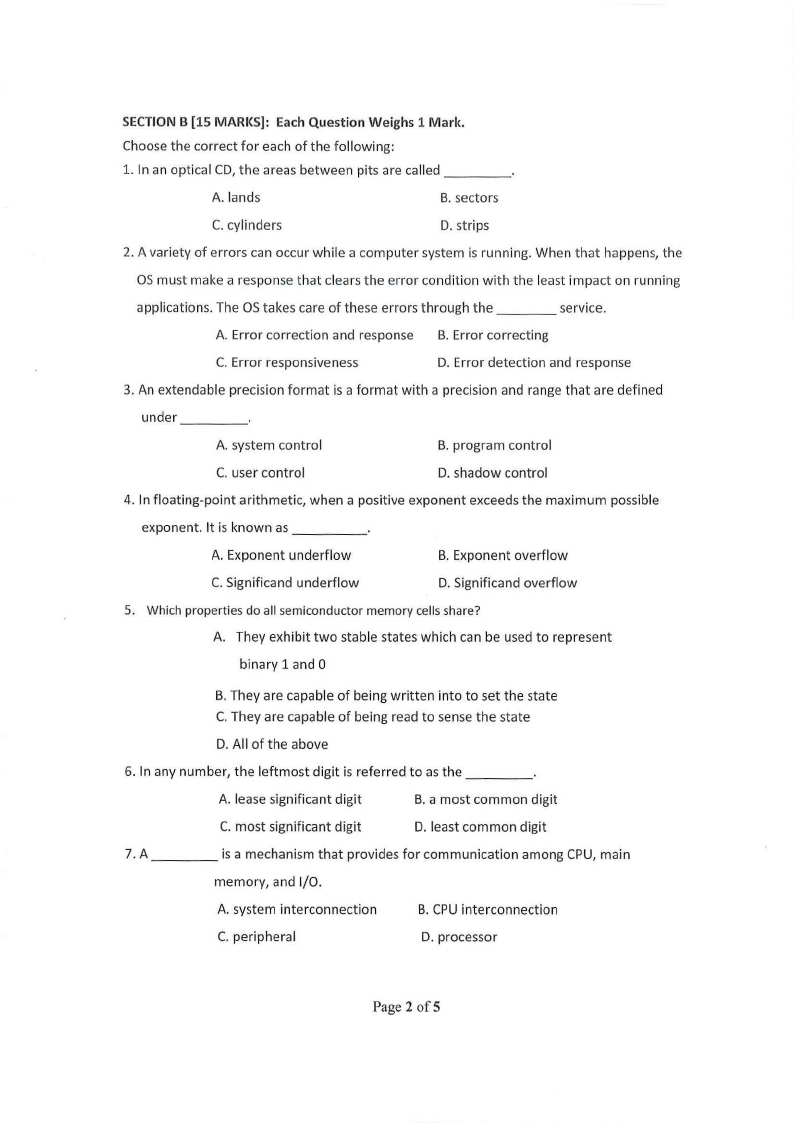

3 Page 3 |
▲back to top |
SECTION B (15 MARl<S]: Each Question Weighs 1 Mark.
Choose the correct for each of the following:
1. In an optical CD, the areas between pits are called ___ _
A. lands
C. cylinders
B. sectors
D. strips
2. A variety of errors can occur while a computer system is running. When that happens, the
OS must make a response that clears the error condition with the least impact on running
applications. The OStakes care of these errors through the ____
service.
A. Error correction and response B. Error correcting
C. Error responsiveness
D. Error detection and response
3. An extendable precision format is a format with a precision and range that are defined
under ___ _
A. system control
B. program control
C. user control
D. shadow control
4. In floating-point arithmetic, when a positive exponent exceeds the maximum possible
exponent. It is known as ____
_
A. Exponent underflow
C. Significand underflow
B. Exponent overflow
D. Significand overflow
5. Which properties do all semiconductor memory cells share?
A. They exhibit two stable states which can be used to represent
binary 1 and 0
B. They are capable of being written into to set the state
C. They are capable of being read to sense the state
D. All of the above
6. In any number, the leftmost digit is referred to as the ___ _
A. lease significant digit
B. a most common digit
7. A ____
C. most significant digit
D. least common digit
is a mechanism that provides for communication among CPU, main
memory, and 1/0.
A. system interconnection
C. peripheral
B. CPU interconnection
D. processor
Page 2 of 5
|
|

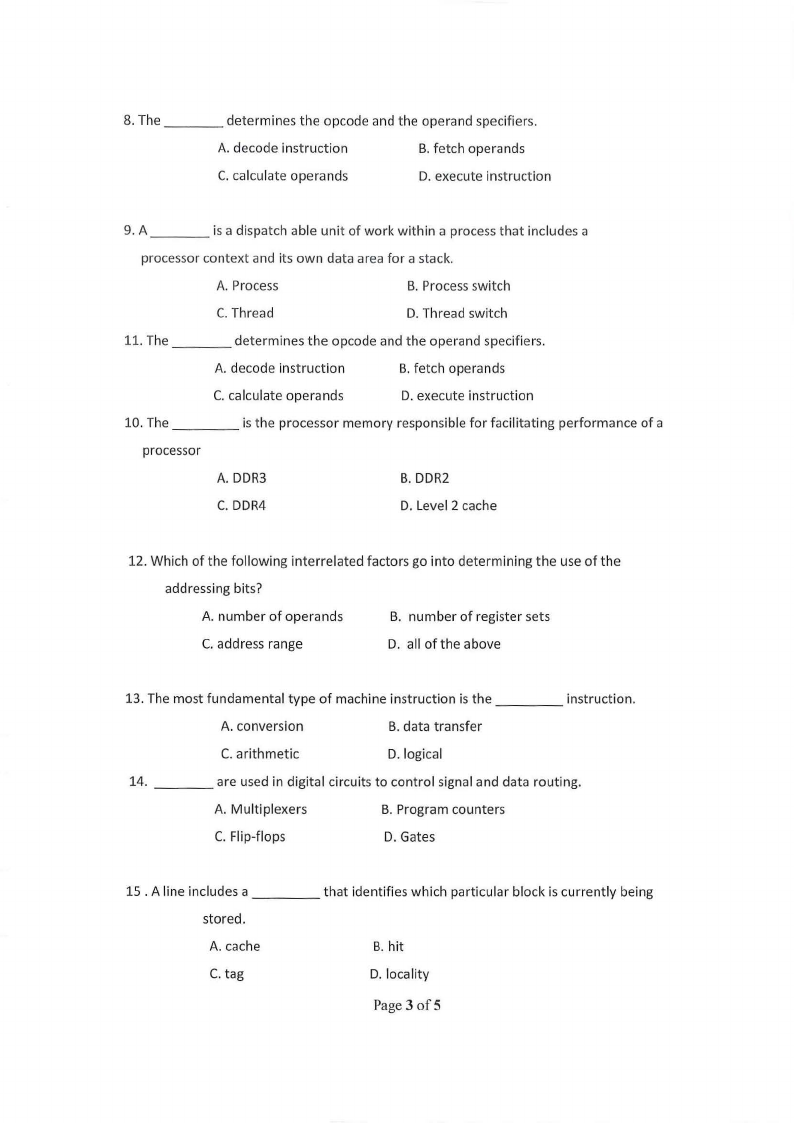

4 Page 4 |
▲back to top |
8. The ____
determines the opcode and the operand specifiers.
A. decode instruction
B. fetch operands
C. calculate operands
D. execute instruction
9. A ____
is a dispatch able unit of work within a process that includes a
processor context and its own data area for a stack.
A. Process
B. Processswitch
C. Thread
D. Thread switch
11. The ____
determines the opcode and the operand specifiers.
A. decode instruction
B. fetch operands
C. calculate operands
D. execute instruction
10. The ____
is the processor memory responsible for facilitating performance of a
processor
A. DDR3
B. DDR2
C. DDR4
D. Level 2 cache
12. Which of the following interrelated factors go into determining the use of the
addressing bits?
A. number of operands
B. number of register sets
C. address range
D. all of the above
13. The most fundamental type of machine instruction is the ____
instruction.
A. conversion
B. data transfer
C. arithmetic
D. logical
14. ____
are used in digital circuits to control signal and data routing.
A. Multiplexers
B. Program counters
C. Flip-flops
D. Gates
15 . A line includes a ----
stored.
A. cache
C. tag
that identifies which particular block is currently being
B. hit
D. locality
Page 3 of 5
|
|

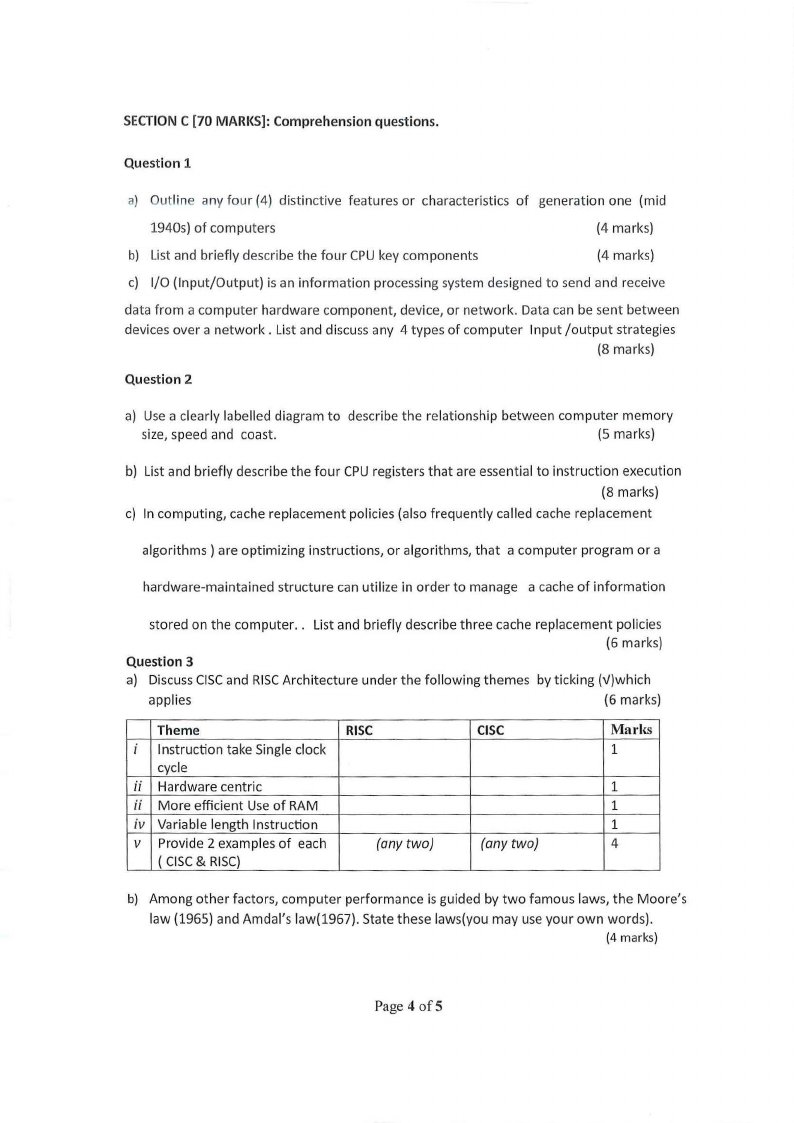

5 Page 5 |
▲back to top |
SECTION C [70 MARKS]: Comprehension questions.
Question 1
a) Outline any four (4) distinctive features or characteristics of generation one (mid
1940s) of computers
(4 marks)
b) List and briefly describe the four CPU key components
(4 marks)
c) 1/0 (Input/Output) is an information processing system designed to send and receive
data from a computer hardware component, device, or network. Data can be sent between
devices over a network. List and discuss any 4 types of computer Input /output strategies
(8 marks)
Question 2
a) Use a clearly labelled diagram to describe the relationship between computer memory
size, speed and coast.
(5 marks)
b) List and briefly describe the four CPU registers that are essential to instruction execution
(8 marks)
c) In computing, cache replacement policies (also frequently called cache replacement
algorithms) are optimizing instructions, or algorithms, that a computer program or a
hardware-maintained structure can utilize in order to manage a cache of information
stored on the computer .. List and briefly describe three cache replacement policies
(6 marks)
Question 3
a) Discuss CISCand RISCArchitecture under the following themes by ticking (v)which
applies
(6 marks)
Theme
i Instruction take Single clock
cycle
ii Hardware centric
ii More efficient Use of RAM
iv Variable length Instruction
V Provide 2 examples of each
( CISC& RISC)
RISC
(any two)
CISC
(any two)
Marks
1
1
1
1
4
b) Among other factors, computer performance is guided by two famous laws, the Moore's
law {1965) and Amdal's law(1967). State these laws(you may use your own words).
(4 marks)
Page 4 of 5
|
|

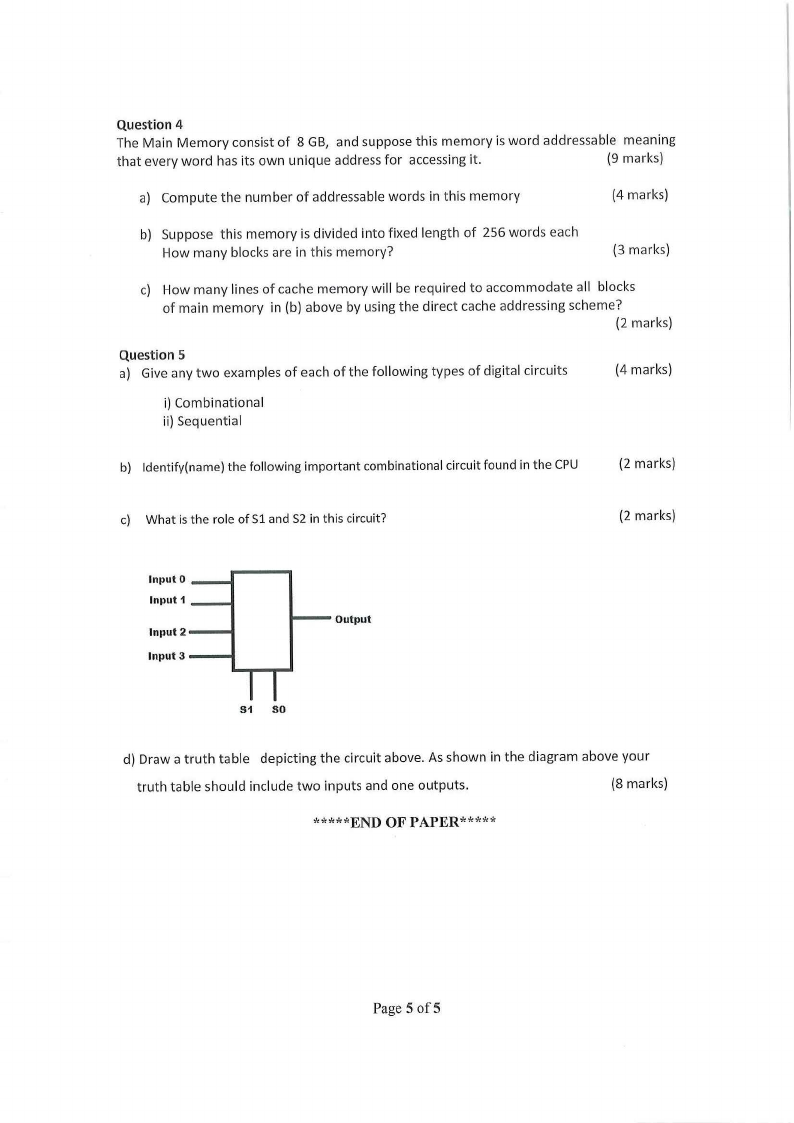

6 Page 6 |
▲back to top |
Question 4
The Main Memory consist of 8 GB, and suppose this memory is word addressable meaning
that every word has its own unique address for accessing it.
(9 marks)
a) Compute the number of addressable words in this memory
(4 marks)
b) Suppose this memory is divided into fixed length of 256 words each
How many blocks are in this memory?
(3 marks)
c) How many lines of cache memory will be required to accommodate all blocks
of main memory in (b) above by using the direct cache addressing scheme?
(2 marks)
Question 5
a) Give any two examples of each of the following types of digital circuits
(4 marks)
i) Combinational
ii) Sequential
b) ldentify(name) the following important combinational circuit found in the CPU
(2 marks)
c) What is the role of S1 and S2 in this circuit?
(2 marks)
lnputO ---1
lnput1 ---1
S1 SO
d) Draw a truth table depicting the circuit above. As shown in the diagram above your
truth table should include two inputs and one outputs.
(8 marks)
*****END OF PAPER*****
Page 5 of 5
