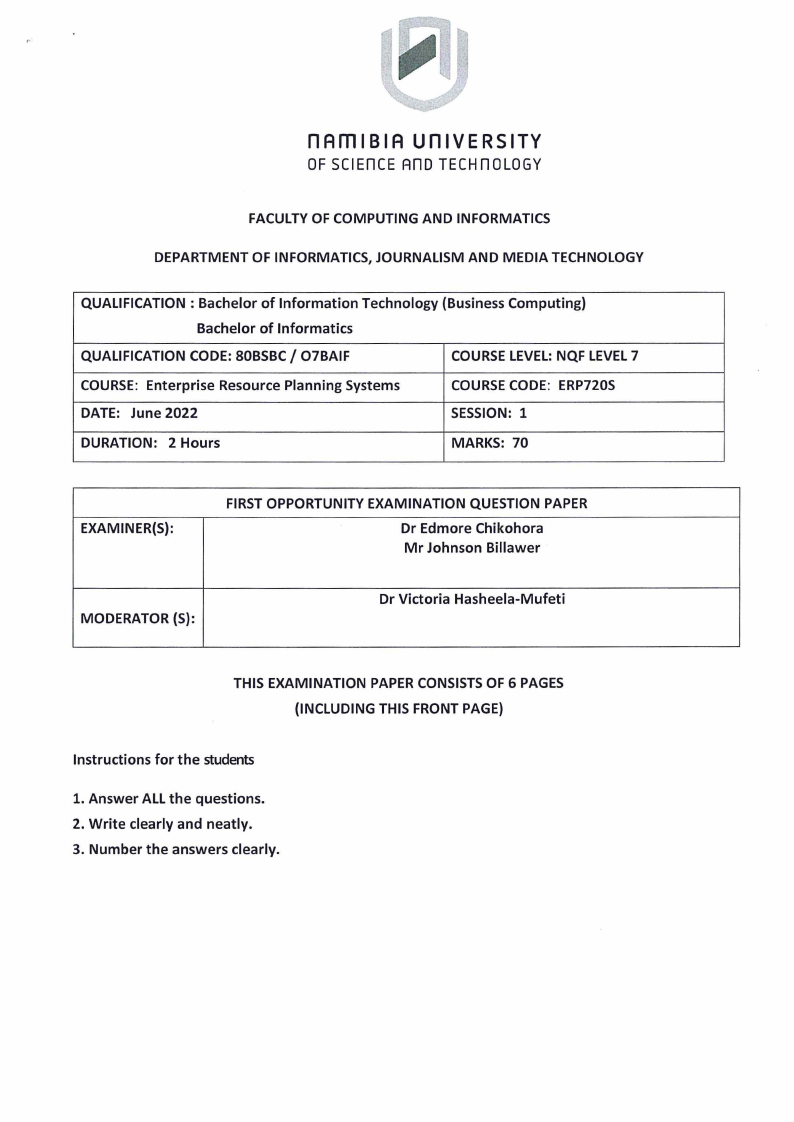

ERP720S - ENTERPRISE RESOURCE PLANNING - 1ST OPP - JUNE 2022 |
|
|
1 Page 1 |
▲back to top |
n Am I 8 I A Un IVE RS ITV
OF SCIEnCE Ano TECHn OLOGY
FACULTYOF COMPUTING AND INFORMATICS
DEPARTMENT OF INFORMATICS, JOURNALISM AND MEDIA TECHNOLOGY
QUALIFICATION : Bachelor of Information Technology (Business Computing)
Bachelor of Informatics
QUALIFICATION CODE: S0BSBC / O7BAIF
COURSE LEVEL: NQF LEVEL7
COURSE: Enterprise Resource Planning Systems
DATE: June 2022
COURSE CODE: ERP720S
SESSION: 1
DURATION: 2 Hours
MARKS: 70
EXAMINER{S):
FIRST OPPORTUNITY EXAMINATION QUESTION PAPER
Dr Edmore Chikohora
Mr Johnson Billawer
MODERATOR {S):
Dr Victoria Hasheela-Mufeti
THIS EXAMINATION PAPER CONSISTS OF 6 PAGES
{INCLUDING THIS FRONT PAGE)
Instructions for the students
1. Answer ALL the questions.
2. Write clearly and neatly.
3. Number the answers clearly.
|
|

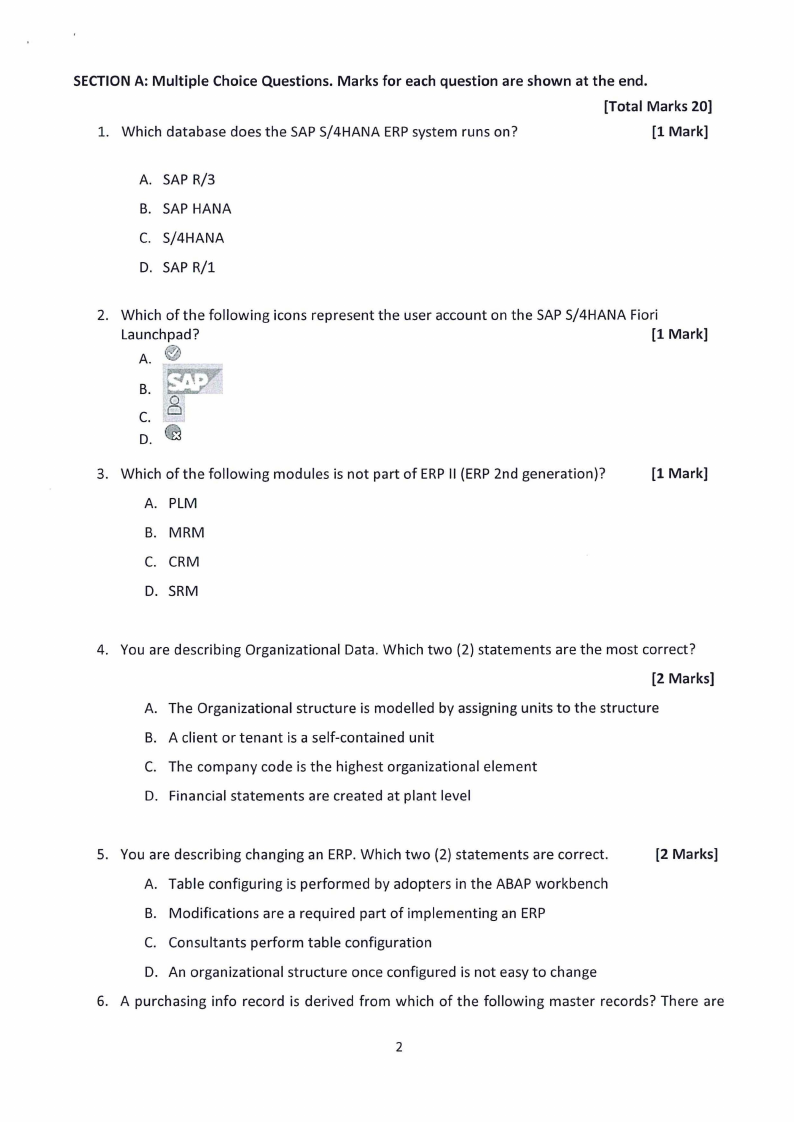

2 Page 2 |
▲back to top |
SECTIONA: Multiple Choice Questions. Marks for each question are shown at the end.
[Total Marks 20]
1. Which database does the SAPS/4HANA ERPsystem runs on?
[1 Mark]
A. SAP R/3
B. SAP HANA
C. S/4HANA
D. SAP R/1
2. Which of the following icons represent the user account on the SAP S/4HANA Fiori
Launchpad?
A. @
[1 Mark]
B.
C. 8
D.
3. Which of the following modules is not part of ERPII (ERP2nd generation)?
A. PLM
B. MRM
C. CRM
D. SRM
[1 Mark]
4. You are describing Organizational Data. Which two (2) statements are the most correct?
[2 Marks]
A. The Organizational structure is modelled by assigning units to the structure
B. A client or tenant is a self-contained unit
C. The company code is the highest organizational element
D. Financial statements are created at plant level
5. You are describing changing an ERP.Which two (2) statements are correct.
[2 Marks]
A. Table configuring is performed by adopters in the ABAP workbench
B. Modifications are a required part of implementing an ERP
C. Consultants perform table configuration
D. An organizational structure once configured is not easy to change
6. A purchasing info record is derived from which of the following master records? There are
2
|
|

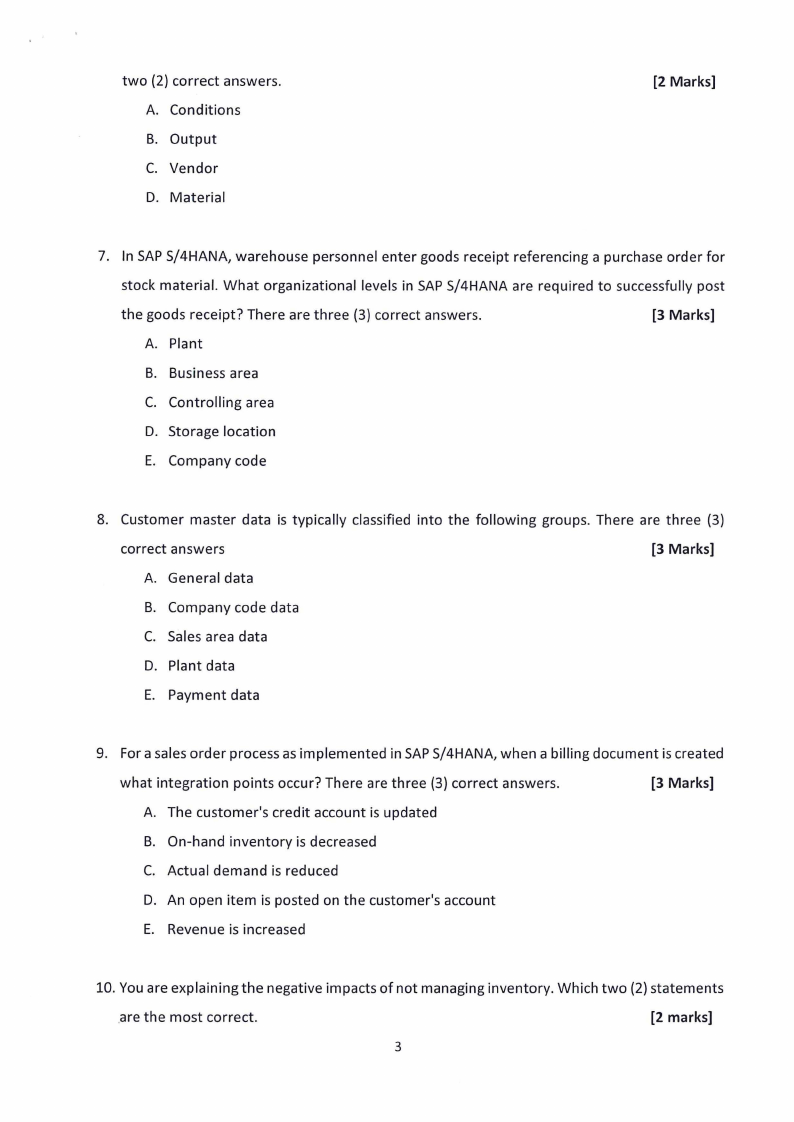

3 Page 3 |
▲back to top |
two (2) correct answers.
A. Conditions
B. Output
C. Vendor
D. Material
[2 Marks]
7. In SAP S/4HANA, warehouse personnel enter goods receipt referencing a purchase order for
stock material. What organizational levels in SAP S/4HANA are required to successfully post
the goods receipt? There are three (3) correct answers.
[3 Marks]
A. Plant
B. Business area
C. Controlling area
D. Storage location
E. Company code
8. Customer master data is typically classified into the following groups. There are three (3)
correct answers
[3 Marks]
A. General data
B. Company code data
C. Sales area data
D. Plant data
E. Payment data
9. For a sales order process as implemented in SAPS/4HANA, when a billing document is created
what integration points occur? There are three (3) correct answers.
[3 Marks]
A. The customer's credit account is updated
B. On-hand inventory is decreased
C. Actual demand is reduced
D. An open item is posted on the customer's account
E. Revenue is increased
10. You are explaining the negative impacts of not managing inventory. Which two (2) statements
.are the most correct.
[2 marks]
3
|
|
4 Page 4 |
▲back to top |
A. Poor profit margins
B. Inaccurate cash flow reports
C. Lost sales
D. Production delays
SECTIONB: Structured Questions. Marks for each question are shown at the end.
[Total Marks SO]
QUESTION 1
[22 Marks]
A} Read the scenario provided below and answer the questions that follow;
Pick & Pay is a large retail company originating from South Africa with subsidiaries in many other
African countries. In Namibia Pick & Pay has several branches in almost every region. Assume that
Pick & Pay Namibia management is considering implementing the SAP S/4HANA Retail module
across all its branches.
i}
State the six {6} phases of the Information Technology Infrastructure Library (ITIL}
application management process that Pick & Pay needs to follow when implementing its
ERPsystem.
[6 Marks]
ii}
During which application management phase will an organisation needs to produce a
detailed description (business blueprint} of how the company intends to run its business
processes with the ERPsoftware?
[2 Marks]
iii} Discuss any four (4) integration benefits that Pick & Pay can achieve by implementing an
ERPsystem.
[ 12 Marks]
iv} Based on the scenario provided in A}, do you classify Pick and Pay as an ERPVendor or an
ERPadopter? Justify your answer.
[ 2 Marks]
4
|
|

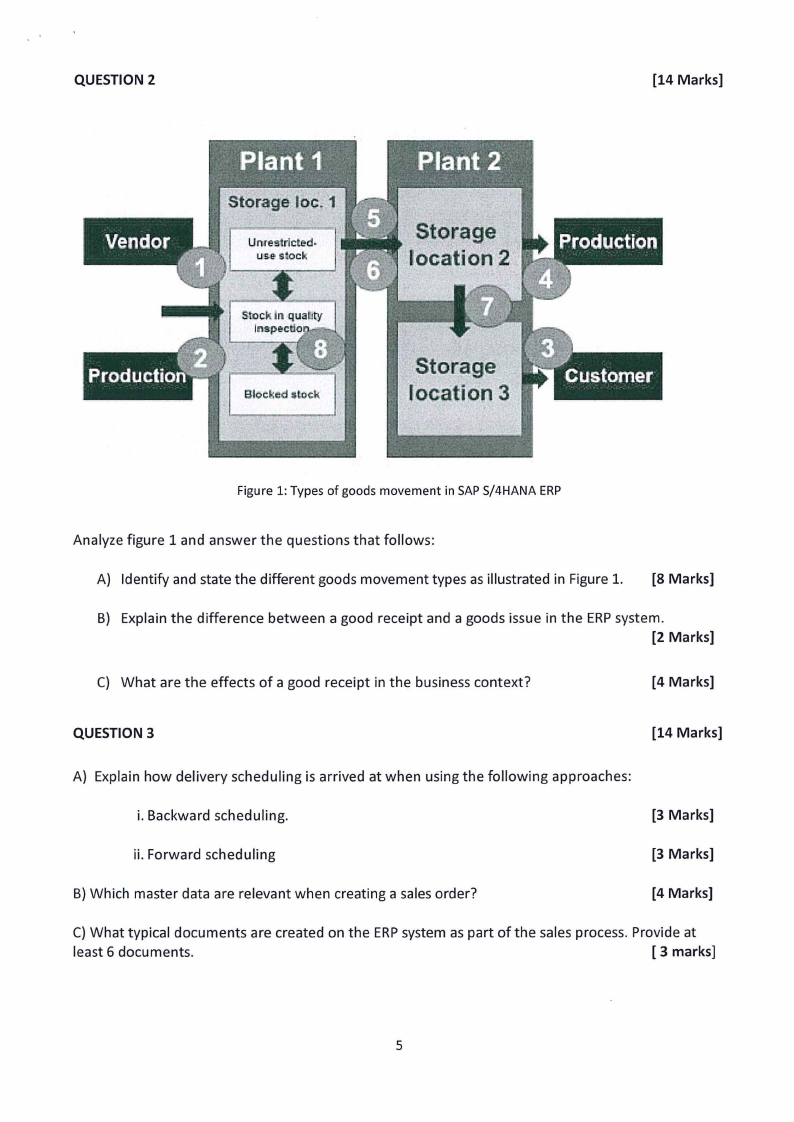

5 Page 5 |
▲back to top |
QUESTION 2
[14 Marks]
Stora9e
location 2
St,orage
location 3
Figure 1: Types of goods movement in SAP S/4HANA ERP
Analyze figure 1 and answer the questions that follows:
A) Identify and state the different goods movement types as illustrated in Figure 1. [8 Marks]
B) Explain the difference between a good receipt and a goods issue in the ERPsystem.
[2 Marks]
C) What are the effects of a good receipt in the business context?
[4 Marks]
QUESTION 3
[14 Marks]
A) Explain how delivery scheduling is arrived at when using the following approaches:
i. Backward scheduling.
[3 Marks]
ii. Forward scheduling
[3 Marks]
B) Which master data are relevant when creating a sales order?
[4 Marks]
C) What typical documents are created on the ERPsystem as part of the sales process. Provide at
least 6 documents.
[ 3 marks]
5
|
|

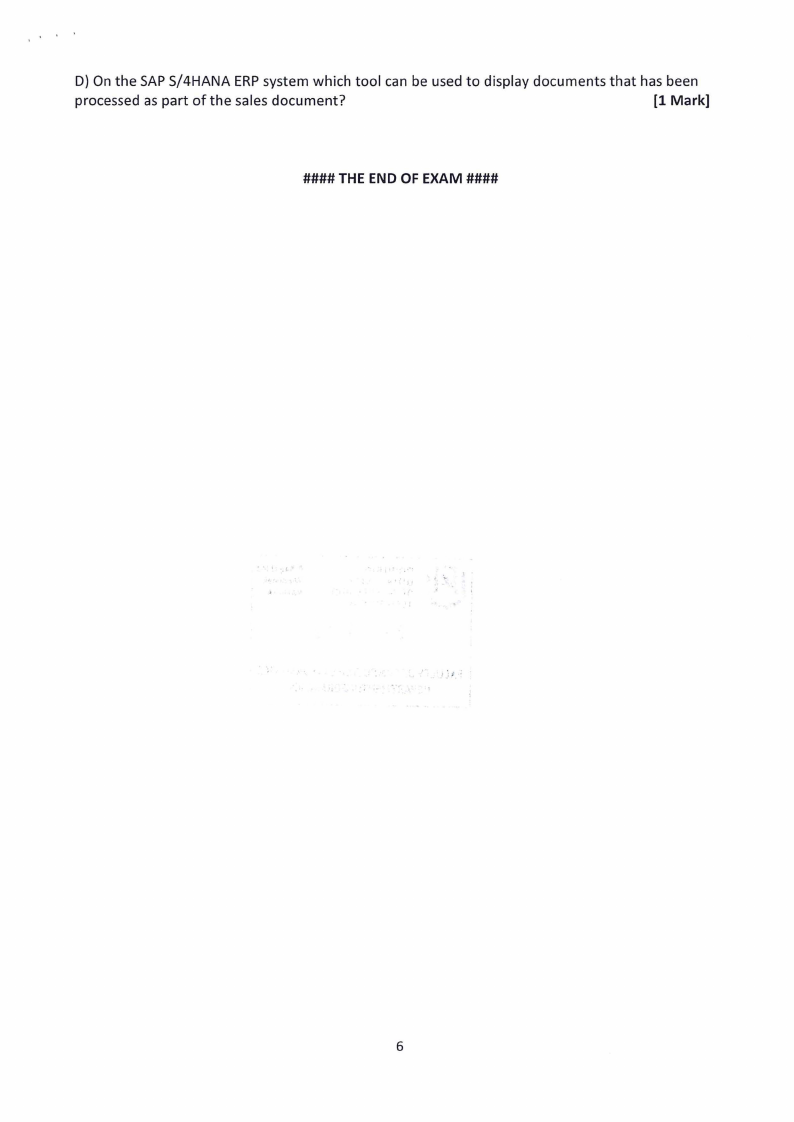

6 Page 6 |
▲back to top |
D) On the SAPS/4HANA ERPsystem which tool can be used to display documents that has been
processed as part of the sales document?
[1 Mark]
#### THE END OF EXAM####
6
