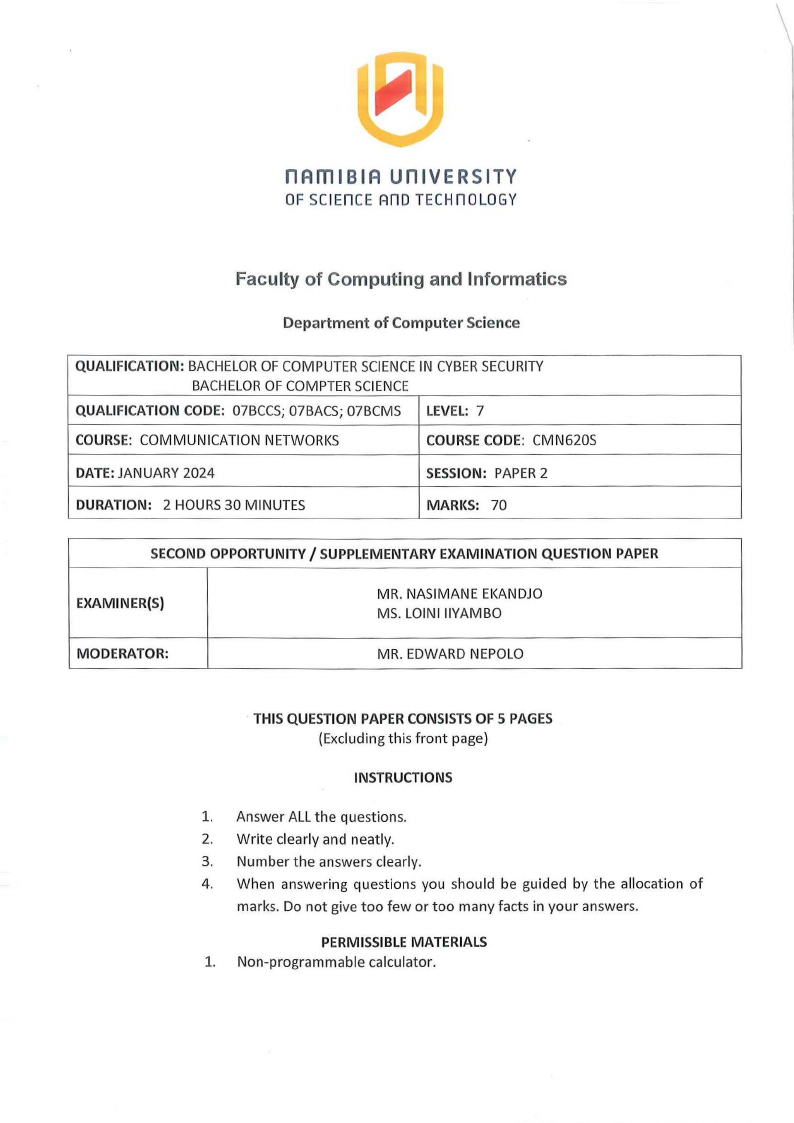

1 Page 1 |
▲back to top |
nAmlBIA UnlVERSITY
OF SCIEn CE Ano TECHnOLOGY
Faculty of Computing and Informatics
Department of Computer Science
QUALIFICATION:BACHELOROF COMPUTER SCIENCEIN CYBERSECURITY
BACHELOR OF COMPTER SCIENCE
QUALIFICATIONCODE: 07BCCS; 07BACS; 07BCMS LEVEL:7
COURSE:COMMUNICATION NETWORKS
COURSECODE: CMN620S
DATE:JANUARY 2024
SESSION: PAPER 2
DURATION: 2 HOURS 30 MINUTES
MARl<S: 70
SECONDOPPORTUNITY/ SUPPLEMENTARYEXAMINATION QUESTION PAPER
EXAMINER(S)
MR. NASIMANE El<ANDJO
MS. LOIN! IIYAMBO
MODERATOR:
MR. EDWARD NEPOLO
THIS QUESTION PAPERCONSISTSOF 5 PAGES
(Excluding this front page)
INSTRUCTIONS
1. Answer ALL the questions.
2. Write clearly and neatly.
3. Number the answers clearly.
4. When answering questions you should be guided by the allocation of
marks. Do not give too few or too many facts in your answers.
PERMISSIBLEMATERIALS
1. Non-programmable calculator.
|
|

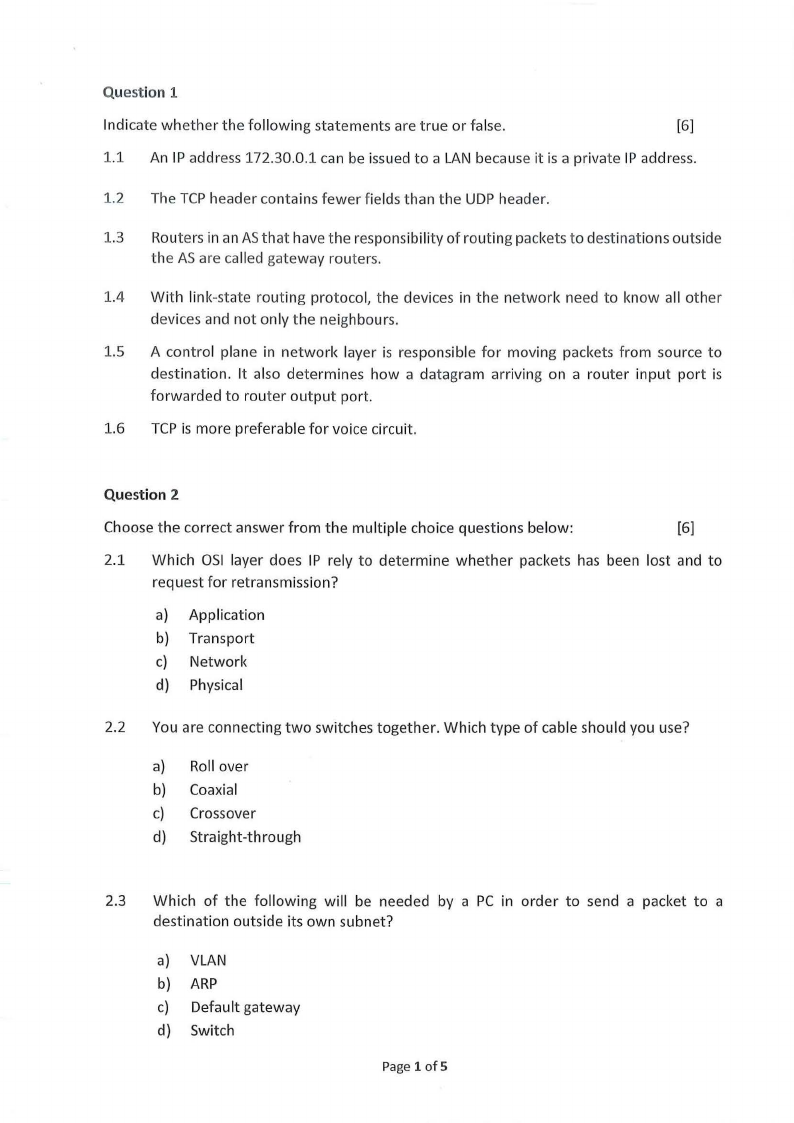

2 Page 2 |
▲back to top |
Question 1
Indicate whether the following statements are true or false.
[6]
1.1 An IP address 172.30.0.1 can be issued to a LAN because it is a private IP address.
1.2 The TCP header contains fewer fields than the UDP header.
1.3 Routers in an ASthat have the responsibility of routing packets to destinations outside
the AS are called gateway routers.
1.4 With link-state routing protocol, the devices in the network need to know all other
devices and not only the neighbours.
1.5 A control plane in network layer is responsible for moving packets from source to
destination. It also determines how a datagram arriving on a router input port is
forwarded to router output port.
1.6 TCP is more preferable for voice circuit.
Question 2
Choose the correct answer from the multiple choice questions below:
[6]
2.1 Which OSI layer does IP rely to determine whether packets has been lost and to
request for retransmission?
a) Application
b) Transport
c) Network
d) Physical
2.2 You are connecting two switches together. Which type of cable should you use?
a) Roll over
b) Coaxial
c) Crossover
d) Straight-through
2.3 Which of the following will be needed by a PC in order to send a packet to a
destination outside its own subnet?
a) VLAN
b) ARP
c) Default gateway
d) Switch
Page 1 of 5
|
|

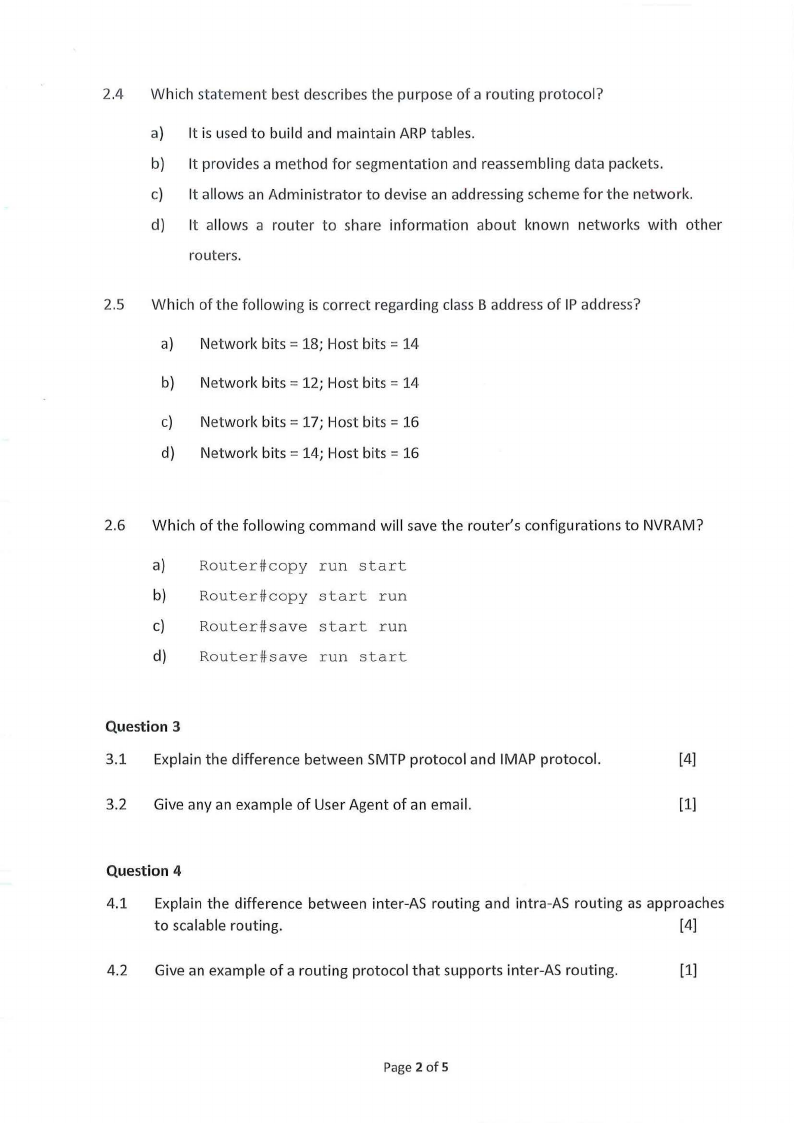

3 Page 3 |
▲back to top |
2.4 Which statement best describes the purpose of a routing protocol?
a) It is used to build and maintain ARPtables.
b) It provides a method for segmentation and reassembling data packets.
c) It allows an Administrator to devise an addressing scheme for the network.
d) It allows a router to share information about known networks with other
routers.
2.5 Which of the following is correct regarding class B address of IP address?
a) Network bits = 18; Host bits = 14
b) Network bits= 12; Host bits= 14
c) Network bits= 17; Host bits= 16
d) Network bits = 14; Host bits = 16
2.6 Which of the following command will save the router's configurations to NVRAM?
a) Router#copy
b) Router#copy
c) Router#save
d) Router#save
run start
start run
start run
run start
Question 3
3.1 Explain the difference between SMTP protocol and IMAP protocol.
[4]
3.2 Give any an example of User Agent of an email.
[1]
Question 4
4.1 Explain the difference between inter-AS routing and intra-AS routing as approaches
to scalable routing.
[4]
4.2 Give an example of a routing protocol that supports inter-AS routing.
[1]
Page 2 of 5
|
|

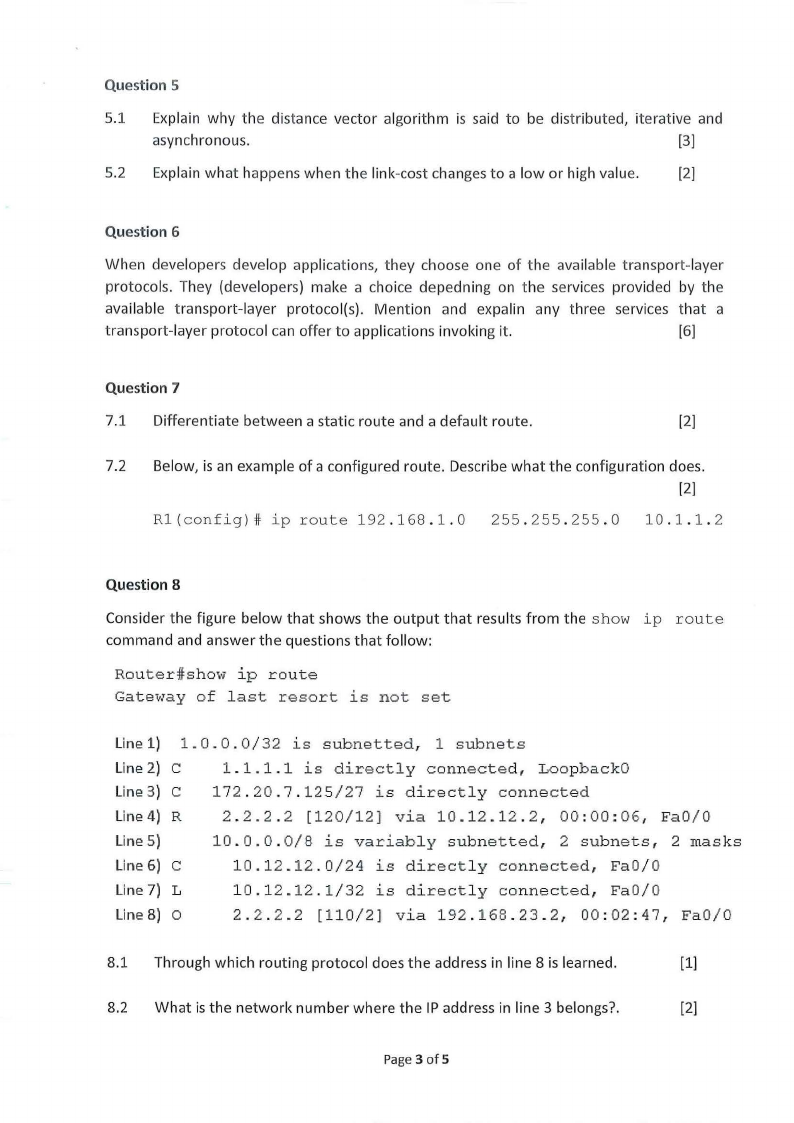

4 Page 4 |
▲back to top |
Question 5
5.1 Explain why the distance vector algorithm is said to be distributed, iterative and
asynchronous.
[3]
5.2 Explain what happens when the link-cost changes to a low or high value.
[2]
Question 6
When developers develop applications, they choose one of the available transport-layer
protocols. They (developers) make a choice depedning on the services provided by the
available transport-layer protocol(s). Mention and expalin any three services that a
transport-layer protocol can offer to applications invoking it.
[6]
Question 7
7.1 Differentiate between a static route and a default route.
[2]
7.2 Below, is an example of a configured route. Describe what the configuration does.
[2]
Rl(config)#
ip route 192.168.1.0
255.255.255.0
10.1.1.2
Question 8
Consider the figure below that shows the output that results from the show ip route
command and answer the questions that follow:
Router#show ip route
Gateway of last resort
1s not set
Line 1) 1.0.0.0/32
is subnetted,
1 subnets
Line 2) C
1.1.1.1 is directly
connected,
LoopbackO
Line 3) C 172.20.7.125/27
is directly
connected
Line 4) R
2.2.2.2
[120/12] via 10.12.12.2,
00:00:06, Fa0/0
Line 5)
10.0.0.0/8
is variably subnetted,
2 subnets, 2 masks
Line 6) C
10.12.12.0/24
is directly
connected,
Fa0/0
Line 7) L
10.12.12.1/32
is directly
connected,
Fa0/0
Line 8) O
2.2.2.2 [110/2] via 192.168.23.2,
00:02:47, Fa0/0
8.1 Through which routing protocol does the address in line 8 is learned.
[1]
8.2 What is the network number where the IP address in line 3 belongs?.
[2]
Page 3 of 5
|
|

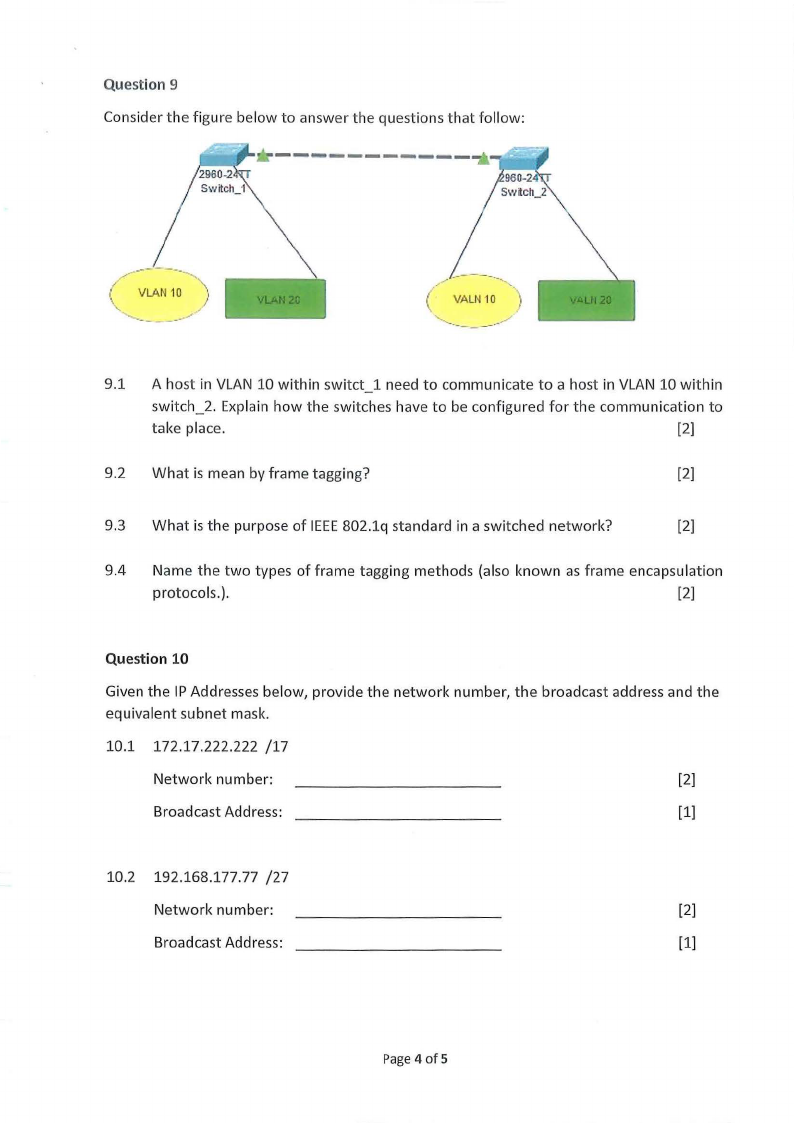

5 Page 5 |
▲back to top |
Question 9
Consider the figure below to answer the questions that follow:
(
) VLAM 10
---~
VLAN
VALN 10
LN
9.1 A host in VLAN 10 within switct_l need to communicate to a host in VLAN 10 within
switch_2. Explain how the switches have to be configured for the communication to
take place.
[2]
9.2 What is mean by frame tagging?
[2]
9.3 What is the purpose of IEEE802.lq standard in a switched network?
[2]
9.4 Name the two types of frame tagging methods (also known as frame encapsulation
protocols.).
[2]
Question 10
Given the IP Addresses below, provide the network number, the broadcast address and the
equivalent subnet mask.
10.1 172.17.222.222 /17
Network number:
[2]
Broadcast Address:
[1]
10.2 192.168.177.77 /27
Network number:
[2]
Broadcast Address:
[1]
Page 4 of 5
|
|

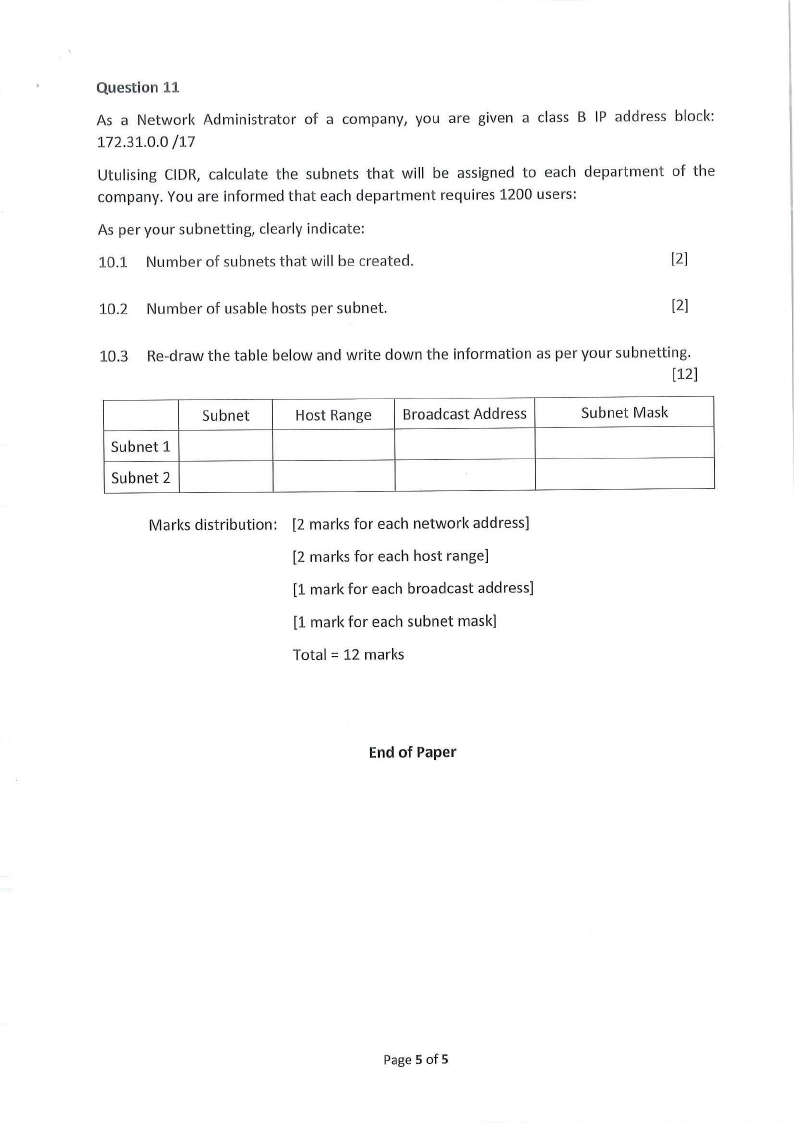

6 Page 6 |
▲back to top |
Question 11
As a Network Administrator of a company, you are given a class B IP address block:
172.31.0.0 /17
Utulising CIDR, calculate the subnets that will be assigned to each department of the
company. You are informed that each department requires 1200 users:
As per your subnetting, clearly indicate:
10.1 Number of subnets that will be created.
[2]
10.2 Number of usable hosts per subnet.
[2]
10.3 Re-draw the table below and write down the information as per your subnetting.
[12)
Subnet 1
Subnet 2
Subnet
Host Range Broadcast Address
Subnet Mask
Marks distribution: [2 marks for each network address]
[2 marks for each host range]
[1 mark for each broadcast address]
[1 mark for each subnet mask]
Total = 12 marks
End of Paper
Page5 of 5
