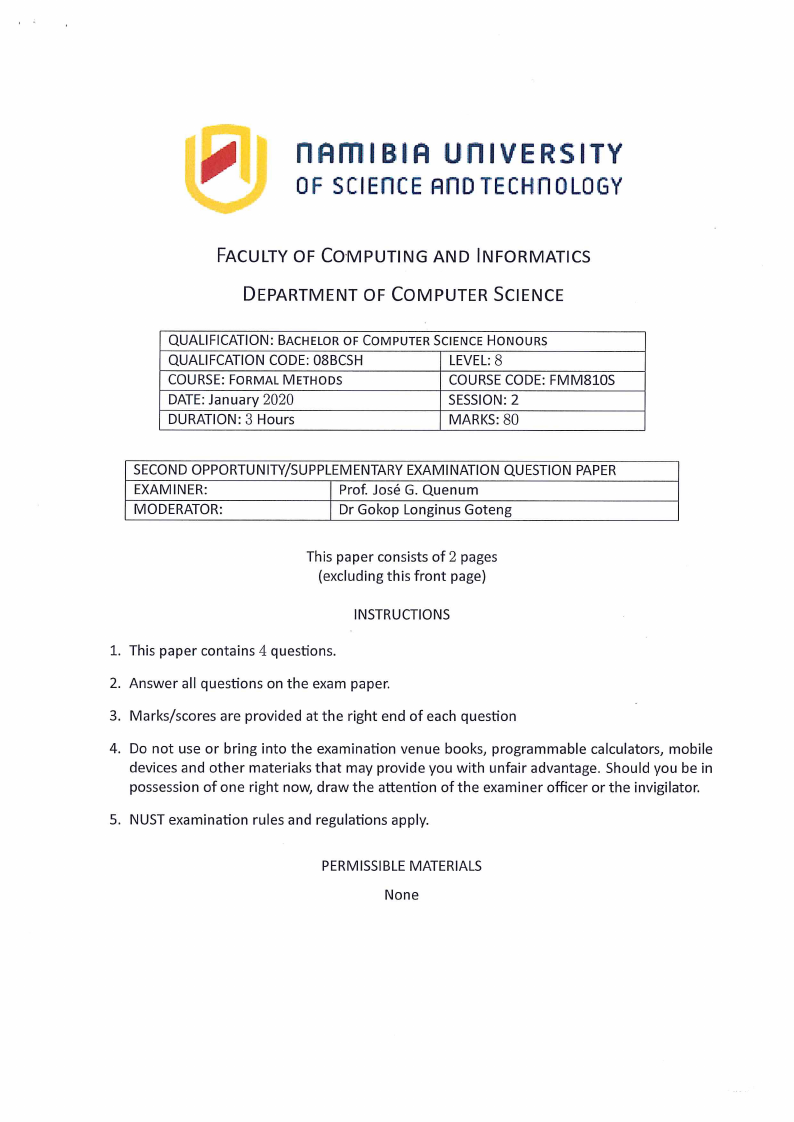

NAMIBIA UNIVERSITY
OF SCIENCE AND TECHNOLOGY
FACULTY OF COMPUTING AND INFORMATICS
DEPARTMENT OF COMPUTER SCIENCE
QUALIFICATION: BACHELOR OF COMPUTER SCIENCE HONOURS
QUALIFCATION CODE: O8BCSH
LEVEL: 8
COURSE: FORMAL METHODS
COURSE CODE: FMM810S
DATE: January 2020
SESSION: 2
DURATION: 3 Hours
MARKS: 80
SECOND OPPORTUNITY/SUPPLEMENTARY EXAMINATION QUESTION PAPER
EXAMINER:
Prof. José G. Quenum
MODERATOR:
Dr Gokop Longinus Goteng
This paper consists of 2 pages
(excluding this front page)
INSTRUCTIONS
. This paper contains 4 questions.
. Answer all questions on the exam paper.
. Marks/scores are provided at the right end of each question
. Do not use or bring into the examination venue books, programmable calculators, mobile
devices and other materiaks that may provide you with unfair advantage. Should you be in
possession of one right now, draw the attention of the examiner officer or the invigilator.
. NUST examination rules and regulations apply.
PERMISSIBLE MATERIALS
None
|
|
2 Page 2 |
▲back to top |

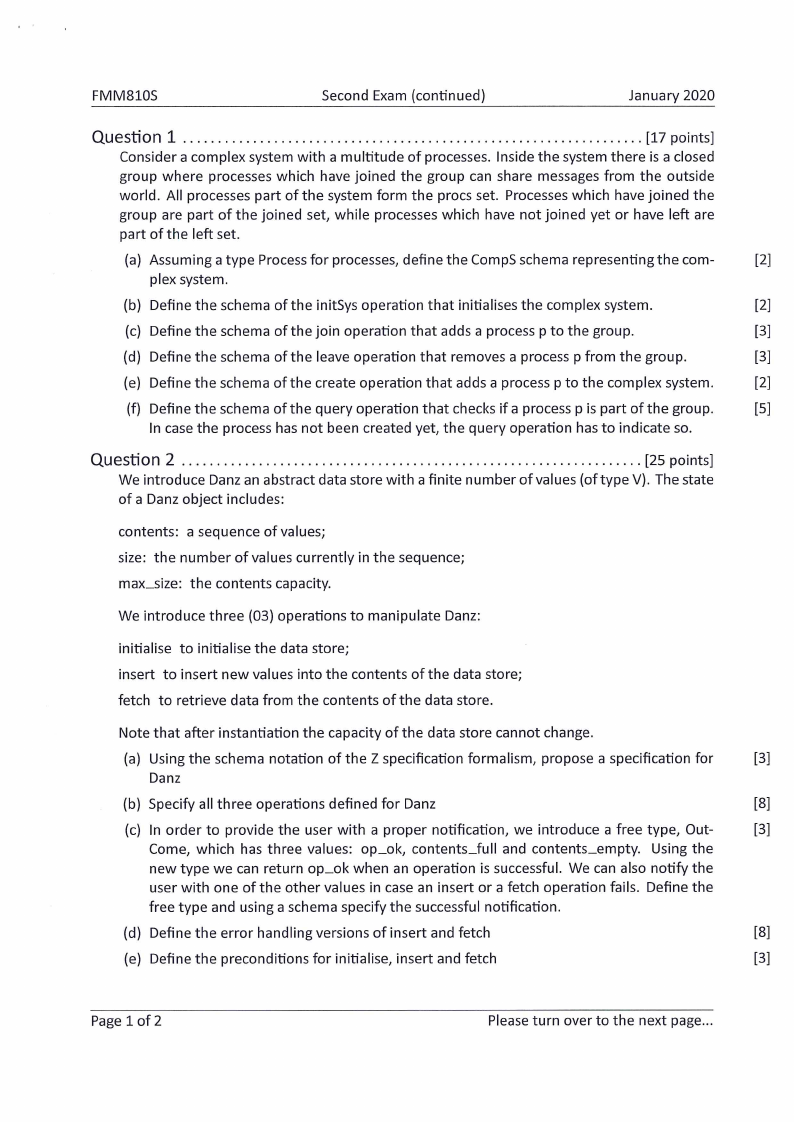

FMM8&10S
Second Exam (continued)
January 2020
OTT SSS)Cw (0) 9 it en
[17 points]
Consider a complex system with a multitude of processes. Inside the system there is a closed
group where processes which have joined the group can share messages from the outside
world. All processes part of the system form the procs set. Processes which have joined the
group are part of the joined set, while processes which have not joined yet or have left are
part of the left set.
(a) Assuming a type Process for processes, define the CompS schema representing the com-
[2]
plex system.
(b) Define the schema of the initSys operation that initialises the complex system.
[2]
(c) Define the schema of the join operation that adds a process p to the group.
[3]
(d) Define the schema of the leave operation that removes a process p from the group.
[3]
(e) Define the schema of the create operation that adds a process p to the complex system.
[2]
(f) Define the schema of the query operation that checks if a process p is part of the group.
[5]
In case the process has not been created yet, the query operation has to indicate so.
QUESTION 2 Lo ccc ceo e cece eee bee een een ee ee been eteeaneenes [25 points]
We introduce Danz an abstract data store with a finite number of values (of type V). The state
of a Danz object includes:
contents: a sequence of values;
size: the number of values currently in the sequence;
max_size: the contents capacity.
We introduce three (03) operations to manipulate Danz:
initialise to initialise the data store;
insert to insert new values into the contents of the data store;
fetch to retrieve data from the contents of the data store.
Note that after instantiation the capacity of the data store cannot change.
(a) Using the schema notation of the Z specification formalism, propose a specification for
[3]
Danz
(b) Specify all three operations defined for Danz
[8]
(c) In order to provide the user with a proper notification, we introduce a free type, Out-
[3]
Come, which has three values: op_ok, contents_full and contents_empty. Using the
new type we can return op_ok when an operation is successful. We can also notify the
user with one of the other values in case an insert or a fetch operation fails. Define the
free type and using a schema specify the successful notification.
(d) Define the error handling versions of insert and fetch
[8]
(e) Define the preconditions for initialise, insert and fetch
[3]
Page 1 of 2
Please turn over to the next page...
|
|
3 Page 3 |
▲back to top |

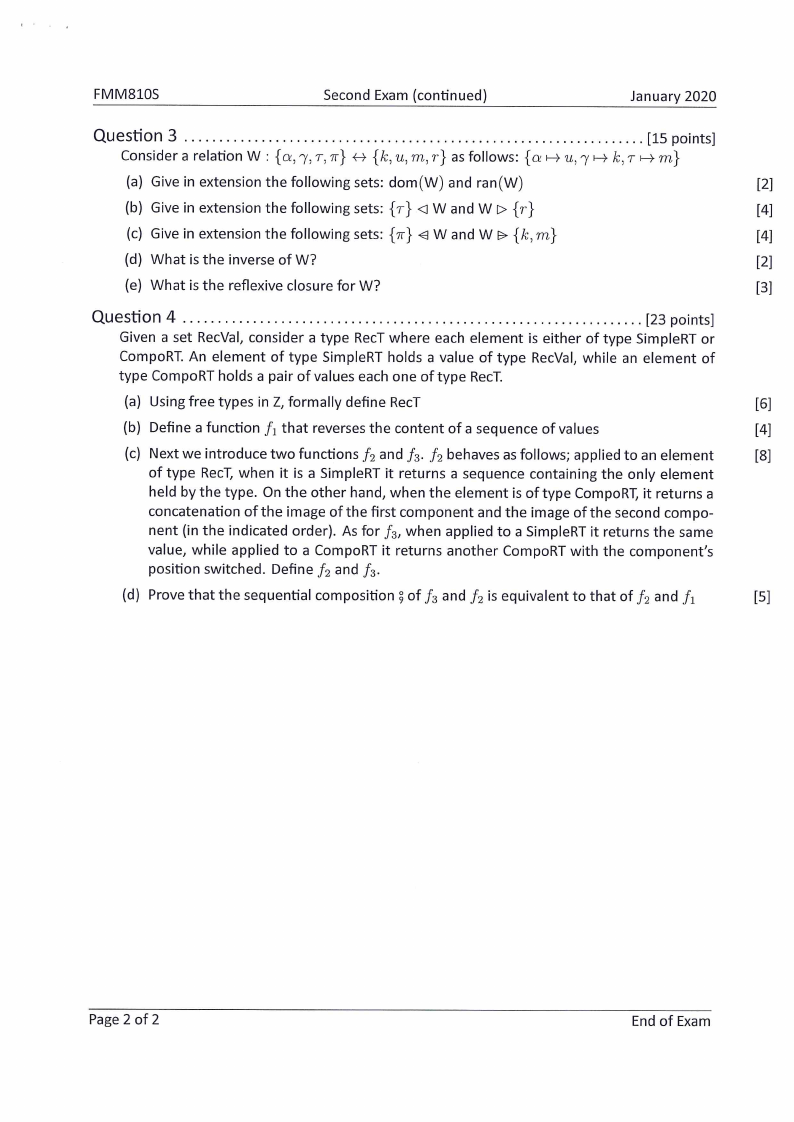

FMM810S
Second Exam (continued)
January 2020
QUESTION 3 oo.
cece cece ccc cece ence ence eee eeeeeneneutervnnrenennnnrs [15 points]
Consider a relation W : {a, 7,7, 7} + {k,u,m,1r} as follows: {a4 u,yHk,rHm}
(a) Give in extension the following sets: dom(W) and ran(W)
[2]
(b) Give in extension the following sets: {7} << W and WP {r}
[4]
(c) Give in extension the following sets: {7} < W and W & {k, m}
[4]
(d) What is the inverse of W?
[2]
(e) What is the reflexive closure for W?
[3]
QUESTION 4 oo
c ccc
ene eee e ence ee eeeeeteenenenntananes [23 points]
Given a set RecVal, consider a type RecT where each element is either of type SimpleRT or
CompoRT. An element of type SimpleRT holds a value of type RecVal, while an element of
type CompoRT holds a pair of values each one of type RecT.
(a) Using free types in Z, formally define RecT
(b) Define a function /; that reverses the content of a sequence of values
(c) Next we introduce two functions jf» and f3. jf behaves as follows; applied to an element
of type RecT, when it is a SimpleRT it returns a sequence containing the only element
held by the type. On the other hand, when the element is of type CompoRT, it returns a
concatenation of the image of the first component and the image of the second compo-
nent (in the indicated order). As for f3, when applied to a SimpleRT it returns the same
value, while applied to a CompoRT it returns another CompoRT with the component’s
position switched. Define f and fs.
(d) Prove that the sequential composition $ of f3 and fo is equivalent to that of f. and f;
[5]
Page 2 of 2
End of Exam
