FOF412S - FUNDAMENTALS OF FARM MECHANISATION - 1ST OPP - NOV 2024 |
|
|
1 Page 1 |
▲back to top |

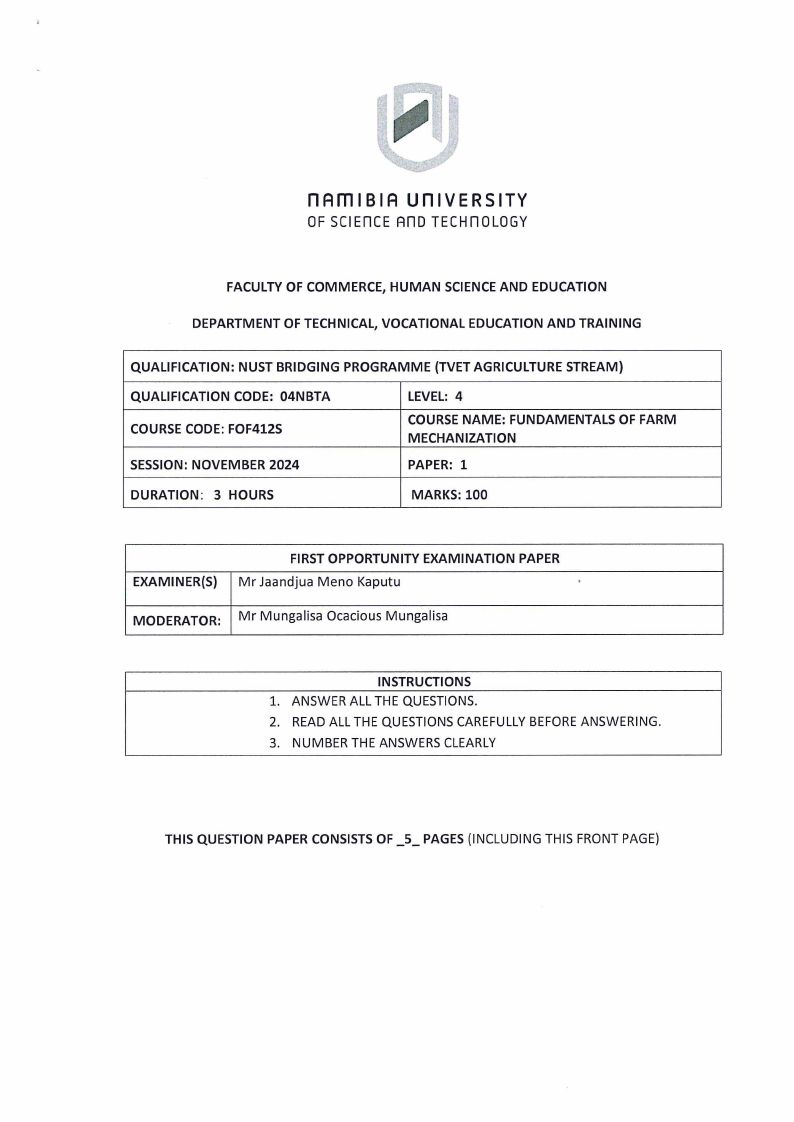

nAmlBIA unlVERSITY
OF SCIEnCE Ano TECHnOLOGY
FACULTY OF COMMERCE, HUMAN SCIENCEAND EDUCATION
DEPARTMENT OF TECHNICAL, VOCATIONAL EDUCATION AND TRAINING
QUALIFICATION: NUST BRIDGING PROGRAMME (TVET AGRICULTURE STREAM)
QUALIFICATION CODE: 04NBTA
COURSE CODE: FOF412S
SESSION: NOVEMBER 2024
LEVEL: 4
COURSE NAME: FUNDAMENTALS OF FARM
MECHANIZATION
PAPER: 1
DURATION: 3 HOURS
MARKS: 100
EXAMINER(S)
. FIRST OPPORTUNITY EXAMINATION PAPER
Mr Jaandjua Meno Kaputu
MODERATOR: Mr Mungalisa Ocacious Mungalisa
INSTRUCTIONS
1. ANSWER ALL THE QUESTIONS.
2. READALL THE QUESTIONSCAREFULLYBEFOREANSWERING.
3. NUMBER THE ANSWERSCLEARLY
THIS QUESTION PAPER CONSISTS OF _5_ PAGES (INCLUDING THIS FRONTPAGE)
|
|
2 Page 2 |
▲back to top |

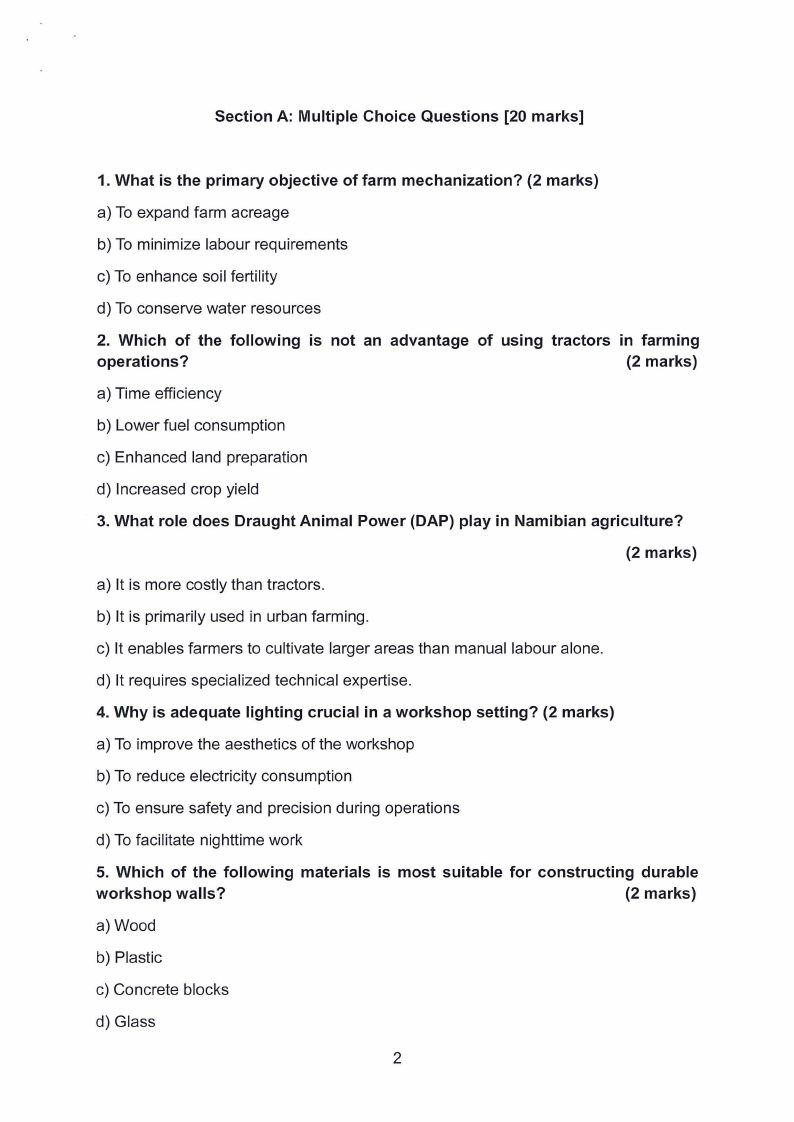

Section A: Multiple Choice Questions [20 marks]
1. What is the primary objective of farm mechanization? (2 marks)
a) To expand farm acreage
b) To minimize labour requirements
c) To enhance soil fertility
d) To conserve water resources
2. Which of the following is not an advantage of using tractors in farming
operations?
(2 marks)
a) Time efficiency
b) Lower fuel consumption
c) Enhanced land preparation
d) Increased crop yield
3. What role does Draught Animal Power (DAP) play in Namibian agriculture?
(2 marks)
a) It is more costly than tractors.
b) It is primarily used in urban farming.
c) It enables farmers to cultivate larger areas than manual labour alone.
d) It requires specialized technical expertise.
4. Why is adequate lighting crucial in a workshop setting? (2 marks)
a) To improve the aesthetics of the workshop
b) To reduce electricity consumption
c) To ensure safety and precision during operations
d) To facilitate nighttime work
5. Which of the following materials is most suitable for constructing durable
workshop walls?
(2 marks)
a) Wood
b) Plastic
c) Concrete blocks
d) Glass
2
|
|
3 Page 3 |
▲back to top |

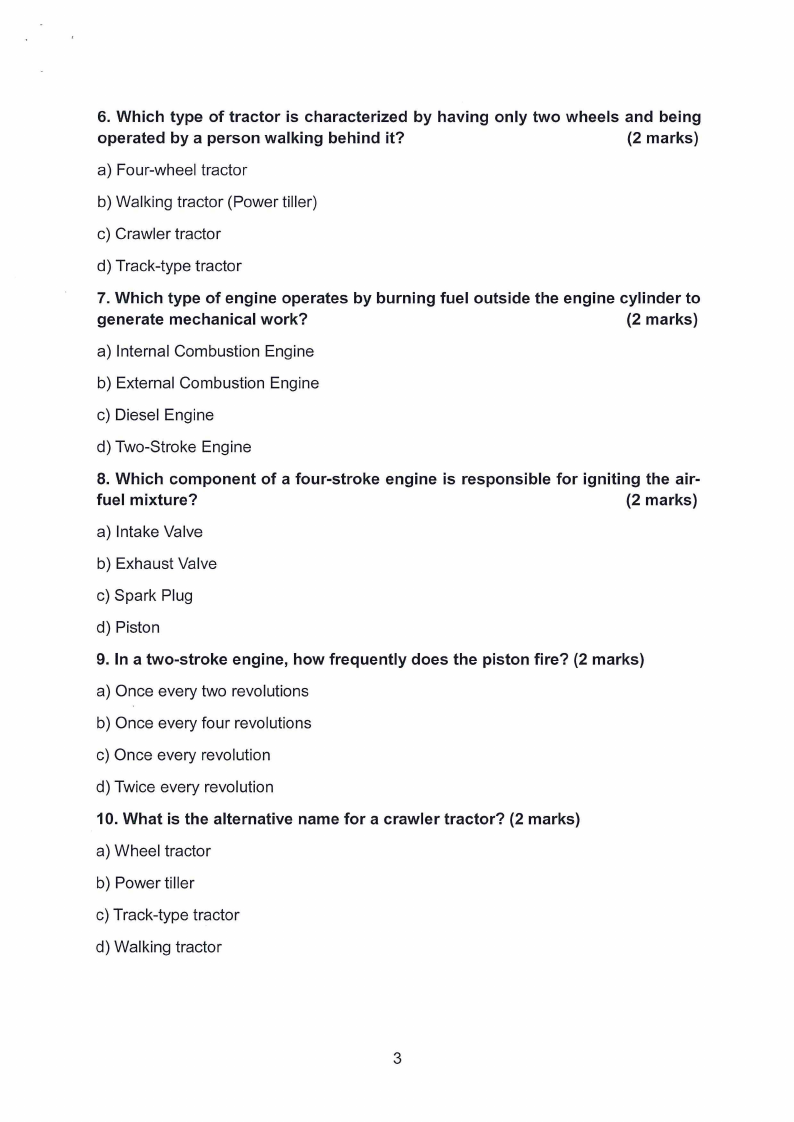

6. Which type of tractor is characterized by having only two wheels and being
operated by a person walking behind it?
(2 marks)
a) Four-wheel tractor
b) Walking tractor (Power tiller)
c) Crawler tractor
d) Track-type tractor
7. Which type of engine operates by burning fuel outside the engine cylinder to
generate mechanical work?
(2 marks)
a) Internal Combustion Engine
b) External Combustion Engine
c) Diesel Engine
d) Two-Stroke Engine
8. Which component of a four-stroke engine is responsible for igniting the air-
fuel mixture?
(2 marks)
a) Intake Valve
b) Exhaust Valve
c) Spark Plug
d) Piston
9. In a two-stroke engine, how frequently does the piston fire? (2 marks)
a) Once every two revolutions
b) Once every four revolutions
c) Once every revolution
d) Twice every revolution
10. What is the alternative name for a crawler tractor? (2 marks)
a) Wheel tractor
b) Power tiller
c) Track-type tractor
d) Walking tractor
3
|
|
4 Page 4 |
▲back to top |

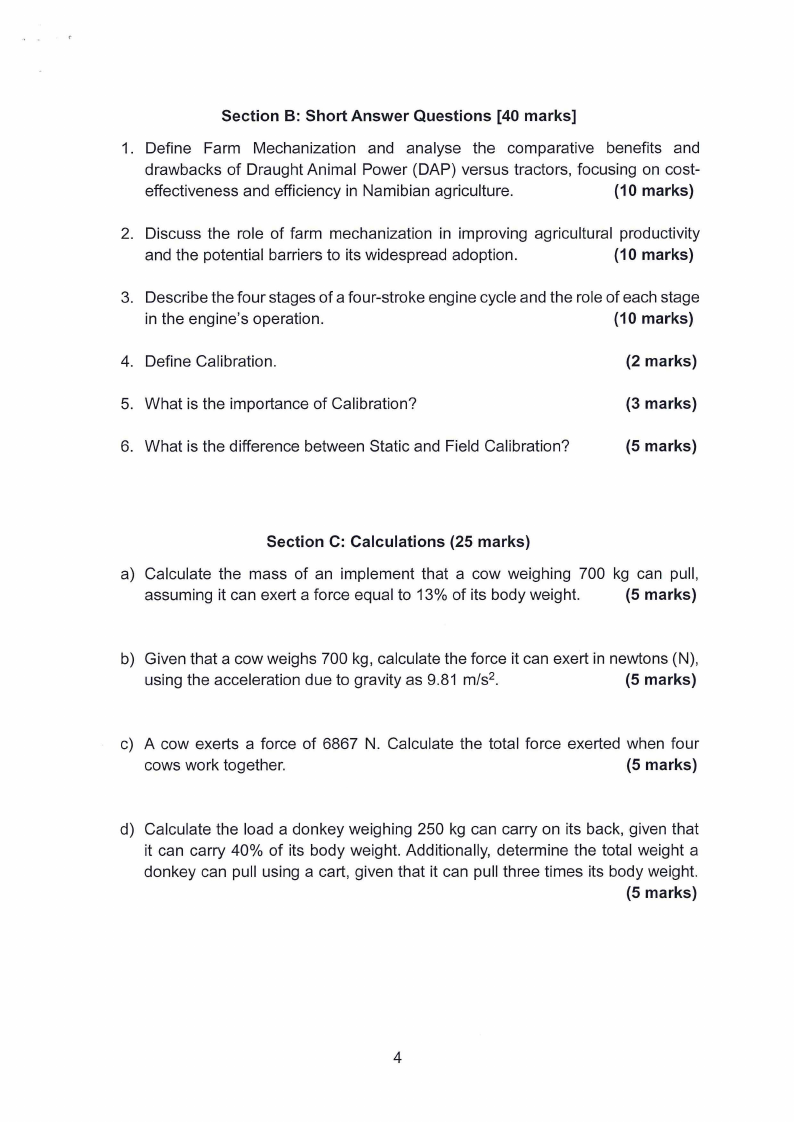

Section B: Short Answer Questions [40 marks]
1. Define Farm Mechanization and analyse the comparative benefits and
drawbacks of Draught Animal Power (OAP) versus tractors, focusing on cost-
effectiveness and efficiency in Namibian agriculture.
(10 marks)
2. Discuss the role of farm mechanization in improving agricultural productivity
and the potential barriers to its widespread adoption.
(10 marks)
3. Describe the four stages of a four-stroke engine cycle and the role of each stage
in the engine's operation.
(10 marks)
4. Define Calibration.
(2 marks)
5. What is the importance of Calibration?
(3 marks)
6. What is the difference between Static and Field Calibration?
(5 marks)
Section C: Calculations (25 marks)
a) Calculate the mass of an implement that a cow weighing 700 kg can pull,
assuming it can exert a force equal to 13% of its body weight.
(5 marks)
b) Given that a cow weighs 700 kg, calculate the force it can exert in newtons (N),
using the acceleration due to gravity as 9.81 m/s2.
(5 marks)
c) A cow exerts a force of 6867 N. Calculate the total force exerted when four
cows work together.
(5 marks)
d) Calculate the load a donkey weighing 250 kg can carry on its back, given that
it can carry 40% of its body weight. Additionally, determine the total weight a
donkey can pull using a cart, given that it can pull three times its body weight.
(5 marks)
4
|
|
5 Page 5 |
▲back to top |

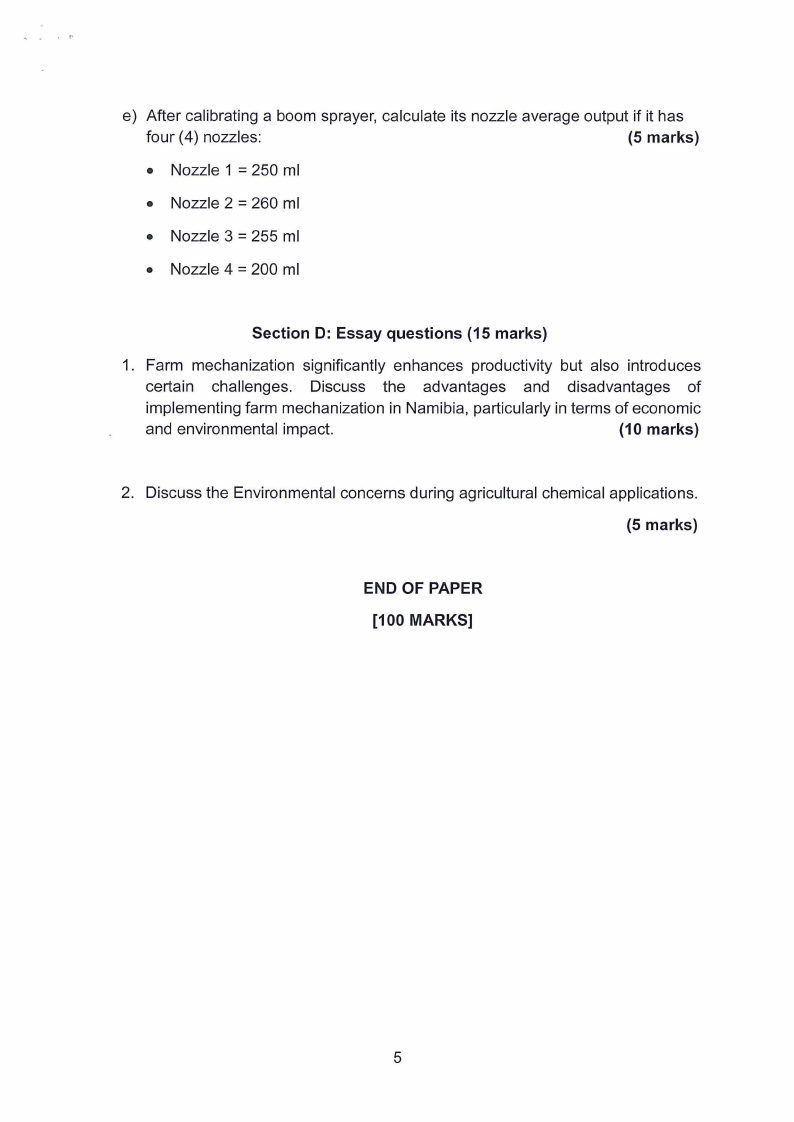

e) After calibrating a boom sprayer, calculate its nozzle average output if it has
four (4) nozzles:
(5 marks)
• Nozzle 1 = 250 ml
• Nozzle 2 = 260 ml
• Nozzle 3 = 255 ml
• Nozzle 4 = 200 ml
Section D: Essay questions (15 marks)
1. Farm mechanization significantly enhances productivity but also introduces
certain challenges. Discuss the advantages and disadvantages of
implementing farm mechanization in Namibia, particularly in terms of economic
and environmental impact.
(10 marks)
2. Discuss the Environmental concerns during agricultural chemical applications.
(5 marks)
END OF PAPER
[100 MARKS]
5
