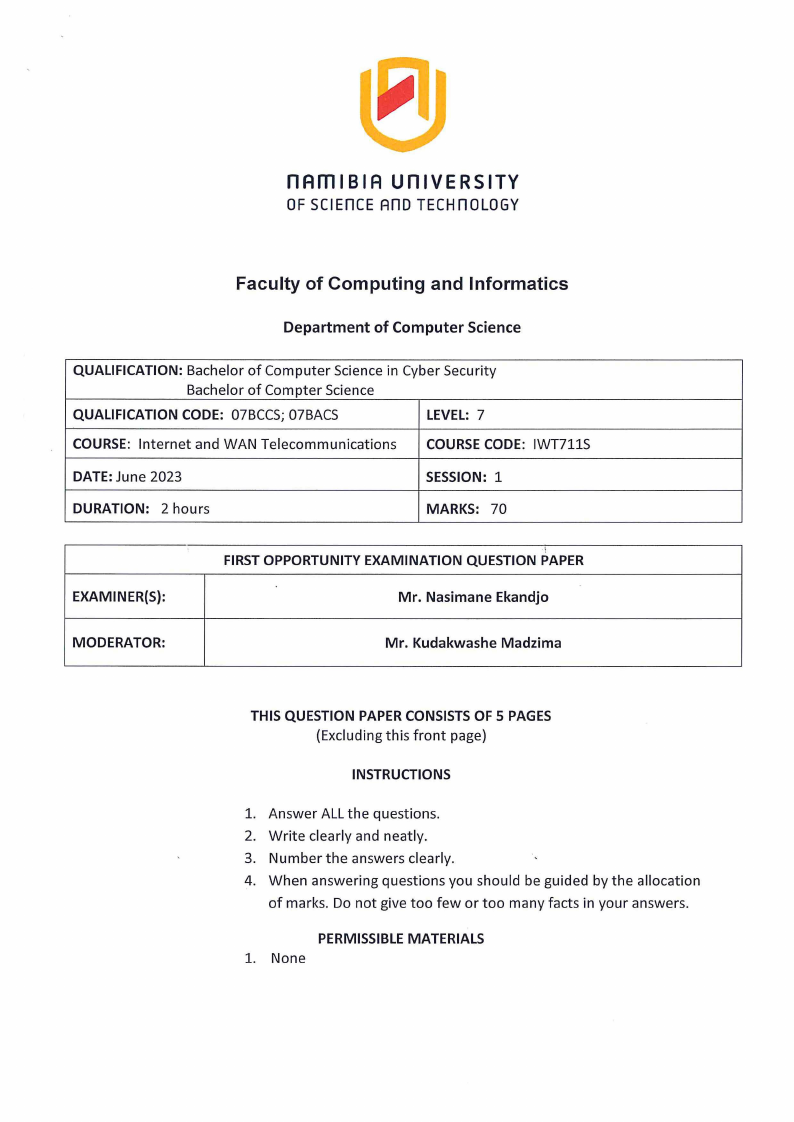

nAmlBIA UnlVERSITY
OF SCIEnCE Ano TECHn OLOGY
Faculty of Computing and Informatics
Department of Computer Science
QUALIFICATION: Bachelor of Computer Science in Cyber Security
Bachelor of Compter Science
QUALIFICATION CODE: 07BCCS;07BACS
LEVEL: 7
COURSE: Internet and WAN Telecommunications
COURSE CODE: IWT711S
DATE: June 2023
SESSION: 1
DURATION: 2 hours
MARKS: 70
EXAMINER(S):
·I
FIRST OPPORTUNITY EXAMINATION QUESTION PAPER
Mr. Nasimane Ekandjo
MODERATOR:
Mr. Kudakwashe Madzima
THIS QUESTION PAPER CONSISTS OF 5 PAGES
(Excluding this front page)
INSTRUCTIONS
1. Answer ALL the questions.
2. Write clearly and neatly.
3. Number the answers clearly.
4. When answering questions you should be guided by the allocation
of marks. Do not give too few or too many facts in your answers.
PERMISSIBLE MATERIALS
1. None
|
|
2 Page 2 |
▲back to top |

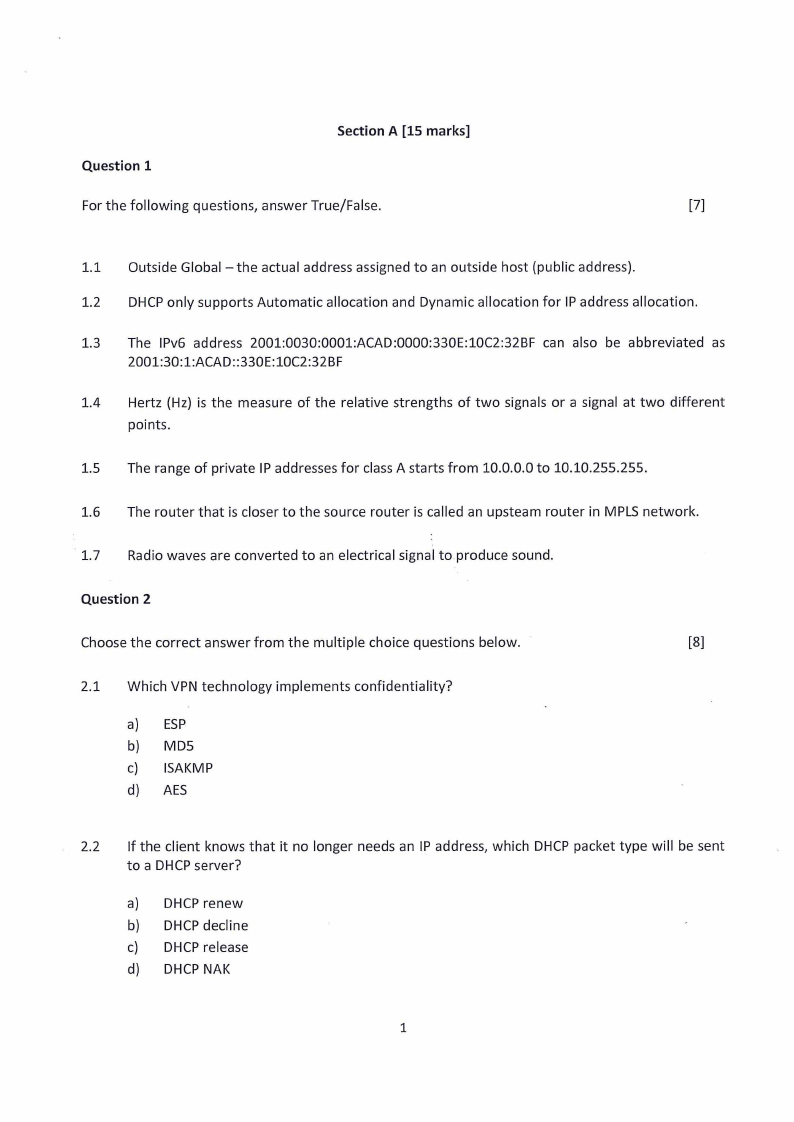

Question 1
Section A [15 marks]
For the following questions, answer True/False.
[7]
1.1 Outside Global - the actual address assigned to an outside host (public address).
1.2 DHCPonly supports Automatic allocation and Dynamic allocation for IP address allocation.
1.3 The IPv6 address 2001:0030:0001:ACAD:0000:330E:10C2:32BF can also be abbreviated as
2001:30:1:ACAD::330E:10C2:32BF
1.4 Hertz (Hz) is the measure of the relative strengths of two signals or a signal at two different
points.
1.5 The range of private IP addresses for class A starts from 10.0.0.0 to 10.10.255.255.
1.6 The router that is closer to the source router is called an upsteam router in MPLS network.
1.7 Radio waves are converted to an electrical signal to produce sound.
Question 2
Choose the correct answer from the multiple choice questions below.
[8]
2.1 Which VPN technology implements confidentiality?
a) ESP
b) MD5
c) ISAKMP
d) AES
2.2 If the client knows that it no longer needs an IP address, which DHCPpacket type will be sent
to a DHCPserver?
a) DHCP renew
b) DHCPdecline
c) DHCP release
d) DHCP NAK
1
|
|
3 Page 3 |
▲back to top |

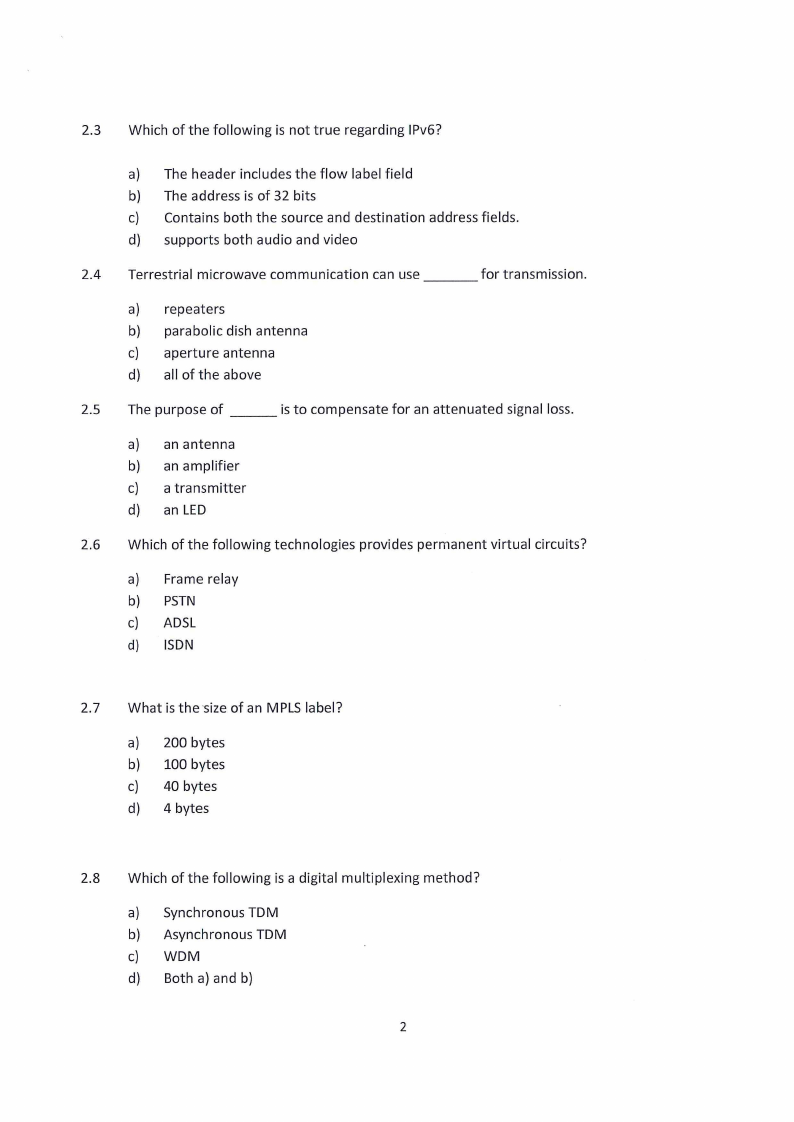

2.3 Which of the following is not true regarding IPv6?
a) The header includes the flow label field
b) The address is of 32 bits
c) Contains both the source and destination address fields.
d) supports both audio and video
2.4 Terrestrial microwave communication can use ___
for transmission.
a) repeaters
b) parabolic dish antenna
c) aperture antenna
d) all of the above
2.5 The purpose of ---
a) an antenna
b) an amplifier
c) a transmitter
d) an LED
is to compensate for an attenuated signal loss.
2.6 Which of the following technologies provides permanent virtual circuits?
a) Frame relay
b) PSTN
c) ADSL
d) ISDN
2.7 What is the•size of an MPLS label?
a) 200 bytes
b) 100 bytes
c) 40 bytes
d) 4 bytes
2.8 Which of the following is a digital multiplexing method?
a) Synchronous TDM
b) Asynchronous TDM
c) WDM
d) Both a) and b)
2
|
|
4 Page 4 |
▲back to top |

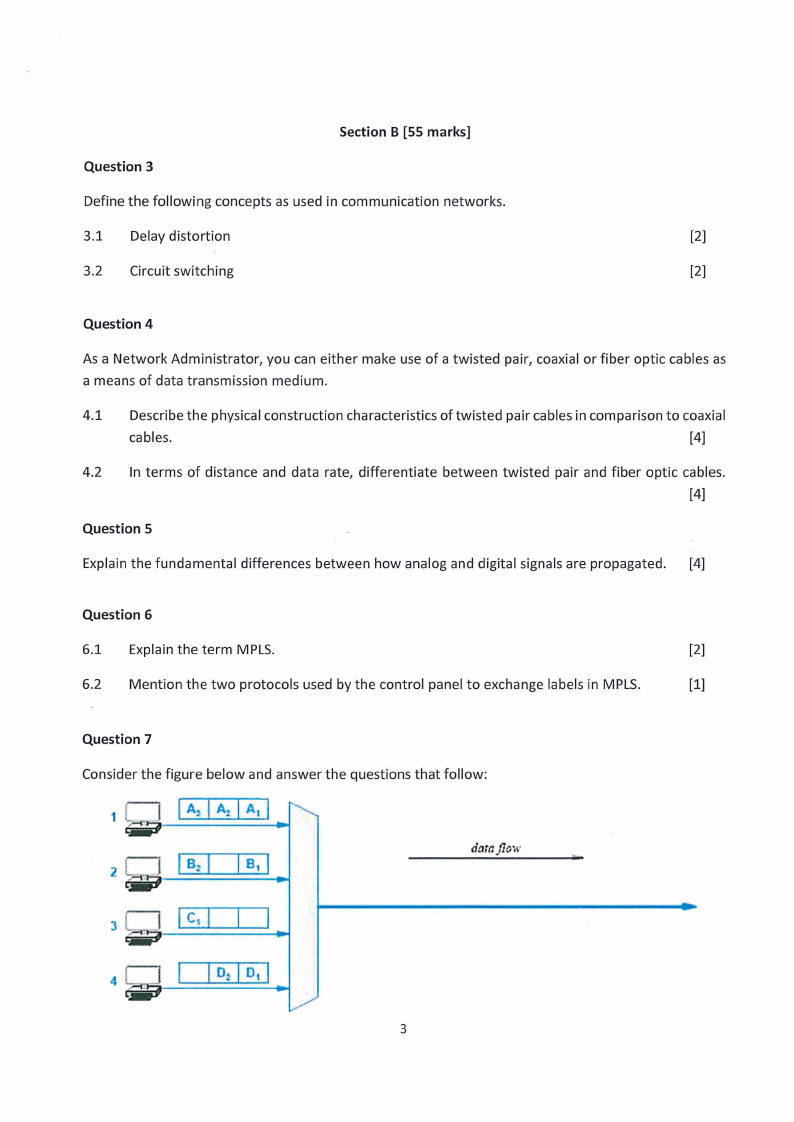

Section B [55 marks]
Question 3
Define the following concepts as used in communication networks.
3.1 Delay distortion
[2]
3.2 Circuit switching
[2]
Question 4
As a Network Administrator, you can either make use of a twisted pair, coaxial or fiber optic cables as
a means of data transmission medium.
4.1 Describe the physical construction characteristics of twisted pair cables in comparison to coaxial
cables.
[4]
4.2 In terms of distance and data rate, differentiate between twisted pair and fiber optic cables.
[4]
Question 5
Explain the fundamental differences between how analog and digital signals are propagated. [4]
Question 6
6.1 Explain the term MPLS.
[2]
6.2 Mention the two protocols used by the control panel to exchange labels in MPLS.
[1]
Question 7
Consider the figure below and answer the questions that follow:
I8 I I81 I
2.-<'.:'.l!..nt-------...i
3
Ic, I
4
damflow
3
|
|
5 Page 5 |
▲back to top |

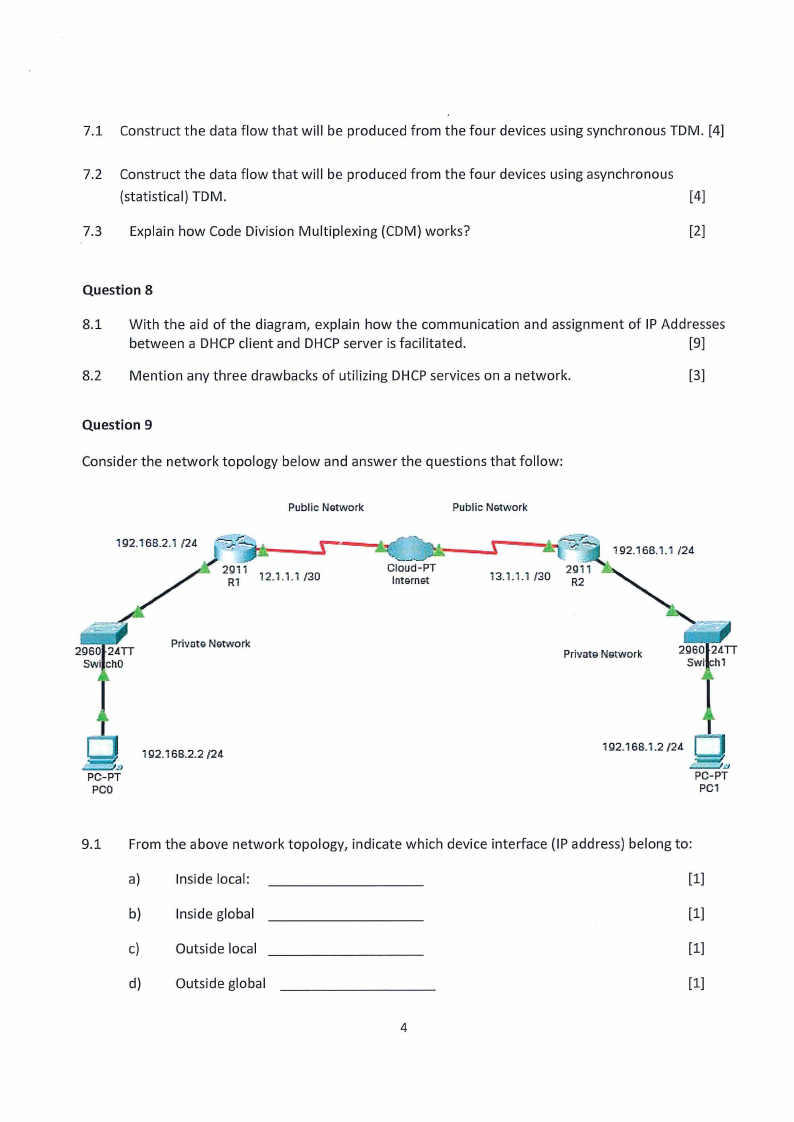

7.1 Construct the data flow that will be produced from the four devices using synchronous TDM. [4]
7.2 Construct the data flow that will be produced from the four devices using asynchronous
(statistical) TDM.
[4]
7.3 Explain how Code Division Multiplexing (CDM) works?
[2]
Question 8
8.1 With the aid of the diagram, explain how the communication and assignment of IP Addresses
between a DHCPclient and DHCPserver is facilitated.
[9]
8.2 Mention any three drawbacks of utilizing DHCPservices on a network.
[3]
Question 9
Consider the network topology below and answer the questions that follow:
192.168.2.1 /24
Public Network
Public Network
12 .1. 1.1 /30
Internet
13.1.1.1 /30
192.168.1.1 /24
2960 24TT
Swi ch0
PrivatG Network
Private Network
192.168.2.2 /24
192.168.1.2 /24
~,:)
PC-PT
PC1
9.1 From the above network topology, indicate which device interface (IP address) belong to:
a)
Inside local:
[1]
b)
Inside global
[1]
c)
Outside local
[1]
d)
Outside global
[1]
4
|
|
6 Page 6 |
▲back to top |

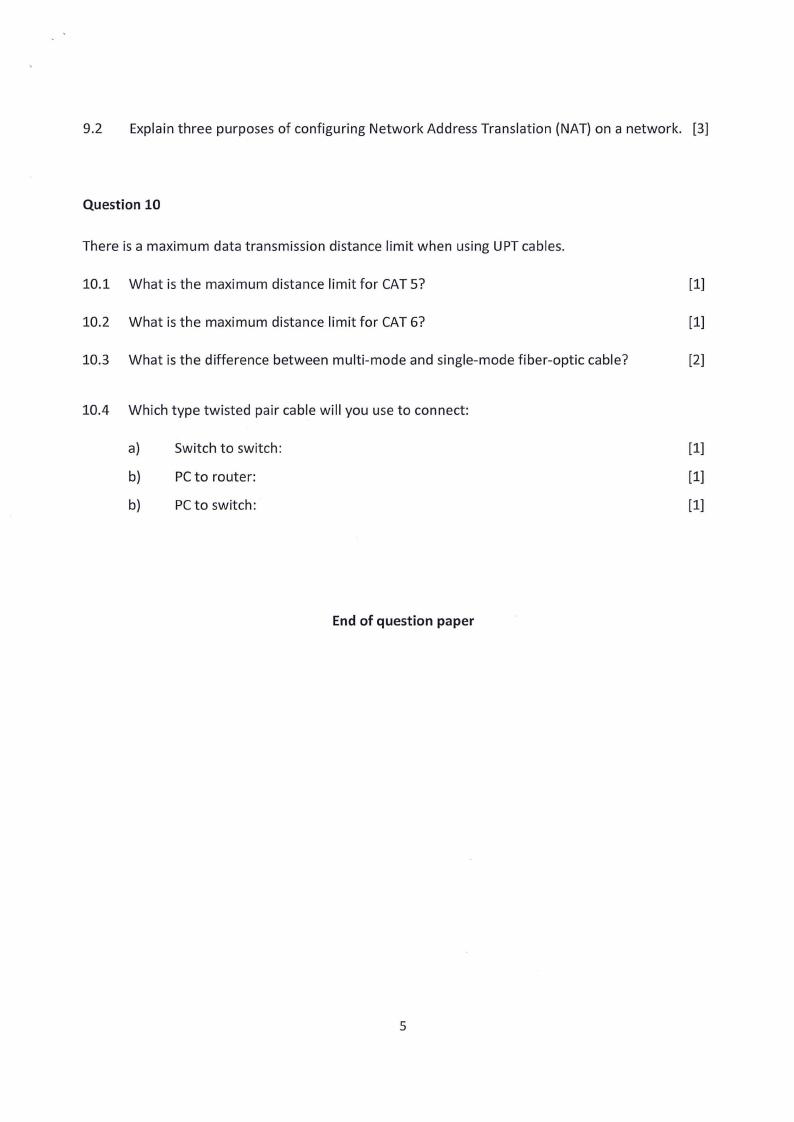

9.2 Explain three purposes of configuring Network Address Translation (NAT) on a network. [3]
Question 10
There is a maximum data transmission distance limit when using UPT cables.
10.1 What is the maximum distance limit for CAT5?
[1]
10.2 What is the maximum distance limit for CAT 6?
[1]
10.3 What is the difference between multi-mode and single-mode fiber-optic cable?
[2]
10.4 Which type twisted pair cable will you use to connect:
a) Switch to switch:
[1]
b)
PCto router:
[1]
b)
PCto switch:
[1]
End of question paper
