IWT711S - INTERNET AND WAN TELE - COMMUNICATION - 2ND OPP - JULY 2023 |
|
|

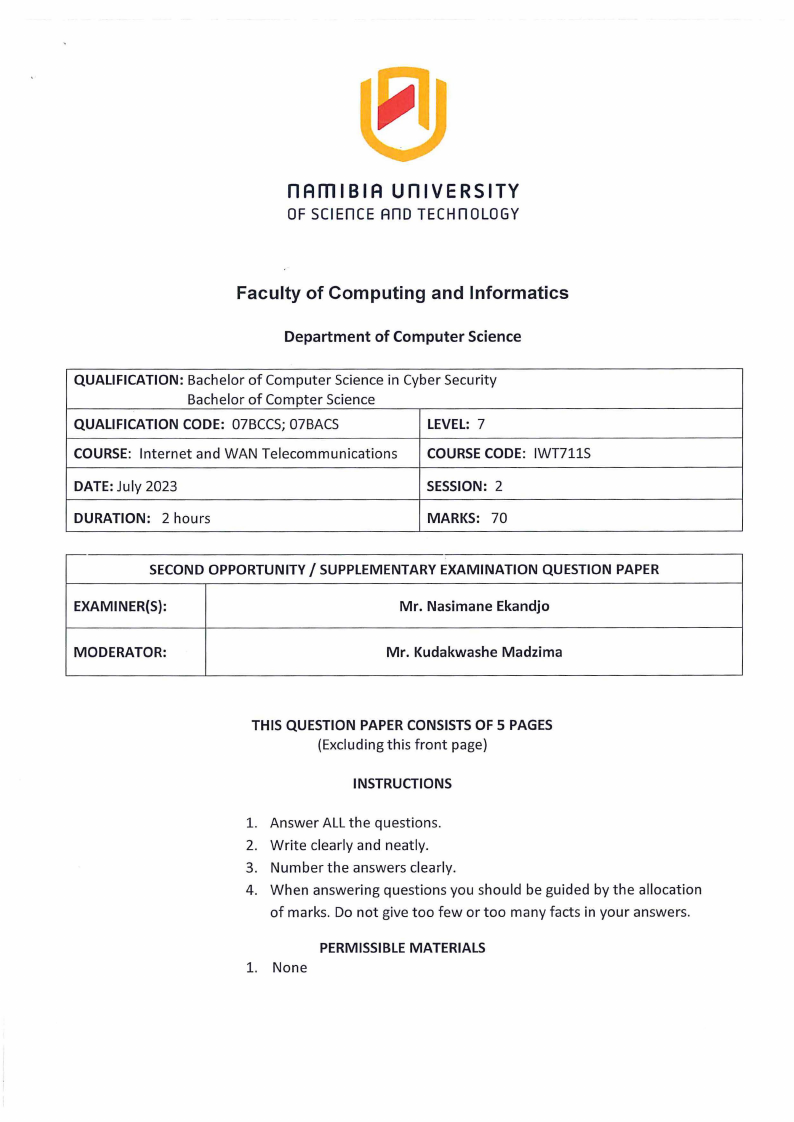

1 Page 1 |
▲back to top |
nAm I BI A un IVE RSITV
OF SCIEnCE Ano TECHnOLOGY
Faculty of Computing and Informatics
Department of Computer Science
QUALIFICATION: Bachelor of Computer Science in Cyber Security
Bachelor of Compter Science
QUALIFICATION CODE: 07BCCS;07BACS
LEVEL: 7
COURSE: Internet and WAN Telecommunications
COURSE CODE: IWT711S
DATE: July 2023
SESSION: 2
DURATION: 2 hours
MARKS: 70
-
SECOND OPPORTUNITY/ SUPPLEMENTARY EXAMINATION QUESTION PAPER
EXAMINER(S):
Mr. Nasimane Ekandjo
MODERATOR:
Mr. Kudakwashe Madzima
THIS QUESTION PAPER CONSISTS OF 5 PAGES
(Excluding this front page)
INSTRUCTIONS
1. Answer ALL the questions.
2. Write clearly and neatly.
3. Number the answers clearly.
4. When answering questions you should be guided by the allocation
of marks. Do not give too few or too many facts in your answers.
PERMISSIBLE MATERIALS
1. None
|
|

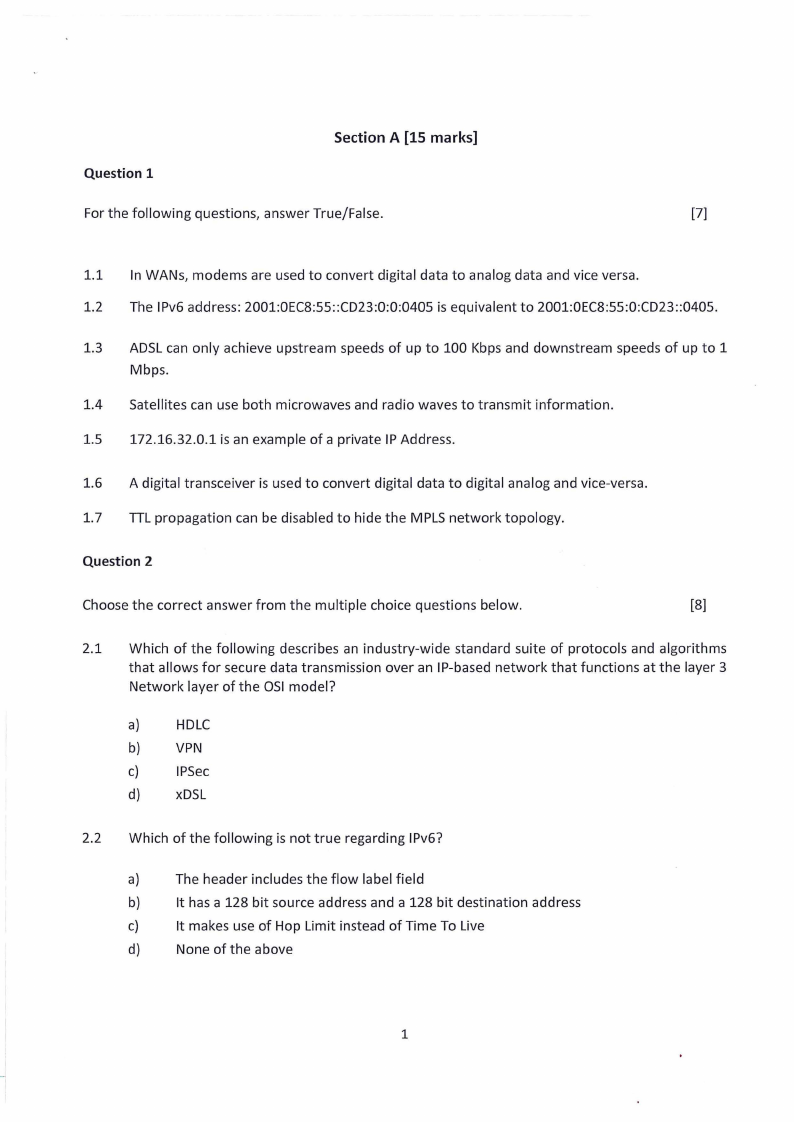

2 Page 2 |
▲back to top |
Question 1
Section A [15 marks]
For the following questions, answer True/False.
[7]
1.1 In WANs, modems are used to convert digital data to analog data and vice versa.
1.2 The IPv6 address: 2001:0EC8:55::CD23:0:0:0405 is equivalent to 2001:0EC8:55:0:CD23::0405.
1.3 ADSL can only achieve upstream speeds of up to 100 Kbps and downstream speeds of up to 1
Mbps.
1.4 Satellites can use both microwaves and radio waves to transmit information.
1.5 172.16.32.0.1 is an example of a private IP Address.
1.6 A digital transceiver is used to convert digital data to digital analog and vice-versa.
1.7 TTL propagation can be disabled to hide the M PLSnetwork topology.
Question 2
Choose the correct answer from the multiple choice questions below.
[8]
2.1 Which of the following describes an industry-wide standard suite of protocols and algorithms
that allows for secure data transmission over an IP-based network that functions at the layer 3
Network layer of the OSI model?
a)
HDLC
b)
VPN
c)
IPSec
d)
xDSL
2.2 Which of the following is not true regarding IPv6?
a)
The header includes the flow label field
b)
It has a 128 bit source address and a 128 bit destination address
c)
It makes use of Hop Limit instead of Time To Live
d)
None of the above
1
|
|

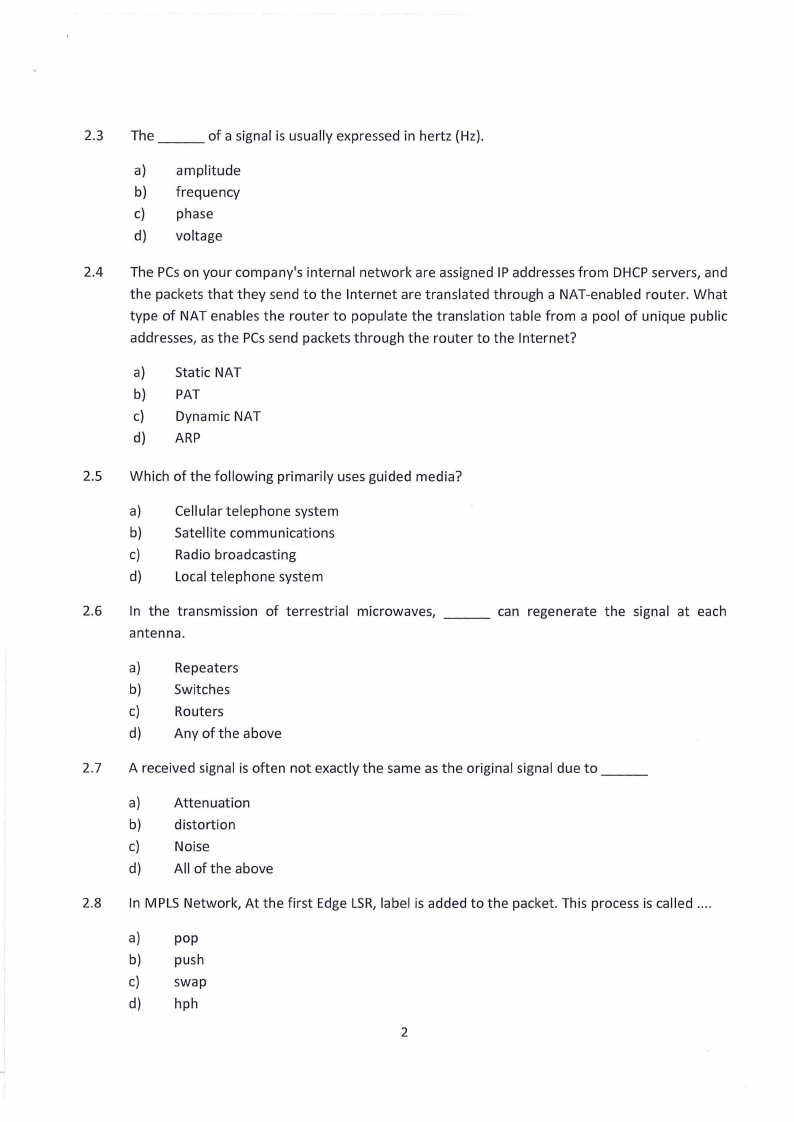

3 Page 3 |
▲back to top |
2.3 The ___ of a signal is usually expressed in hertz (Hz).
a) amplitude
b) frequency
c) phase
d) voltage
2.4 The PCson your company's internal network are assigned IP addresses from DHCPservers, and
the packets that they send to the Internet are translated through a NAT-enabled router. What
type of NAT enables the router to populate the translation table from a pool of unique public
addresses, as the PCssend packets through the router to the Internet?
a) Static NAT
b) PAT
c) Dynamic NAT
d) ARP
2.5 Which of the following primarily uses guided media?
a) Cellular telephone system
b) Satellite communications
c)
Radio broadcasting
d) Local telephone system
2.6 In the transmission of terrestrial microwaves, ___
antenna.
can regenerate the signal at each
a) Repeaters
b) Switches
c)
Routers
d) Any of the above
2.7 A received signal is often not exactly the same as the original signal due to __ _
a) Attenuation
b) distortion
c)
Noise
d) All of the above
2.8 In MPLS Network, At the first Edge LSR,label is added to the packet. This process is called ....
a) pop
b) push
c) swap
d) hph
2
|
|

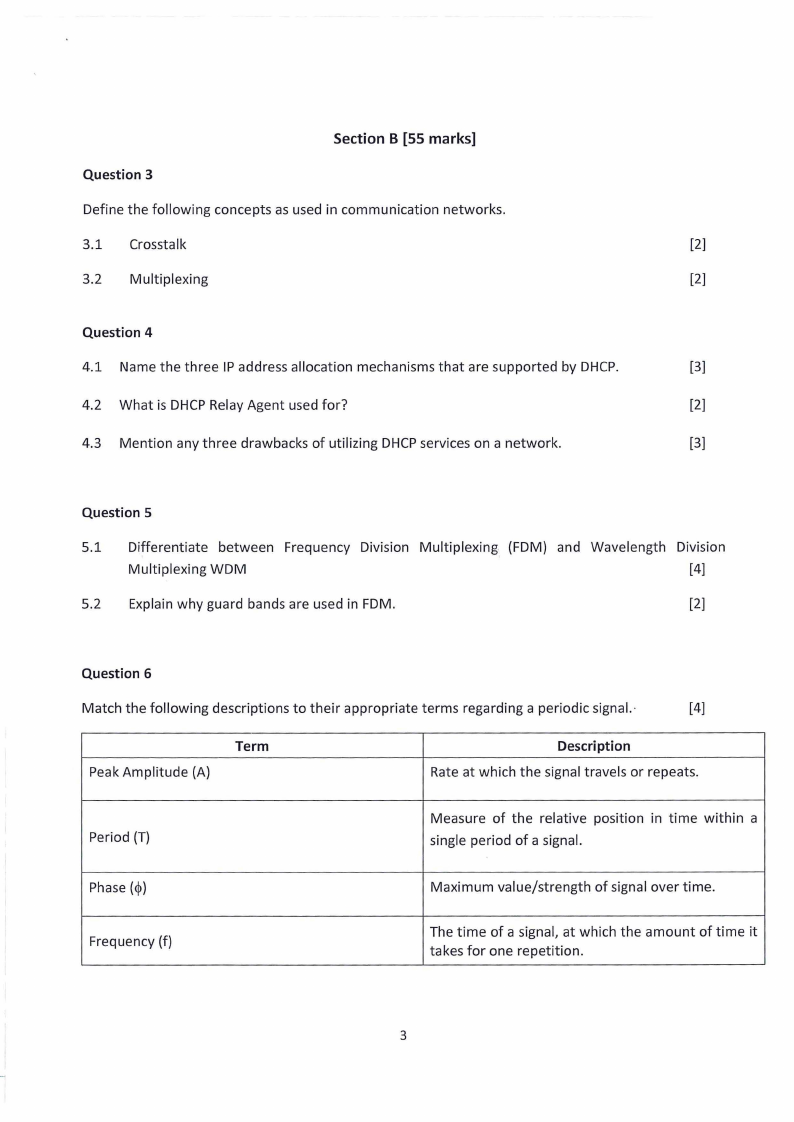

4 Page 4 |
▲back to top |
Section B [55 marks]
Question 3
Define the following concepts as used in communication networks.
3.1 Crosstalk
[2]
3.2 Multiplexing
[2]
Question 4
4.1 Name the three IP address allocation mechanisms that are supported by DHCP.
[3]
4.2 What is DHCP Relay Agent used for?
[2]
4.3 Mention any three drawbacks of utilizing DHCPservices on a network.
[3]
Question 5
5.1 Differentiate between Frequency Division Multiplexing (FDM) and Wavelength Division
Multiplexing WDM
[4]
5.2 Explain why guard bands are used in FDM.
[2]
Question 6
Match the following descriptions to their appropriate terms regarding a periodic signal.·
[ 4]
Peak Amplitude (A)
Term
Description
Rate at which the signal travels or repeats.
Period (T)
Measure of the relative position in time within a
single period of a signal.
Phase($)
Maximum value/strength of signal over time.
Frequency (f)
The time of a signal, at which the amount of time it
takes for one repetition.
3
|
|

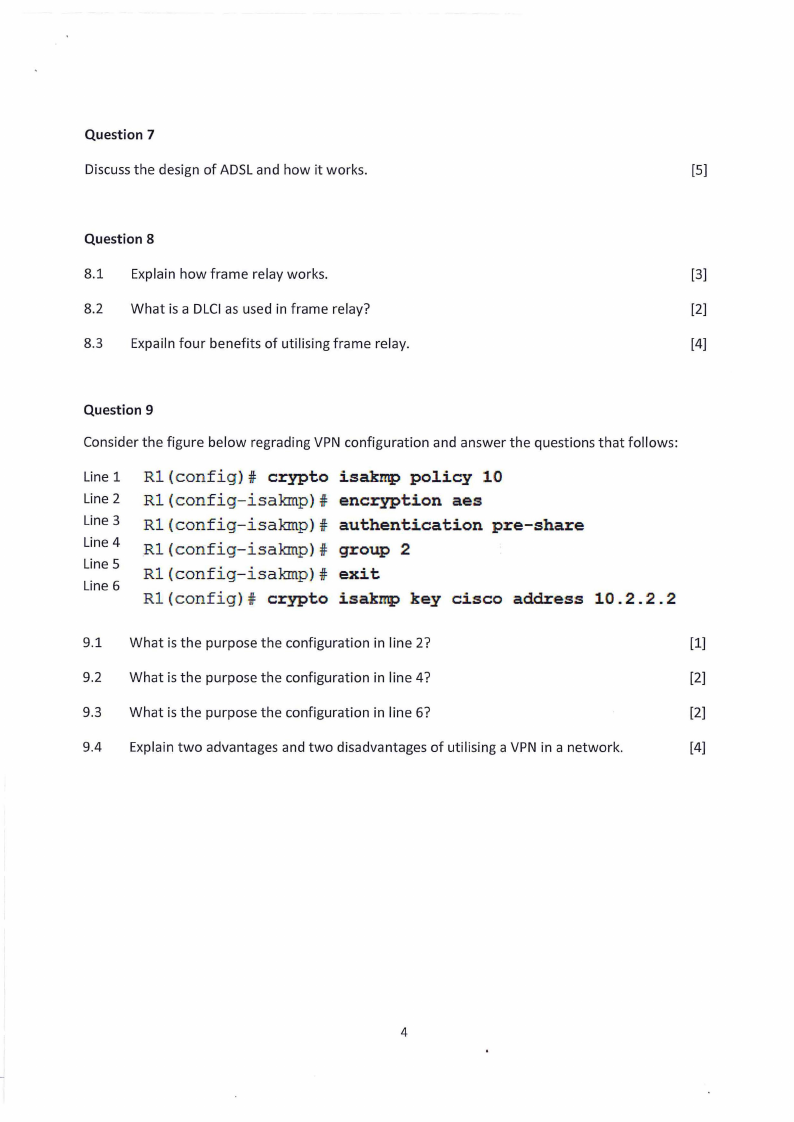

5 Page 5 |
▲back to top |
Question 7
Discuss the design of ADSL and how it works.
[S]
Question 8
8.1 Explain how frame relay works.
[3]
8.2 What is a DLCI as used in frame relay?
[2]
8.3 Expailn four benefits of utilising frame relay.
[4]
Question 9
Consider the figure below regrading VPN configuration and answer the questions that follows:
Line 1
Line 2
Line 3
Line 4
Line 5
Line 6
Rl(config)# crypto
Rl(config-i.saJanp)i
Rl(config-i.saJanp)i
Rl(config-isaJanp)i
Rl(config-isaJanp)#
Rl(config)tf crypto
isakmp policy 10
encryption aes
authentication
pre-share
group 2
exit
isakng;> key cisco address
10.2.2.2
9.1 What is the purpose the configuration in line 2?
[1]
9.2 What is the purpose the configuration in line 4?
[2]
9.3 What is the purpose the configuration in line 6?
[2]
9.4 Explain two advantages and two disadvantages of utilising a VPN in a network.
[4]
4
|
|

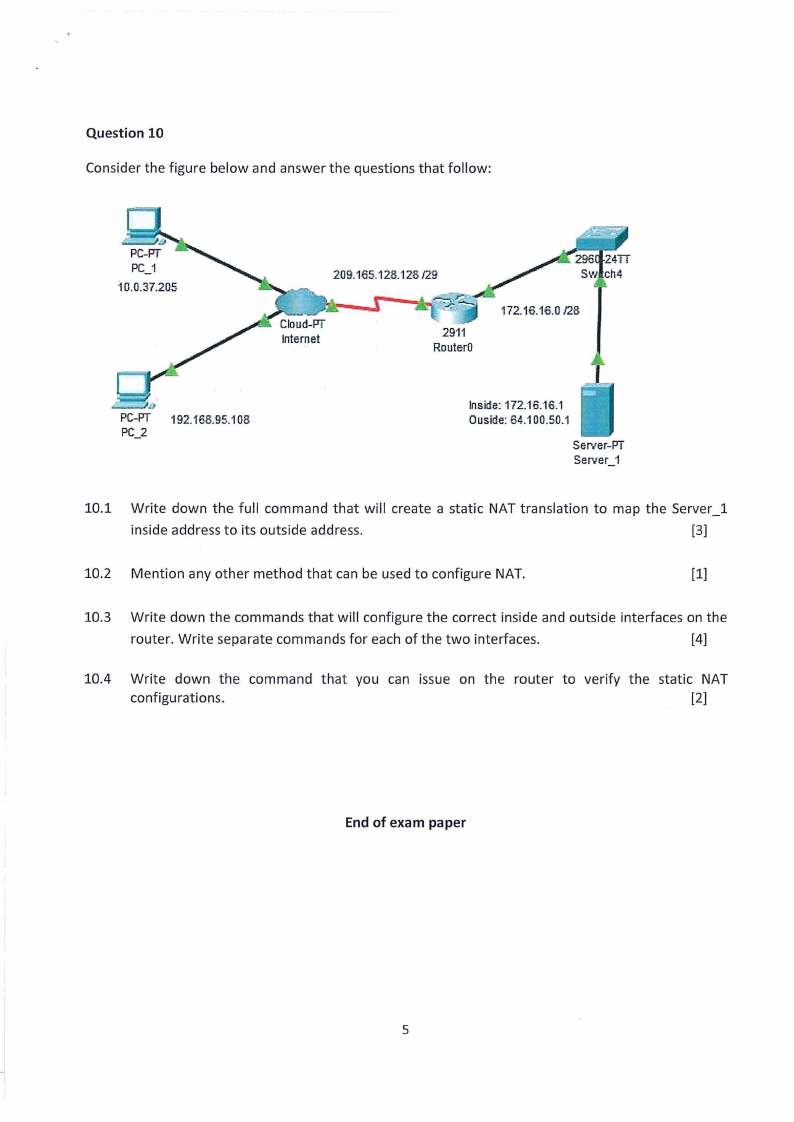

6 Page 6 |
▲back to top |
Question 10
Consider the figure below and answer the questions that follow:
:10.0.37.205
209.165.128:128 /29
Internet
2911
RouterO
172.16.16.0128
-----1.:.i'
PC-PT
PC_2
192.168.'95.108
Inside:172.-16.16.1
Ouside:64.100.50.1
Server-PT
Server_·1
10.1 Write down the full command that will create a static NAT translation to map the Server_l
inside address to its outside address.
[3]
10.2 Mention any other method that can be used to configure NAT.
[1]
10.3 Write down the commands that will configure the correct inside and outside interfaces on the
router. Write separate commands for each of the two interfaces.
[4]
10.4 Write down the command that you can issue on the router to verify the static NAT
configurations.
[2]
End of exam paper
5
